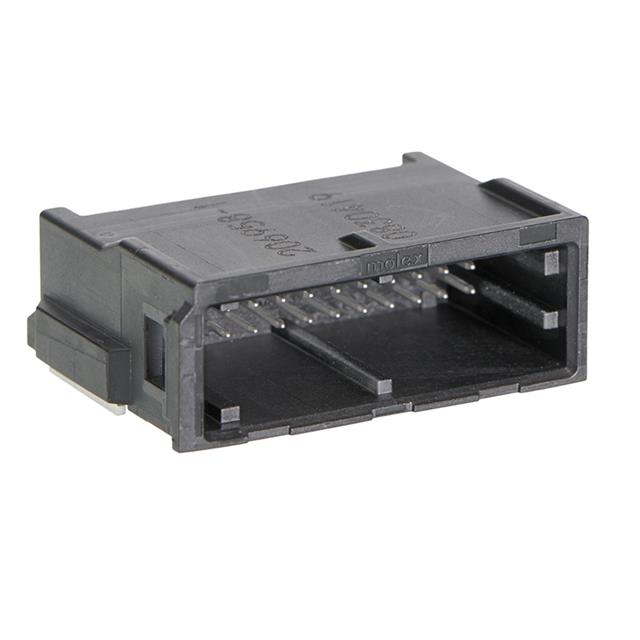

ConnTAK50 Header, Dual Row, Right-Angle, Surface Mount, 22 Circuits / 20 Circuit Usable, Key B, Natural
ConnTAK50 Header, Dual Row, Right-Angle, Surface Mount, 22 Circuits / 20 Circuit Usable, Key B, Natural
ConnTAK50 Header, Dual Row, Right-Angle, Surface Mount, 22 Circuits / 20 Circuit Usable, Key B, Natural

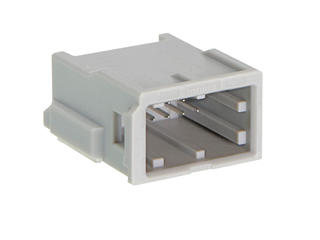

| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating | Contact Material | Number of Positions Loaded | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Connector Type | Number of Rows | Insulation Material | Insulation Color | Contact Length - Mating | Contact Length - Mating | Fastening Type | Style | Contact Type | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Mounting Type | Shrouding | Number of Positions Loaded | Insulation Height | Insulation Height | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||||||||||||
 Molex | -40 °C | 105 ░C | 3 A | 14 VAC/DC | Brass | 20 | 22 positions | 1 µm | 39.4 µin | Square | Header | 2 | Polyamide (PA9T) Nylon 9T Glass Filled | Black | 0.327 in | 8.3 mm | Push-Pull | Board to Cable/Wire | Male Pin | Solder | 1.5 mm | 0.059 in | 10.49 mm | 0.413 in | UL94 V-0 | 0.071 in | 1.8 mm | Surface Mount Right Angle | Shrouded - 4 Wall | ||||
 Molex | -40 °C | 105 ░C | 14 VAC/DC | Brass | 8 | 1 µm | 39.4 µin | Square | Header | 2 | Natural | Latch Holder | Board to Cable/Wire | Male Pin | Solder | 1.5 mm | 0.059 in | 0.071 in | 1.8 mm | Surface Mount Right Angle | Shrouded - 4 Wall | All | 0.431 in | 10.95 mm | Varies by Wire Gauge | ||||||||
