DAC7574 Series

12-Bit Quad Voltage Output Digital-to-Analog Converter w/ I2C Interface

Catalog

12-Bit Quad Voltage Output Digital-to-Analog Converter w/ I2C Interface

Part	Reference Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	INL/DNL (LSB)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Settling Time	Package / Case	Package / Case [x]	Package / Case [x]	Architecture	Number of Bits	Mounting Type	Number of D/A Converters	Data Interface	Number of DAC's	Supplied Contents	Sampling Rate (Per Second)	Utilized IC / Part	DAC Type
Texas Instruments DAC7574IDGS	Supply	10-VSSOP	-40 °C	105 ░C	Voltage - Buffered	±1 ±8	2.7 V	5.5 V	5.5 V	2.7 V	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	String DAC	12 bits	Surface Mount	4	I2C
Texas Instruments DAC7574IDGSRG4	Supply	10-VSSOP	-40 °C	105 ░C	Voltage - Buffered	±1 ±8	2.7 V	5.5 V	5.5 V	2.7 V	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	String DAC	12 bits	Surface Mount	4	I2C

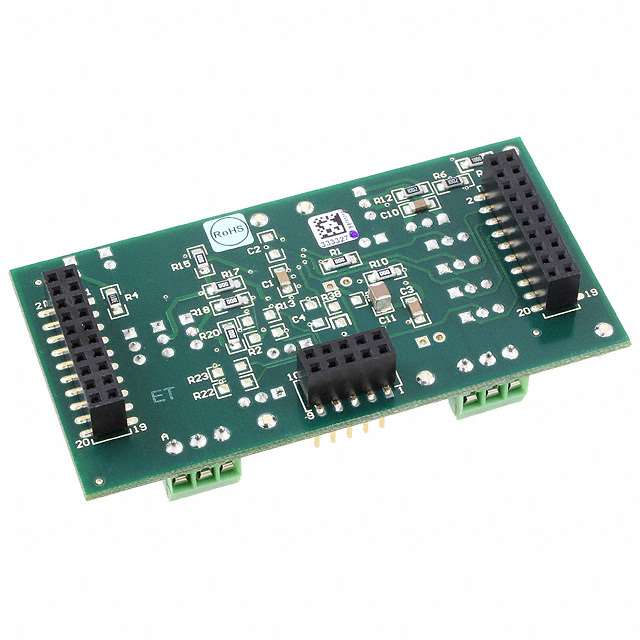

Texas Instruments DAC7574EVM											8 µs					12 bits			I2C	4	Board(s)	188 k per second	DAC7574	Voltage
Texas Instruments DAC7574IDGSG4	Supply	10-VSSOP	-40 °C	105 ░C	Voltage - Buffered	±1 ±8	2.7 V	5.5 V	5.5 V	2.7 V	10 µs	10-MSOP 10-TFSOP	3 mm	0.118 in	String DAC	12 bits	Surface Mount	4	I2C

Catalog

12-Bit Quad Voltage Output Digital-to-Analog Converter w/ I2C Interface

Key Features

• Micropower Operation: 600 µA at 5 V VDDPower-On Reset to Zero+2.7 V to +5.5 V Analog Power Supply12-Bit MonotonicI2C™ Interface Up to 3.4 MbpsData Transmit CapabilityOn-Chip Output Buffer Amplifier, Rail-to-Rail OperationDouble-Buffered Input RegisterAddress Support for up to Four DAC7574sSynchronous Update Support for up to 16 ChannelsOperation From –40°C to 105°CSmall 10 Lead MSOP PackageAPPLICATIONSProcess ControlData Acquisition SystemsClosed-Loop Servo ControlPC PeripheralsPortable InstrumentationI2C is a trademark of Philips Corporation.Micropower Operation: 600 µA at 5 V VDDPower-On Reset to Zero+2.7 V to +5.5 V Analog Power Supply12-Bit MonotonicI2C™ Interface Up to 3.4 MbpsData Transmit CapabilityOn-Chip Output Buffer Amplifier, Rail-to-Rail OperationDouble-Buffered Input RegisterAddress Support for up to Four DAC7574sSynchronous Update Support for up to 16 ChannelsOperation From –40°C to 105°CSmall 10 Lead MSOP PackageAPPLICATIONSProcess ControlData Acquisition SystemsClosed-Loop Servo ControlPC PeripheralsPortable InstrumentationI2C is a trademark of Philips Corporation.

Description

The DAC7574 is a low-power, quad channel, 12-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7574 utilizes an I2C compatible two wire serial interface supporting high-speed interface mode with address support of up to four DAC7574s for a total of 16 channels on the bus. The DAC7574 uses VDDand GND to set the output range of the DAC. The DAC7574 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place to the device. The DAC7574 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V. The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3mW at VDD= 5 V reducing to 1 µW in power-down mode. The DAC7574 is available in a 10-lead MSOP package. The DAC7574 is a low-power, quad channel, 12-bit buffered voltage output DAC. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7574 utilizes an I2C compatible two wire serial interface supporting high-speed interface mode with address support of up to four DAC7574s for a total of 16 channels on the bus. The DAC7574 uses VDDand GND to set the output range of the DAC. The DAC7574 incorporates a power-on-reset circuit that ensures that the DAC output powers up at zero volts and remains there until a valid write takes place to the device. The DAC7574 contains a power-down feature, accessed via the internal control register, that reduces the current consumption of the device to 200 nA at 5 V. The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is less than 3mW at VDD= 5 V reducing to 1 µW in power-down mode. The DAC7574 is available in a 10-lead MSOP package.
