TSJW-5.2 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Material	Mounting Type	Circuit	Switch Function	Termination Style	Contact Rating @ Voltage	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Actuator Type	Features	Outline [y]	Outline [x]	Actuator Orientation	Operating Force
E-Switch TSJW-5.2-180-TR	Silicone Rubber	Surface Mount	SPST-NO	Off-Mom	J Lead	0.05 A 12 VDC	Non-Illuminated	-20 ░C	70 °C	5.2 mm	Standard	Washable	6.2 mm	6.3 mm	Top Actuated
E-Switch TSJW-5.2-260-B	Silicone Rubber	Surface Mount	SPST-NO	Off-Mom	J Lead	0.05 A 12 VDC	Non-Illuminated	-20 ░C	70 °C	5.2 mm	Standard	Washable	6.2 mm	6.3 mm	Top Actuated

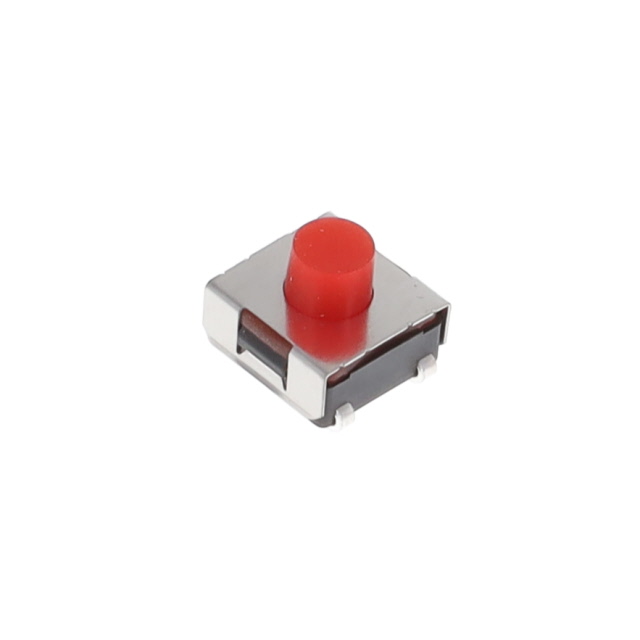

E-Switch TSJW-5.2-260-TR	Silicone Rubber	Surface Mount	SPST-NO	Off-Mom	J Lead	0.05 A 12 VDC	Non-Illuminated	-20 ░C	70 °C	5.2 mm	Standard	Washable	6.2 mm	6.3 mm	Top Actuated	260 gf
