ELF-21 Series

Catalog

CMC 3.5A 2LN TH

Part	Number of Lines	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Package / Case	Height (Max) [Max]	Height (Max)	Size / Dimension [x]	Size / Dimension [y]	Height (Max)

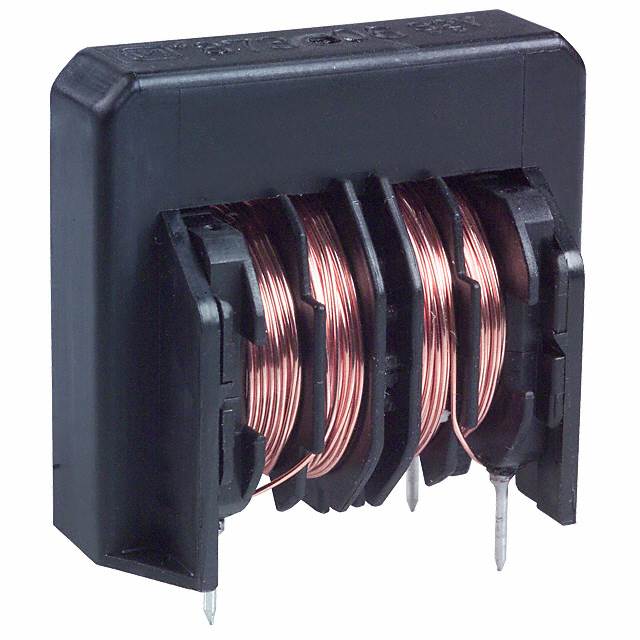

Panasonic Industrial Automation Sales ELF-21N035A	2	44 mOhm	3.5 A	0.787 in 20 mm	1.26 in 32 mm	Through Hole	4 Lead	Vertical	1.181 in	30 mm
Panasonic Industrial Automation Sales ELF-21N020A	2	134 mOhm	2 A	0.787 in 20 mm	1.26 in 32 mm	Through Hole	4 Lead	Vertical	1.181 in	30 mm
Panasonic Industrial Automation Sales ELF-21N018A	2	160 mOhm	1.8 A	0.787 in 20 mm	1.26 in 32 mm	Through Hole	4 Lead	Vertical	1.181 in	30 mm
Panasonic Industrial Automation Sales ELF-21N013A	2	317 mOhm	1.3 A	0.787 in 20 mm	1.26 in 32 mm	Through Hole	4 Lead	Vertical	1.181 in	30 mm

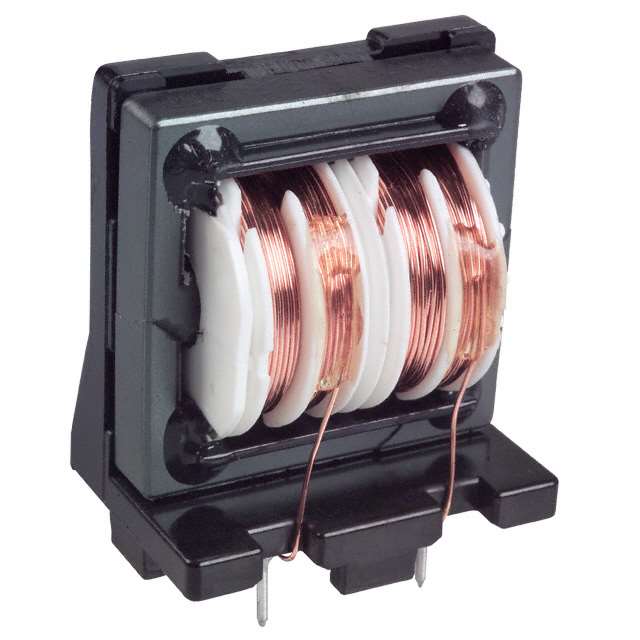

Panasonic Industrial Automation Sales ELF-21V020A	2	147 mOhm	2 A	29 mm	21 mm	Through Hole	4 Lead	Vertical		35.5 mm	1.142 in	0.827 "	1.398 in
Panasonic Industrial Automation Sales ELF-21V007A	2	1.212 Ohm	700 mA	29 mm	21 mm	Through Hole	4 Lead	Vertical		35.5 mm	1.142 in	0.827 "	1.398 in
Panasonic Industrial Automation Sales ELF-21N022A	2	111 mOhm	2.2 A	0.787 in 20 mm	1.26 in 32 mm	Through Hole	4 Lead	Vertical	1.181 in	30 mm
