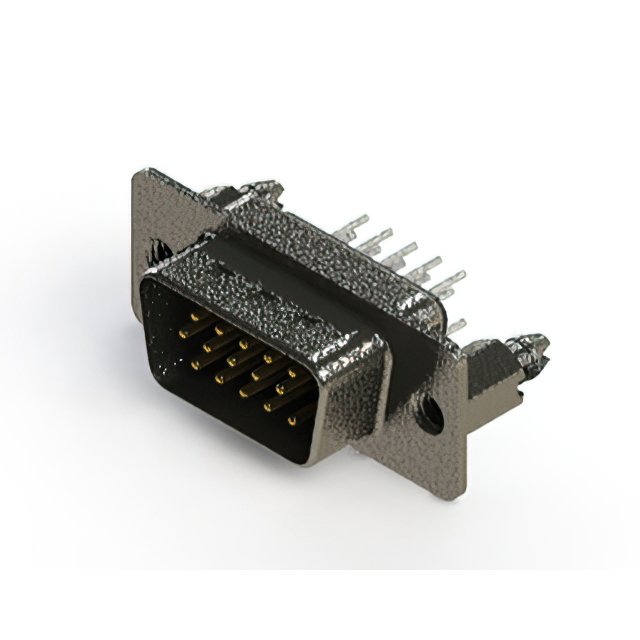

637-015 Series
Manufacturer: EDAC Inc.
Catalog

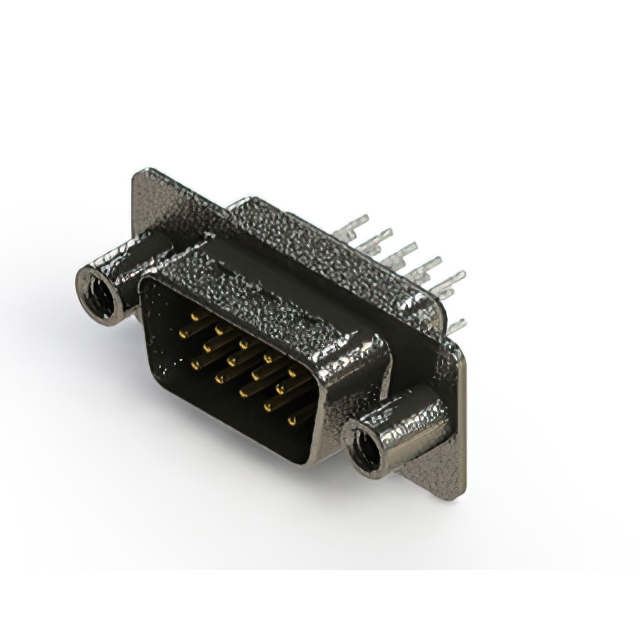

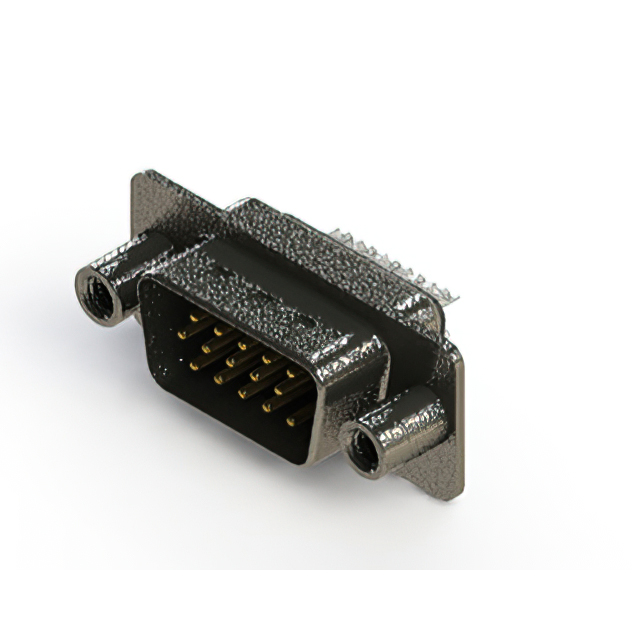

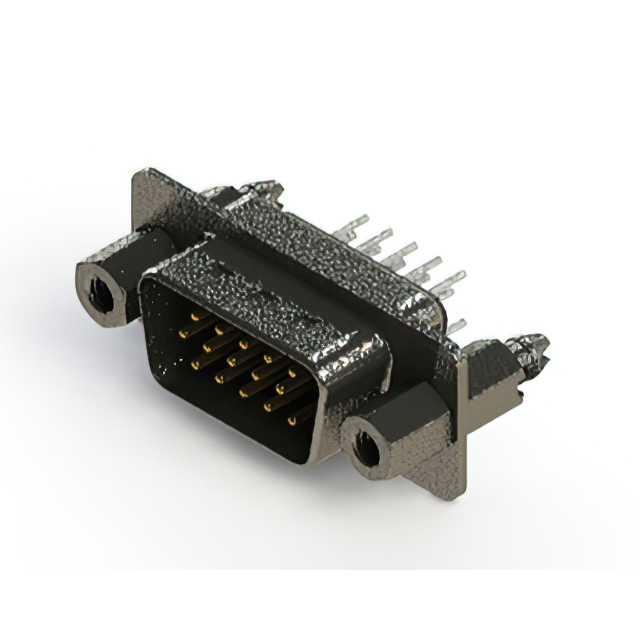

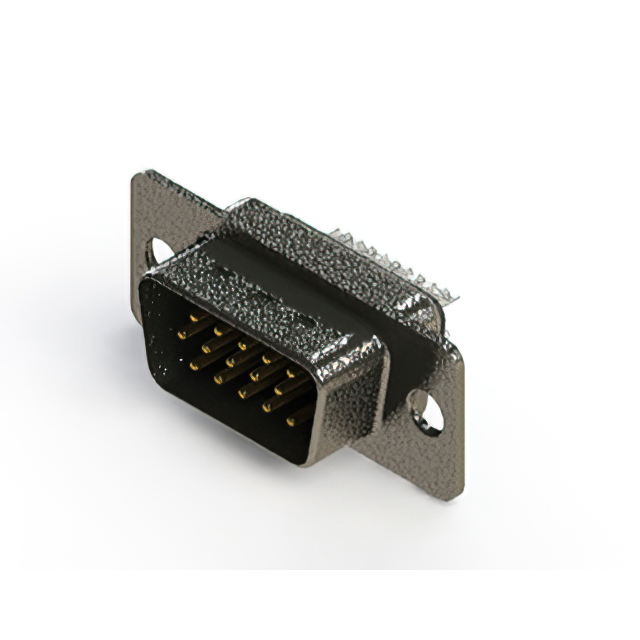

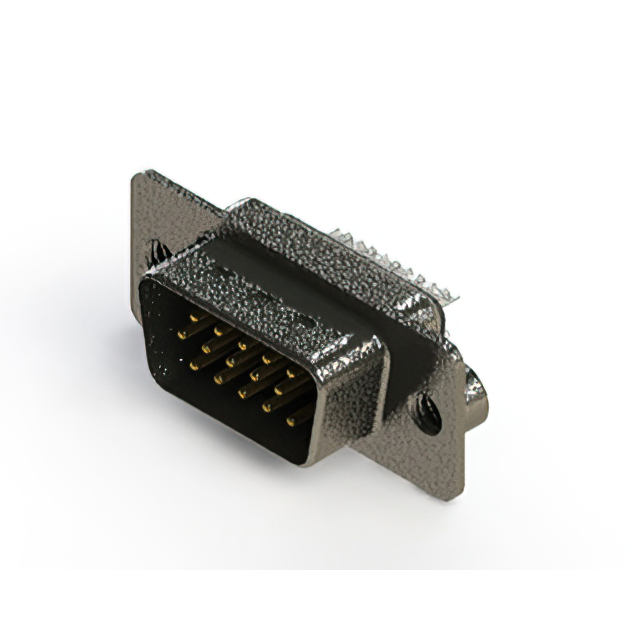

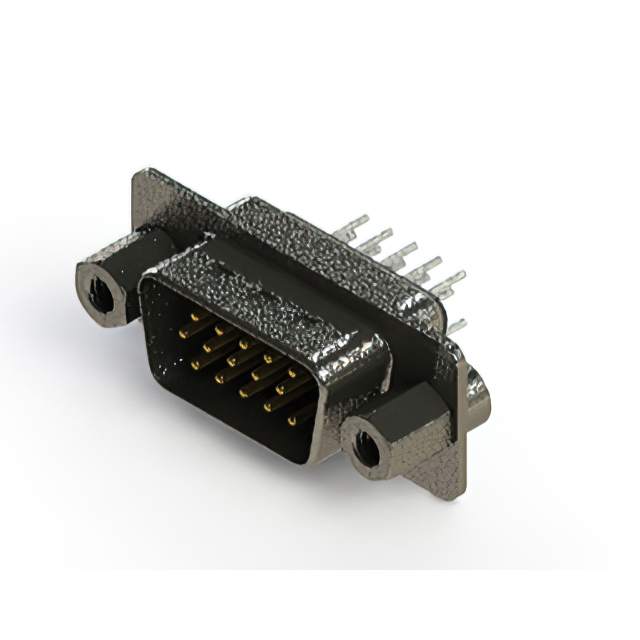

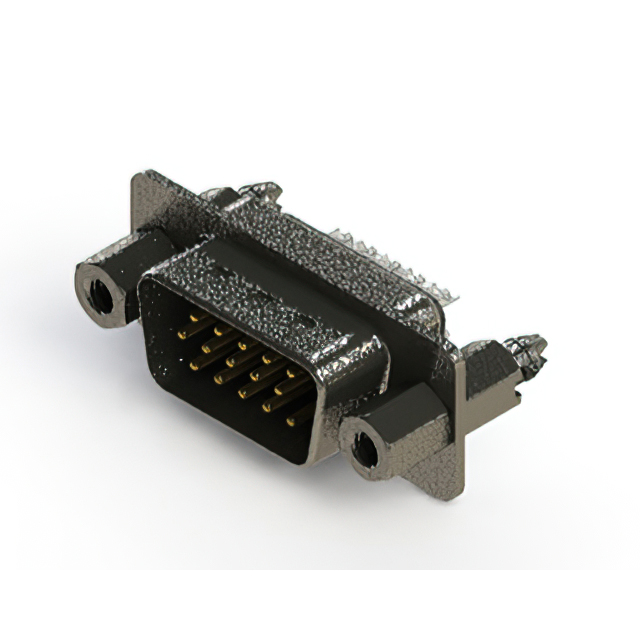

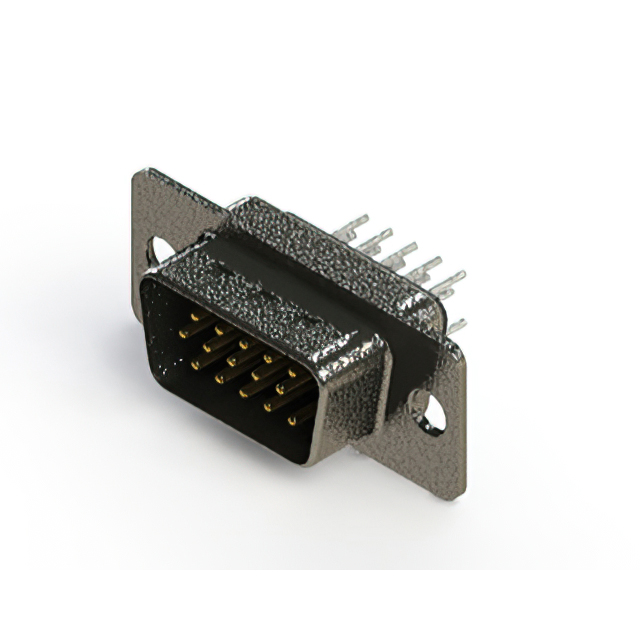

D SUB CONNECTOR, HIGH DENSITY, PLUG, 637 SERIES, 15 CONTACTS, DE, SOLDER CUP
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Material Flammability Rating | Flange Feature | Features | Mounting Type | Number of Rows [custom] | Number of Positions | Contact Finish | Connector Style | Shell Material, Finish | Current Rating (Amps) | Connector Type | Contact Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | Flash | UL94 V-0 | 4-40 | Board Lock Grounding Indents Shielded | Free Hanging (In-Line) | 3 | 15 | Gold | D-Sub High Density | Nickel Plated Steel | 3 A | Plug Male Pins | Signal | ||||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | Flash | UL94 V-0 | 4-40 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | 3 | 15 | Gold | D-Sub High Density | 3 A | Plug Male Pins | Signal | Solder | ||||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | UL94 V-0 | 4-40 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | 3 | 15 | Gold | D-Sub High Density | Nickel Plated Steel | 3 A | Plug Male Pins | Signal | Solder | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | UL94 V-0 | Housing/Shell (Unthreaded) | Grounding Indents Shielded | Panel Mount Through Hole | 3 | 15 | Gold | D-Sub High Density | Nickel Plated Steel | 3 A | Plug Male Pins | Signal | Solder | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | UL94 V-0 | Housing/Shell | Grounding Indents Shielded | Free Hanging (In-Line) | 3 | 15 | Gold | D-Sub High Density | 3 A | Plug Male Pins | Signal | 15 µin | 0.38 µm | 4-40 | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | UL94 V-0 | Board Side (4-40) | Grounding Indents Shielded | Panel Mount Through Hole | 3 | 15 | Gold | D-Sub High Density | 3 A | Plug Male Pins | Signal | Solder | 15 µin | 0.38 µm | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | Flash | UL94 V-0 | 4-40 | Grounding Indents Shielded | Free Hanging (In-Line) | 3 | 15 | Gold | D-Sub High Density | 3 A | Plug Male Pins | Signal | |||||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | Flash | UL94 V-0 | Board Side (4-40) | Grounding Indents Shielded | Free Hanging (In-Line) | 3 | 15 | Gold | D-Sub High Density | Nickel Plated Steel | 3 A | Plug Male Pins | Signal | ||||
 EDAC Inc. | -55 C | 85 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | UL94 V-0 | 4-40 | Grounding Indents Shielded | Free Hanging (In-Line) | 3 | 15 | Gold | D-Sub High Density | Nickel Plated Steel | 3 A | Plug Male Pins | Signal | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | -55 C | 125 °C | Black | Polyester Thermoplastic | Brass | (DE E) High Density | 1 | Flash | UL94 V-0 | 4-40 Mating Side Female Screwlock | Grounding Indents Shielded | Panel Mount Through Hole | 3 | 15 | Gold | D-Sub High Density | 3 A | Plug Male Pins | Signal | Solder |
