CHM-14 Series

Catalog

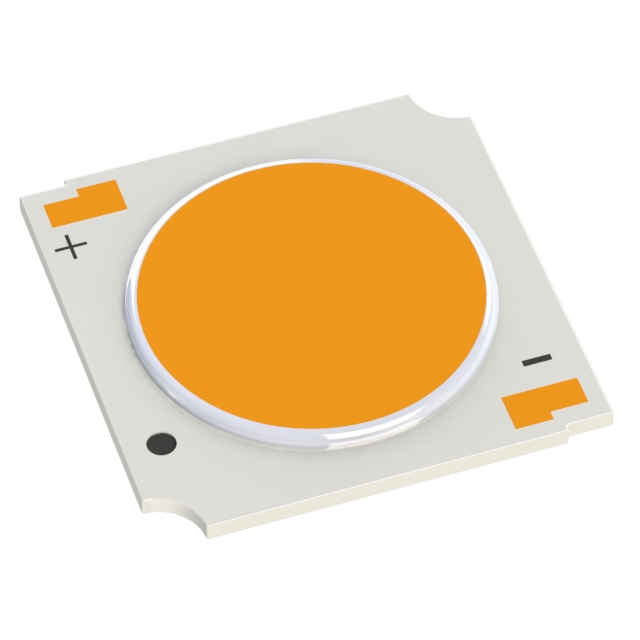

LED COB CHM14 WARM WHT SQ 3000K

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Test	CCT (K)	CCT (K)	Current - Max [Max]	Color	Luminous Flux @ Current/Temperature	Configuration	Temperature - Test	Lens Type	Type	Light Emitting Surface (LES) [diameter]	Height [z]	Lumens/Watt @ Current - Test	Viewing Angle	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)
Luminus Devices Inc. CHM-14-30-90-36-AC00-F2-3	19 mm	19 mm	720 mA	3-Step MacAdam Ellipse	3000 K	1.44 A	Warm White	2470 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	98 lm/W	120 °	90	35 V
Luminus Devices Inc. CHM-14-27-95-36-AC00-F2-2	19 mm	19 mm	720 mA	2-Step MacAdam Ellipse	2700 K	1.44 A	Warm White	2020 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	80 lm/W	120 °	95	35 V
Luminus Devices Inc. CHM-14-50-80-36-XH00-F2-5	21.5 mm	21.5 mm	1.68 A	5-Step MacAdam Ellipse	5000 K	2.52 A	Cool White	6570 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	109 lm/W	120 °	80	36 V
Luminus Devices Inc. CHM-14-40-80-36-AA00-F2-3			720 mA	3-Step MacAdam Ellipse	4000 K	1.44 A	Neutral White	3000 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	119 lm/W	120 °	80	35 V
Luminus Devices Inc. CHM-14-30-80-36-XH22-F3-3	28 mm	28 mm	1.75 A	3-Step MacAdam Ellipse	3000 K	2.625 A	Warm White	7630 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	118 lm/W	120 °	80	37.1 V
Luminus Devices Inc. CHM-14-40-70-36-AC10-F3-3	19 mm	19 mm	720 mA	3-Step MacAdam Ellipse	3500 K	1.44 A	Warm White	3675 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	144 lm/W	120 °	70	35.5 V
Luminus Devices Inc. CHM-14-35-90-36-AC10-F3-3	19 mm	19 mm	720 mA	3-Step MacAdam Ellipse	3500 K	1.44 A	Warm White	2800 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	110 lm/W	120 °	90	35.5 V
Luminus Devices Inc. CHM-14-40-95-36-XH20-F3-3	28 mm	28 mm	720 mA	3-Step MacAdam Ellipse	4000 K	2.625 A	Neutral White	5985 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	104 lm/W	120 °	95	37.1 V
Luminus Devices Inc. CHM-14-27-80-36-XH00-F2-3	21.5 mm	21.5 mm	1.68 A	3-Step MacAdam Ellipse	2700 K	2.52 A	Warm White	5680 lm	Square	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	94 lm/W	120 °	80	36 V
Luminus Devices Inc. CHM-14-30-90-36-AA02-F2-3			720 mA	3-Step MacAdam Ellipse	3000 K	1.09 A	Warm White	2265 lm	Rectangle	85 °C	Flat	Chip On Board (COB)	13.5 mm	1.37 mm	90 lm/W	120 °	90	35 V
