27016 Series

Catalog

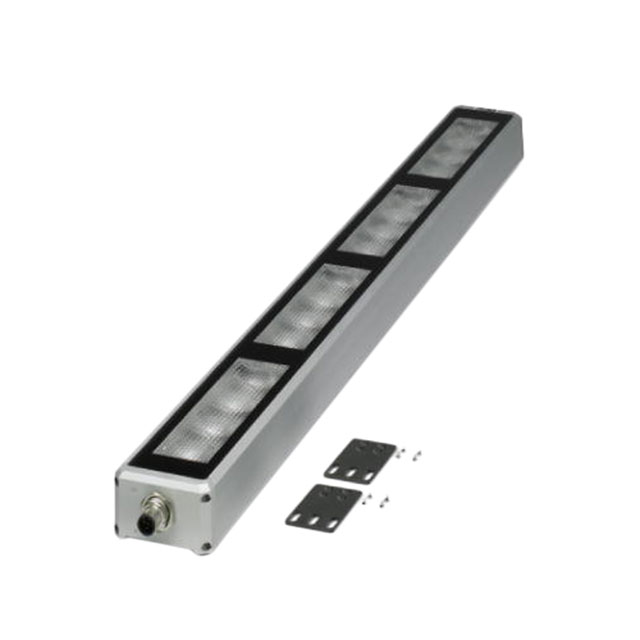

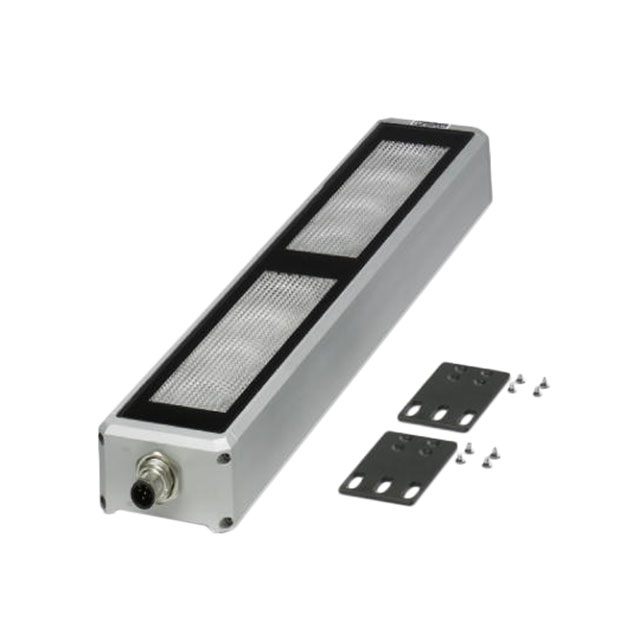

LED MOD COOL WHT RECT 5000K

Part	Height	Current - Test	Temperature - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Viewing Angle	Type	Features	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Color	Lens Type	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature
Phoenix Contact 2701693	35 mm	750 mA	55 °C	18 lm/W	80	100 °	LED Module	With Connector	365 mm	60 mm	5000 K	Cool White	Flat	24 V	Rectangle	930 lm
Phoenix Contact 2701691	35 mm	920 mA	55 °C	64 lm/W	80	50 °	LED Module	With Connector	695 mm	60 mm	5000 K	Cool White	Flat	24 V	Rectangle	1410 lm
Phoenix Contact 2701690	35 mm	460 mA	55 °C	41 lm/W	80	50 °	LED Module	With Connector	365 mm	60 mm	5000 K	Cool White	Flat	24 V	Rectangle	450 lm
