9886 Series
Manufacturer: Belden Inc.
Beta
⌘K

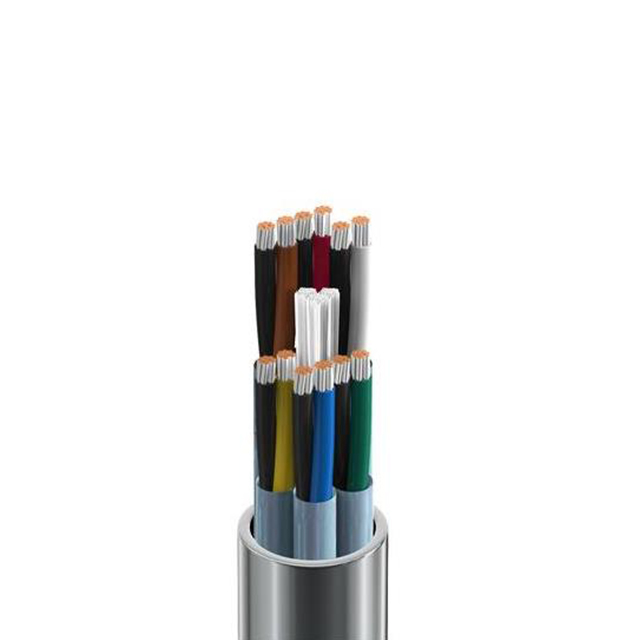

MULTI-PAIR 12COND 20AWG
| Part | Shield Material | Shield Coverage | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Features | Wire Gauge | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket Color | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Multi-Pair | 1.143 mm | 0.045 in | Drain Wire | 20 AWG | 12 | 10 | 30 AWG | Audio Control Instrumentation | 80 °C | -40 C | Foil | High Density Polyethylene (HDPE) | 11.56 mm | 0.455 in | Copper Tinned | Black | Polypropylene (PP) | 304.8 m | 1000 ft |
Belden Inc. | Aluminum | 100 % | Multi-Pair | 1.143 mm | 0.045 in | Drain Wire | 20 AWG | 12 | 10 | 30 AWG | Audio Control Instrumentation | 80 °C | -40 C | Foil | High Density Polyethylene (HDPE) | 11.56 mm | 0.455 in | Copper Tinned | Black | Polypropylene (PP) | 152.4 m | 500 ft |
