EDNF18 Series

Catalog

STRONGHOLD FEMALE DISCONNECT, NY

Part	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Features	Terminal Type	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Length - Overall [x]	Length - Overall	Tab Thickness	Tab Thickness	Termination	Insulation	Tab Width	Tab Width	Gender	Color	Length - Overall [x]

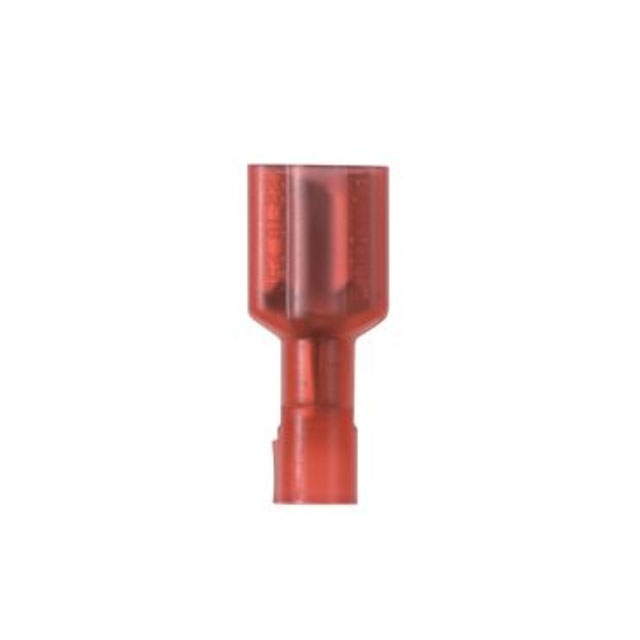

Panduit Corp EDNF18-250FIB-Q	22 AWG	17.5 AWG	Free Hanging (In-Line)	Butted Seam	Standard	Tin	3.45 mm	0.136 in	Brass	0.84 in	21.34 mm	0.032 in	0.81 mm	Crimp	Fully Insulated	6.35 mm	0.25 in	Female	Red

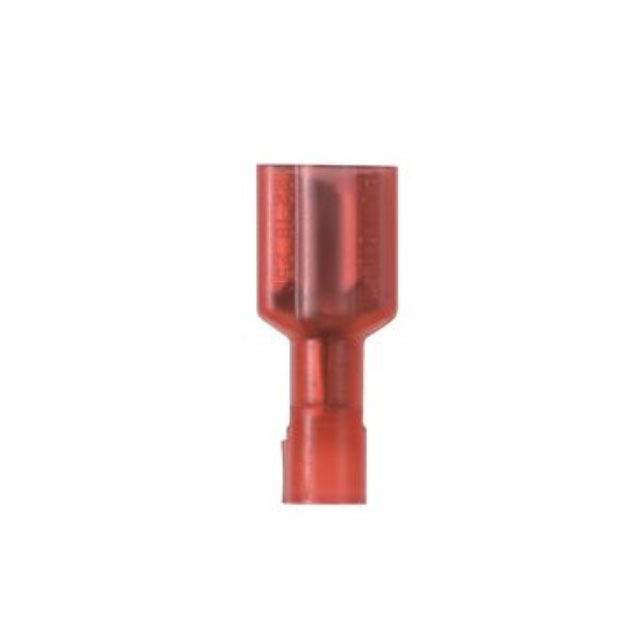

Panduit Corp EDNF18-188FIB-Q	22 AWG	17.5 AWG	Free Hanging (In-Line)	Butted Seam	Standard	Tin	3.45 mm	0.136 in	Brass	0.78 in		0.02 "	0.51 mm	Crimp	Fully Insulated	4.75 mm	0.187 in	Female	Red	19.81 mm
Panduit Corp EDNF18-188FIB-L	22 AWG	17.5 AWG	Free Hanging (In-Line)	Butted Seam	Standard	Tin	3.45 mm	0.136 in	Brass	0.78 in		0.02 "	0.51 mm	Crimp	Fully Insulated	4.75 mm	0.187 in	Female	Red	19.81 mm
