6002-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .020-.032 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter	Socket Depth	Socket Depth	Contact Finish	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Termination
Mill-Max Manufacturing Corp. 6002-0-19-01-15-27-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	30 Áin	0.76 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder

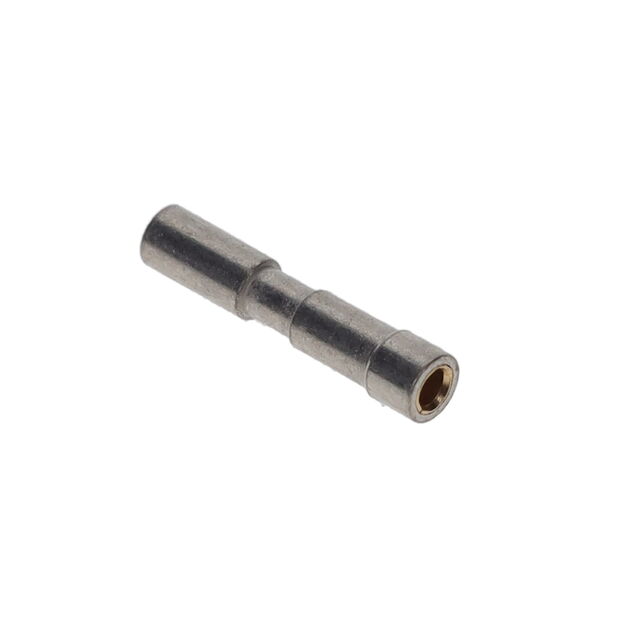

Mill-Max Manufacturing Corp. 6002-0-19-80-15-27-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	30 Áin	0.76 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder

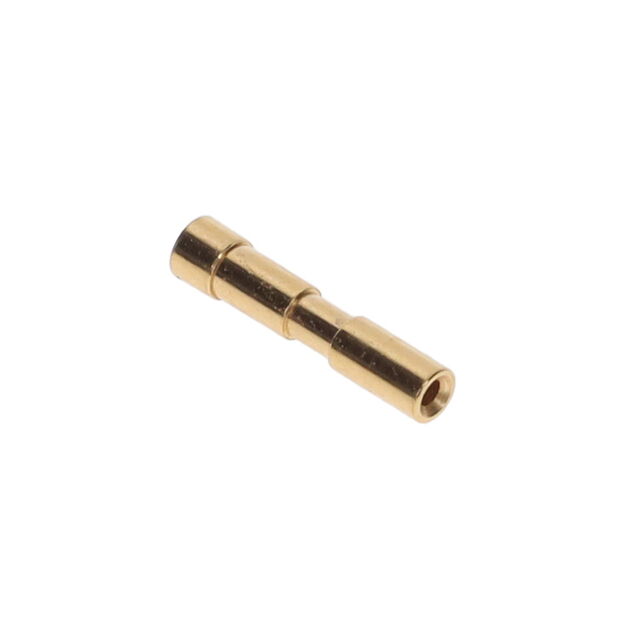

Mill-Max Manufacturing Corp. 6002-0-19-15-15-14-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	10 Áin	0.25 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder

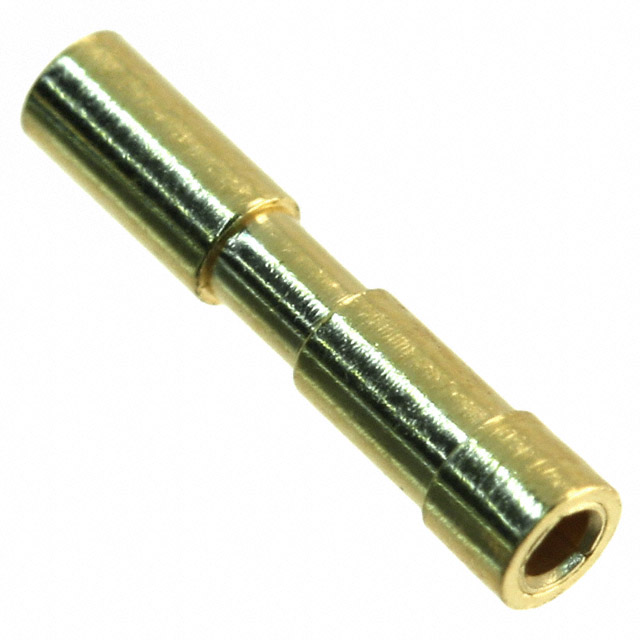

Mill-Max Manufacturing Corp. 6002-0-19-15-15-27-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	30 Áin	0.76 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder
Mill-Max Manufacturing Corp. 6002-0-19-80-15-14-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	10 Áin	0.25 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder
Mill-Max Manufacturing Corp. 6002-0-19-01-15-01-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Tin-Lead	No Tail	200 Áin	5.08 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder
Mill-Max Manufacturing Corp. 6002-0-19-01-15-14-10-0	-55 C	125 °C	0.064 "	1.63 mm	Beryllium Copper	0.059 in	1.5 mm	3.18 mm	0.125 in	Gold	No Tail	10 Áin	0.25 Ám	0.31 in	7.87 mm	0.047 in	1.19 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder
