1655-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

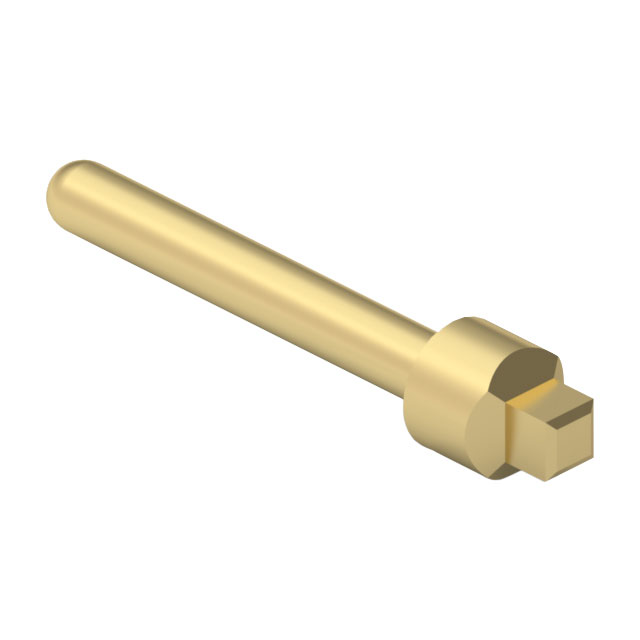

STANDARD I.C. PIN
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter | Mounting Hole Diameter | Terminal Type | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Contact Material | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 7.24 mm | 0.285 " | 0.04 in | 1.02 mm | 200 Áin | 5.08 Ám | 1.3 mm | 0.051 in | PC Pin | Non-Insulated | 0.89 mm | 0.035 in | Through Hole | Brass Alloy | Single End | 0.81 mm | 0.032 " | Press-Fit | Tin | 0.072 " | 1.83 mm | 0.372 in | 9.45 mm |
 Mill-Max Manufacturing Corp. | 7.24 mm | 0.285 " | 0.04 in | 1.02 mm | 10 Áin | 0.25 Ám | 1.3 mm | 0.051 in | PC Pin | Non-Insulated | 0.89 mm | 0.035 in | Through Hole | Brass Alloy | Single End | 0.81 mm | 0.032 " | Press-Fit | Gold | 0.072 " | 1.83 mm | 0.372 in | 9.45 mm |
