78394 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

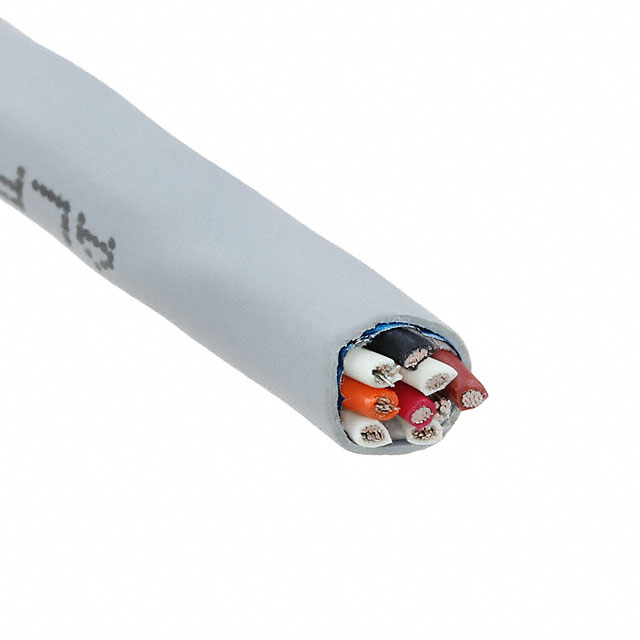

MULTI-PAIR 8CON 20AWG SLATE 100'
| Part | Shield Coverage | Shield Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Conductor Material | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Number of Conductors | Voltage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | ISO 10993 UL Style 21460 | 80 °C | -40 C | 100 ft | 30.5 m | Copper Tinned | Multi-Pair | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 8 | 300 VDC | Slate | 0.279 in | 7.09 mm | Braid Foil | 19 | 32 AWG | Biological Compatibility Drain Wire Rip Cord | 20 AWG | Polyphenylene Ether Modified (mPPE) |
