A3RRB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - APR50B/AE50M/APR50B

Part	Connector Type	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Shielding	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Number of Positions	Color	Contact Finish	Number of Positions [custom]	Length	Length	Length

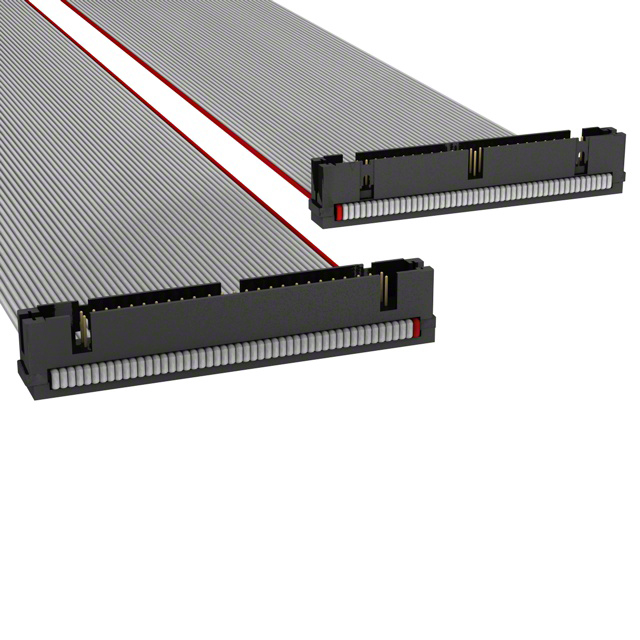

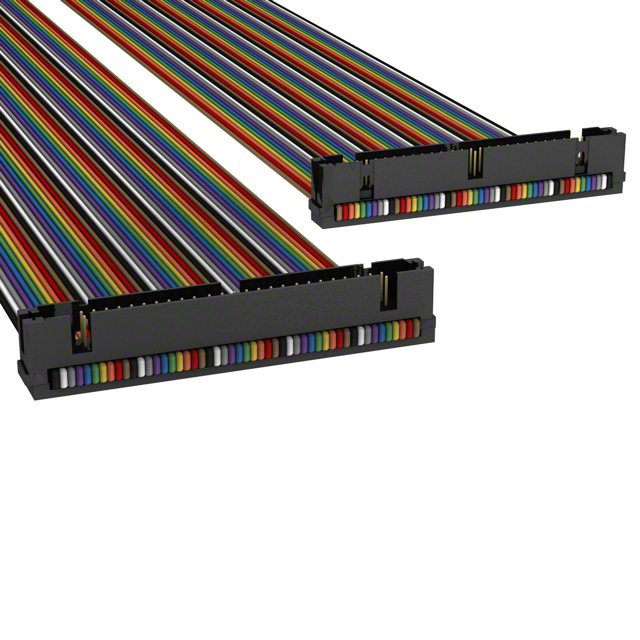

TE Connectivity AMP Connectors A3RRB-5018M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám	457.2 mm	1.5 ft	Polarizing Key Strain Relief	0.1 in	2.54 mm	50	Multiple Ribbon	Gold
TE Connectivity AMP Connectors A3RRB-5018G	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám	457.2 mm	1.5 ft	Polarizing Key Strain Relief	0.1 in	2.54 mm	50		Gold
TE Connectivity AMP Connectors A3RRB-3406M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm		Multiple Ribbon	Gold	34	152.4 mm	0.5 '	6 "

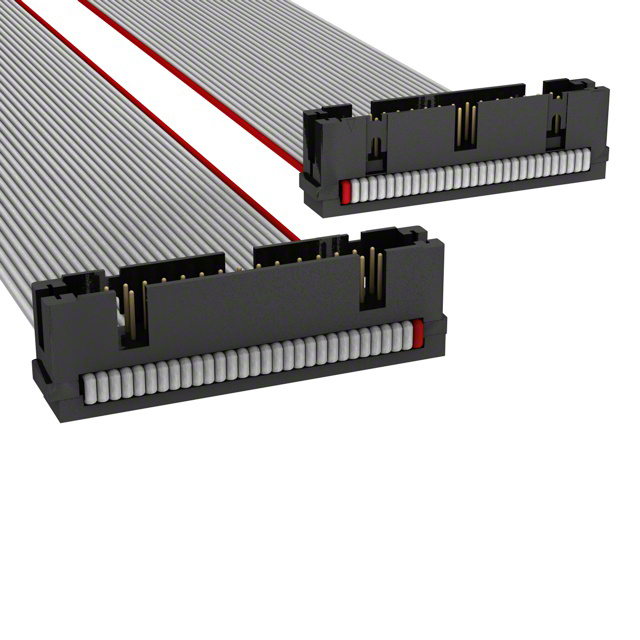

TE Connectivity AMP Connectors A3RRB-3006G	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	30		Gold		152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3RRB-2606M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	26	Multiple Ribbon	Gold		152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3RRB-3006M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	30	Multiple Ribbon	Gold		152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3RRB-5006M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	50	Multiple Ribbon	Gold		152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3RRB-3036G	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	30		Gold		91.44 cm	3 ft
TE Connectivity AMP Connectors A3RRB-5006G	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm	50		Gold		152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3RRB-3436M	Plug to Plug	2	0.05 in	1.27 mm	Unshielded	IDC	30 Áin	0.76 Ám			Polarizing Key Strain Relief	0.1 in	2.54 mm		Multiple Ribbon	Gold	34	91.44 cm	3 ft
