SMSTB Series

Pluggable Terminal Blocks 18 Pos 5.08mm pitch Plug 24-12 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 18 Pos 5.08mm pitch Plug 24-12 AWG Screw

Catalog

Pluggable Terminal Blocks 18 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Number of Levels	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Plug Wire Entry	Current - IEC	Voltage - IEC	Mounting Type	Contact Mating Finish	Termination Style	Voltage - UL	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Type	Color	Insulation Height	Insulation Height	Wire Strip Length	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Size	Material Flammability Rating	Housing Material	Features	Header Orientation	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 1826351	1	9	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5.08 mm	0.2 in	30 AWG	12 AWG	9	Plug Female Sockets	Green
Phoenix Contact 1970883	1	3	2.5 mm²	0.2 mm²	45 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5 mm	0.197 in	30 AWG	12 AWG		Plug Female Sockets	Green	0.61 in	15.49 mm	7 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	UL94 V-0	Polyamide (PA) Nylon	Mating Flange Retention Latches (Non-Wire Side)
Phoenix Contact 1874497	1	9	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5.08 mm	0.2 in	30 AWG	12 AWG	9	Plug Female Sockets	Black

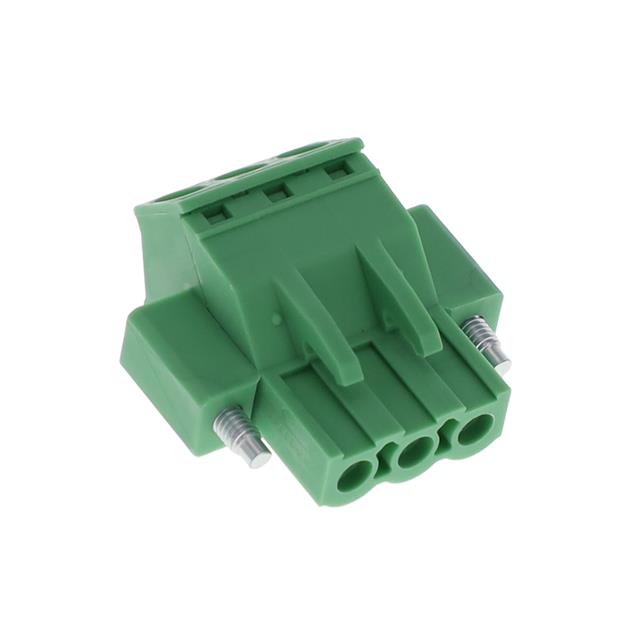

Phoenix Contact 1971073	1	3	2.5 mm²	0.2 mm²	45 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5.08 mm	0.2 in	30 AWG	12 AWG		Plug Female Sockets	Green	0.61 in	15.49 mm	7 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	UL94 V-2	Polyamide (PA) Nylon	Mating Flange Retention Latches (Non-Wire Side)
Phoenix Contact 1768943	1	21	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5 mm	0.197 in	30 AWG	12 AWG	21	Plug Female Sockets	Green
Phoenix Contact 1769366	1	15				12 A	400 V	Through Hole	Tin	Solder	300 V	5 mm	0.197 in			15	Header Male Pins Shrouded (2 Side)	Green												45 °
Phoenix Contact 1838530	1	8	2.5 mm²	0.2 mm²	225 °	12 A	250 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp		5.08 mm	0.2 in	30 AWG	12 AWG	8	Plug Female Sockets	Black
Phoenix Contact 1850576	1	18	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5.08 mm	0.2 in	30 AWG	12 AWG	18	Plug Female Sockets	Green	0.61 in	15.49 mm	7 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	UL94 V-0	Polyamide (PA) Nylon			2.5 mm˛	0.2 mm˛

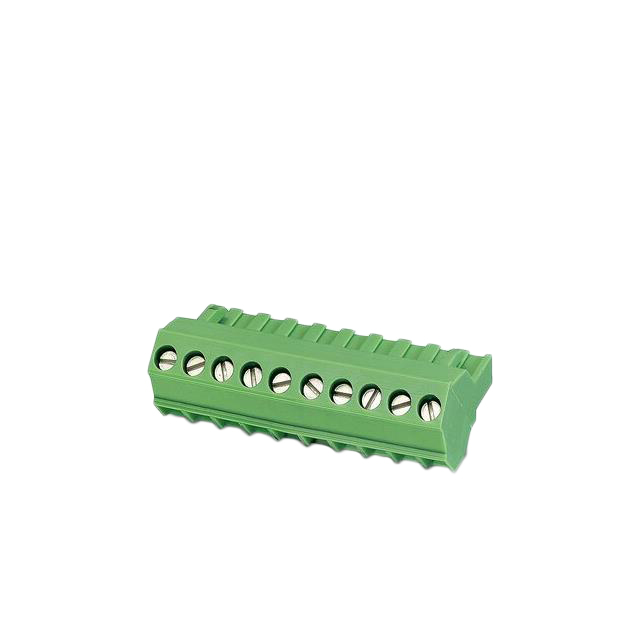

Phoenix Contact 1826403	1	14	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5.08 mm	0.2 in	30 AWG	12 AWG	14	Plug Female Sockets	Green	0.61 in	15.49 mm	7 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	UL94 V-0	Polyamide (PA) Nylon

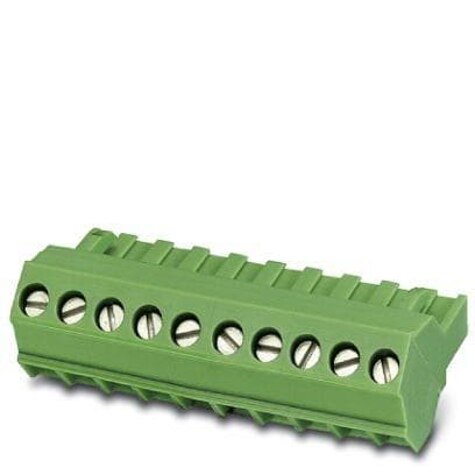

Phoenix Contact 1768927	1	19	2.5 mm²	0.2 mm²	225 °	12 A	630 V	Free Hanging (In-Line)	Tin	Screw - Rising Cage Clamp	300 V	5 mm	0.197 in	30 AWG	12 AWG	19	Plug Female Sockets	Green	0.61 in	15.49 mm	7 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	UL94 V-0	Polyamide (PA) Nylon			2.5 mm˛	0.2 mm˛
