MP18021 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

MOSFET DRVR 2.5A/3.5A 2-OUT HI/LO SIDE NON-INV 8-PIN SOIC EP T/R

Part	Gate Type	Driven Configuration	Input Type	Channel Type	Number of Drivers	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	High Side Voltage - Max (Bootstrap) [Max]
Monolithic Power Systems Inc. MP18021HN-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-SOIC Exposed Pad	3.9 mm	0.154 in	-40 C	125 °C	12 ns	9 ns	1 V 2.4 V	8-SOICE	9 V	18 V	2.5 A	2.5 A	100 V

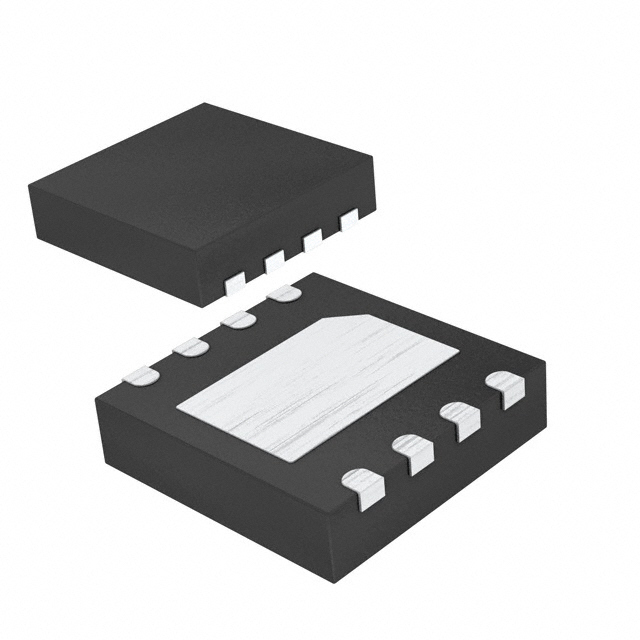

Monolithic Power Systems Inc. MP18021HQ-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-VDFN Exposed Pad			-40 C	125 °C	12 ns	9 ns	1 V 2.4 V	8-QFN (3x3)	9 V	18 V	2.5 A	2.5 A	100 V
Monolithic Power Systems Inc. MP18021HN-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-SOIC Exposed Pad	3.9 mm	0.154 in	-40 °C	140 °C	12 ns	9 ns	1 V 2.4 V	8-SOICE	9 V	16 V	2.5 A	2.5 A	100 V
Monolithic Power Systems Inc. MP18021HN-A-LF	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-SOIC Exposed Pad	3.9 mm	0.154 in	-40 C	125 °C	12 ns	9 ns	1 V 2.4 V	8-SOICE	9 V	18 V	2.5 A	2.5 A	100 V
Monolithic Power Systems Inc. MP18021HQ-A-LF-P	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-VDFN Exposed Pad			-40 C	125 °C	12 ns	9 ns	1 V 2.4 V	8-QFN (3x3)	9 V	18 V	2.5 A	2.5 A	100 V
Monolithic Power Systems Inc. MP18021HN-LF	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	Non-Inverting	Independent	2	Surface Mount	8-SOIC Exposed Pad	3.9 mm	0.154 in	-40 °C	140 °C	12 ns	9 ns	1 V 2.4 V	8-SOICE	9 V	16 V	2.5 A	2.5 A	100 V
