817-22 Series

Catalog

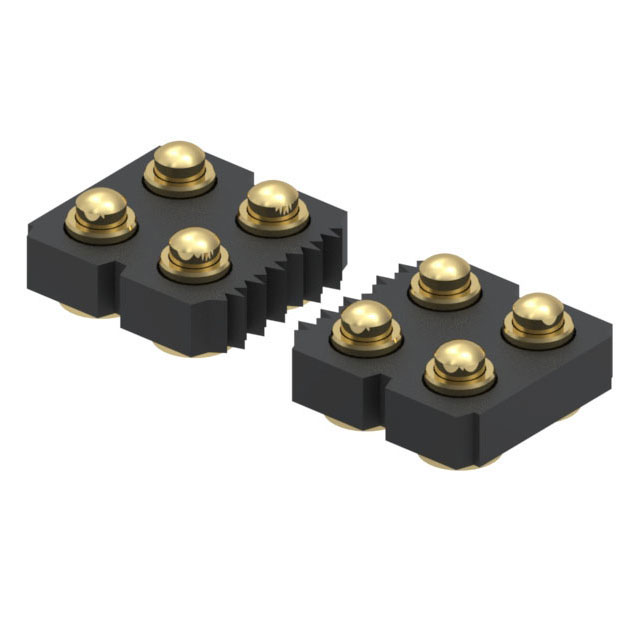

CONN SPRING PISTON 54POS SMD

Part	Row Spacing	Row Spacing	Pitch	Pitch	Connector Type	Material	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Mounting Type	Contact Finish	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 817-22-054-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	54	Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-018-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm		Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-072-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm		Surface Mount	Gold	72
Mill-Max Manufacturing Corp. 817-22-056-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	56	Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-044-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	44	Surface Mount	Gold

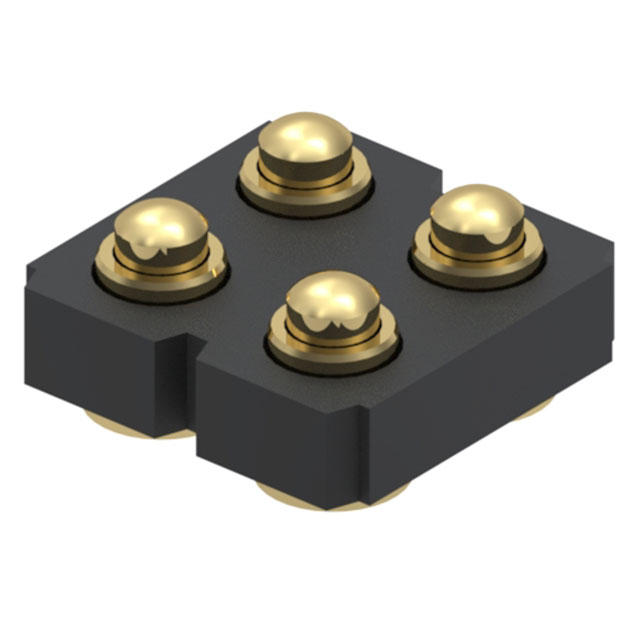

Mill-Max Manufacturing Corp. 817-22-004-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	4	Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-012-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm		Surface Mount	Gold	12
Mill-Max Manufacturing Corp. 817-22-028-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	28	Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-034-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm		Surface Mount	Gold
Mill-Max Manufacturing Corp. 817-22-064-30-001101	2.54 mm	0.1 "	0.1 "	2.54 mm	Piston	Copper Alloy	2	20 µin	0.51 µm	64	Surface Mount	Gold
