333-076 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 76POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Number of Positions/Bay/Row [custom]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination	Pitch	Pitch	Mounting Type	Color	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 333-076-544-807	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Wire Wrap	3.96 mm	0.156 in	Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	M3 Threaded Insert Top Mount Opening	2

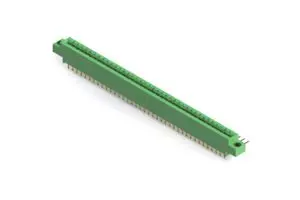

EDAC Inc. 333-076-558-807	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder	3.96 mm	0.156 in	Right Angle Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	M3 Threaded Insert Top Mount Opening	2
EDAC Inc. 333-076-560-802	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder	3.96 mm	0.156 in	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76		2	3.25 mm	0.128 "	Card Extender

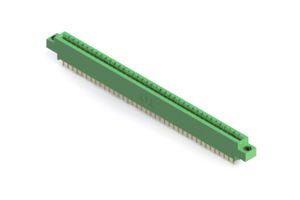

EDAC Inc. 333-076-520-808	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder	3.96 mm	0.156 in	Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	4-40 Threaded Insert Top Mount Opening	2

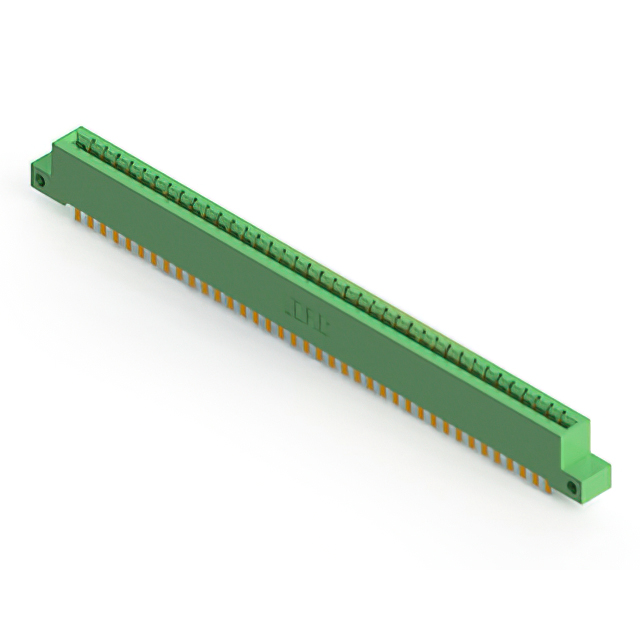

EDAC Inc. 333-076-500-212	2	Diallyl Phthalate (DAP)	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder Eyelet(s)	3.96 mm	0.156 in	Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	Flush Mount Side Opening Unthreaded	2	3.25 mm	0.128 "

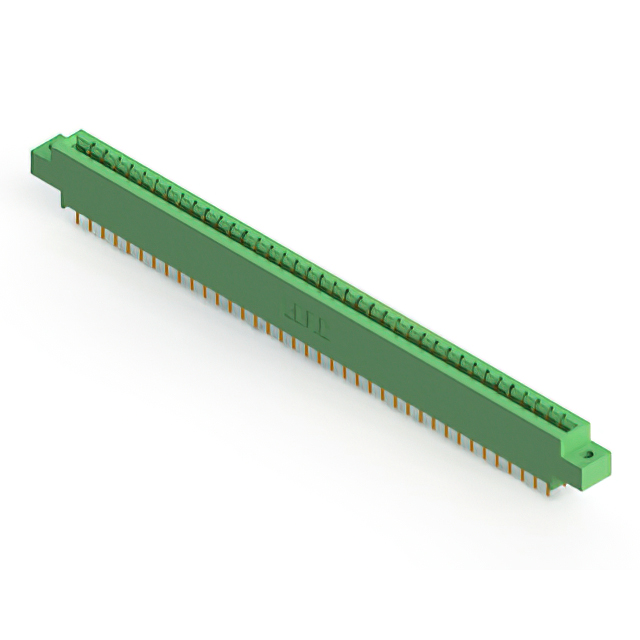

EDAC Inc. 333-076-520-802	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder	3.96 mm	0.156 in	Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76		2	3.25 mm	0.128 "
EDAC Inc. 333-076-560-812	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder	3.96 mm	0.156 in	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	Side Mount Opening Unthreaded	2	3.25 mm	0.128 "	Card Extender
EDAC Inc. 333-076-559-203	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Wire Wrap	3.96 mm	0.156 in	Right Angle Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	Floating Bobbin Flush Mount	2	2.95 mm	0.116 "

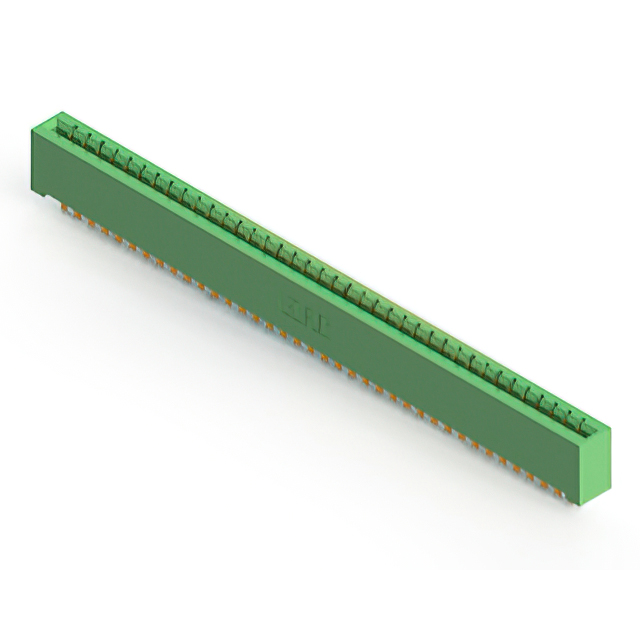

EDAC Inc. 333-076-555-201	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Solder Eyelet(s)	3.96 mm	0.156 in	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76		2			Card Extender

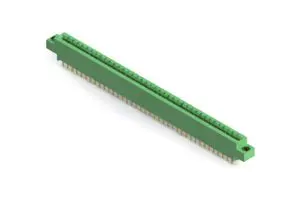

EDAC Inc. 333-076-542-807	2	Polyester Thermoplastic	Copper Alloy	38	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	-40 C	105 ░C	Dual	Wire Wrap	3.96 mm	0.156 in	Through Hole	Green	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	76	M3 Threaded Insert Top Mount Opening	2
