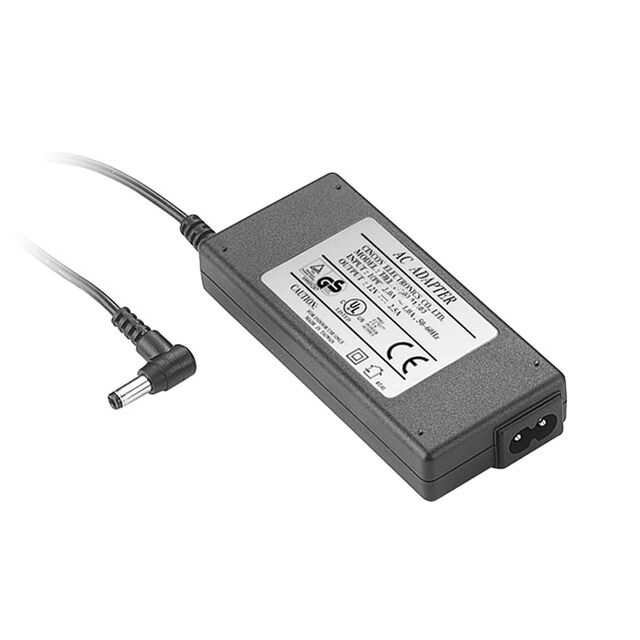

TRG36A24 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 36W

Part	Voltage - Output	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Cord Length	Cord Length	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Current - Output (Max) [Max]	Applications	Region Utilized	Form	Input Type	No Load Power Consumption	Approval Agency	Power (Watts)	Weight	Weight

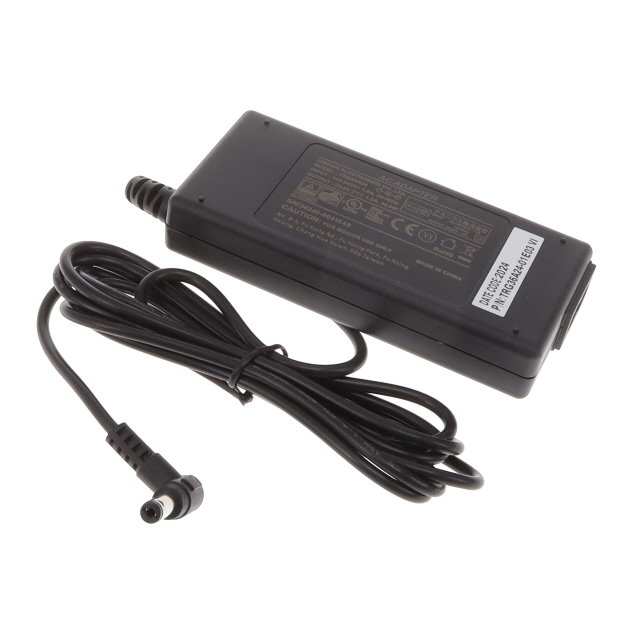

Cincon Electronics Co. LTD TRG36A24-01E03 VI	24 V	Positive Center	264 VAC	90 VAC	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	60950-1 62368-1	111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	70.9 "	1.8 m	-20 ░C	60 °C	IEC 320-C8	1.5 A	ITE (Commercial)	International	Desktop (Class II)	Cord (Sold Separately)	75 mW	CE cULus FCC GS PSE TUV	36 W
Cincon Electronics Co. LTD TRG36A24-11E03 VI	24 V	Positive Center	264 VAC	90 VAC	CoC Tier 2 Level VI	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm		111 mm	51 mm	4.37 in	0.89 "	22.5 mm	2.01 "	70.9 "	1.8 m	-20 ░C	60 °C	IEC 320-C8	1.5 A	ITE (Commercial)	International	Desktop (Class II)	Cord (Sold Separately)	75 mW	CE cULus FCC GS PSE TUV	36 W	190.06 g	0.419 lb
