C20ALG Series

Manufacturer: KEMET

Catalog

CAP FILM 33UF 10% 1.4KVDC RAD

Part	Capacitance	Dielectric Material	Features	Tolerance	Termination	ESR (Equivalent Series Resistance)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

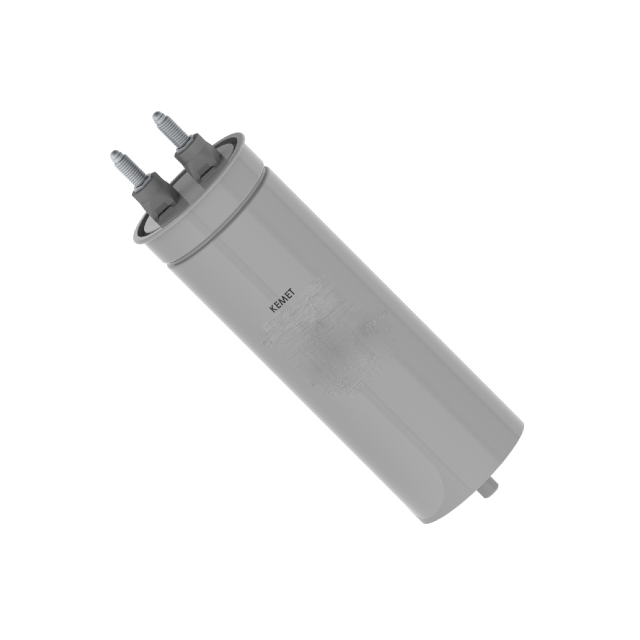

KEMET C20ALGR5330AASK	33 ÁF	Polypropylene (PP) Metallized	Long Life	10 %	Threaded Male	2.2 mOhms	Chassis Mount	-25 °C	70 °C	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Can Radial	1.378 "	35 mm	2.953 in	75 mm	640 V	1.4 kV	1400 V	149 mm	5.866 in
KEMET C20ALGR5680AASK	68 µF	Polypropylene (PP) Metallized	Long Life	10 %	Threaded Male	1.6 mOhm	Chassis Stud Mount	-25 °C	70 °C	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Can Radial	1.378 "	35 mm	2.953 in	75 mm	640 V	1.4 kV	1400 V			249 mm	9.803 "
KEMET C20ALGR5150AASK	15 µF	Polypropylene (PP) Metallized	Long Life	10 %	Threaded Male	2.5 mOhms	Chassis Stud Mount	-25 °C	70 °C	Commutation EMI RFI Suppression Power Factor Correction (PFC)	Can Radial	1.102 in	28 mm	2.559 in	65 mm	640 V	1.4 kV	1400 V	119 mm	4.685 in
