MAX148 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC TRANSCEIVER HALF 1/1 DIE

Part	Package / Case	Protocol	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Duplex	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Receiver Hysteresis	Type	Supplied Contents	Function	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Architecture	Configuration	Reference Type	Data Interface	Ratio - S/H:ADC	Input Type	Number of Bits [custom]	Number of A/D Converters	Number of Inputs	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	-3db Bandwidth	Channel-to-Channel Matching (ΔRon)	Current - Leakage (IS(off)) (Max)	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits	Crosstalk	Charge Injection	Multiplexer/Demultiplexer Circuit	Switch Circuit	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	On-State Resistance (Max)
Analog Devices Inc./Maxim Integrated MAX1487C/D	Die	RS422 RS485	2.5 Mbps	70 °C	0 °C	Surface Mount	Half	4.75 V	5.25 V	Die	70 mV	Transceiver

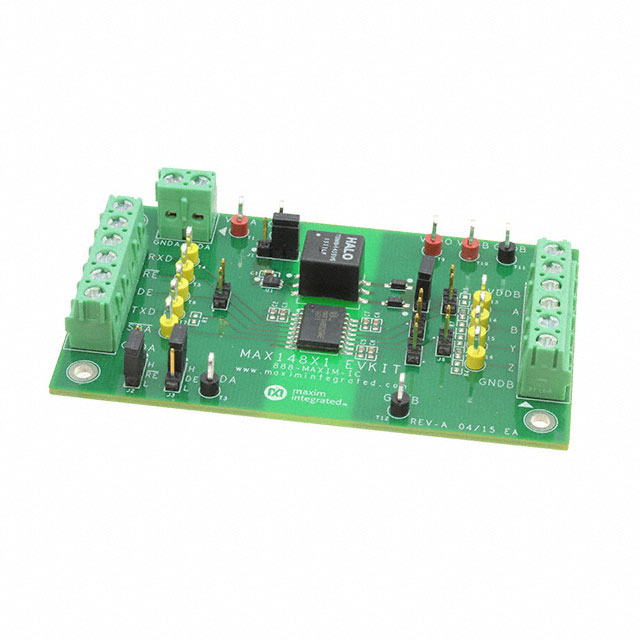

Analog Devices Inc./Maxim Integrated MAX148X1EVKIT#												Interface	Board(s)	RS-485 Transceiver
Analog Devices Inc./Maxim Integrated MAX14891ECTP+	20-WFQFN Exposed Pad	RS422 RS485		125 °C	-40 °C	Surface Mount		4.5 V	5.5 V	20-TQFN (4x4)	230 mV	Receiver			0	4
Analog Devices Inc./Maxim Integrated MAX14890ECTJ+T		RS422 RS485		125 °C	-40 °C			4.5 V	5.5 V			Receiver			0	4
Analog Devices Inc./Maxim Integrated MAX148ACAP+T	20-SSOP			70 °C	0 °C	Surface Mount				20-SSOP							2.7 V	5.25 V	SAR	MUX-S/H-ADC	External	SPI	1:1	Differential Single Ended	10	1	4 8	5.25 V	2.7 V
Analog Devices Inc./Maxim Integrated MAX148BEAP+T	20-SSOP			85 °C	-40 °C	Surface Mount				20-SSOP							2.7 V	5.25 V	SAR	MUX-S/H-ADC	External	SPI	1:1	Differential Single Ended	10	1	4 8	5.25 V	2.7 V
Analog Devices Inc./Maxim Integrated MAX14803CCM+TG5E	48-LQFP			70 °C	0 °C	Surface Mount				48-LQFP (7x7)																				3.5 µs	3.5 µs	160 V	-160 V	20 MHz	2.4 Ohm	2 µA	11 pF	11 pF	16	-80 dB	820 pC	1:1	SPST - NO	250 V	40 V	48 Ohm
Analog Devices Inc./Maxim Integrated MAX148BCAP	20-SSOP			70 °C	0 °C	Surface Mount				20-SSOP							2.7 V	5.25 V	SAR	MUX-S/H-ADC	External	SPI	1:1	Differential Single Ended	10	1	4 8	5.25 V	2.7 V
Analog Devices Inc./Maxim Integrated MAX148AEAP+
Analog Devices Inc./Maxim Integrated MAX1483C/D+	Die	RS422 RS485	250 KBd	70 °C	0 °C	Surface Mount	Half	4.75 V	5.25 V	Die	75 mV	Transceiver
