PPPC302 Series

Catalog

CONN HDR 60POS 0.1 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Termination	Voltage Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Insulation Color	Mounting Type	Contact Finish - Post	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Connector Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]

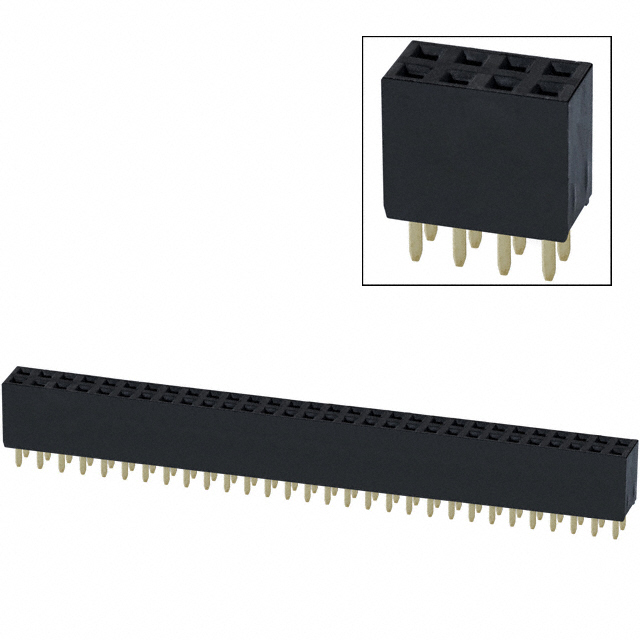

Sullins Connector Solutions PPPC302LFBN-RC	Flash	Square	Polyester	Phosphor Bronze	All	3 A	0.126 "	3.2 mm	Female Socket	Solder	250 V	0.335 "	8.51 mm	Flash	Black	Through Hole	Gold	Push-Pull	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	60	Gold	Header	2	0.1 in	2.54 mm
Sullins Connector Solutions PPPC302LFBN	Flash	Square	Polyester	Phosphor Bronze	All	3 A	0.126 "	3.2 mm	Female Socket	Solder	250 V	0.335 "	8.51 mm	Flash	Black	Through Hole	Gold	Push-Pull	UL94 V-0	-40 C	105 ░C	0.1 "	2.54 mm	60	Gold	Header	2	0.1 in	2.54 mm

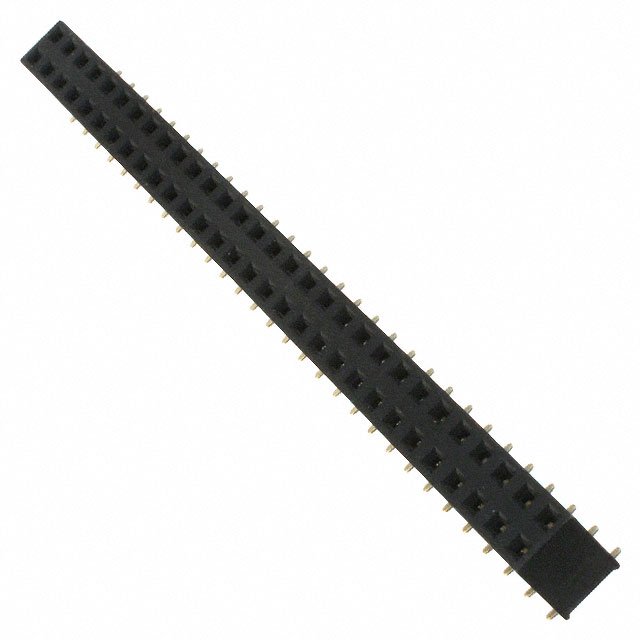

Sullins Connector Solutions PPPC302KFMS	Flash	Square	Polyester	Phosphor Bronze	All	3 A			Female Socket	Solder	250 V		7.6 mm	Flash	Black	Surface Mount	Gold	Push-Pull	UL94 V-0	-40 C	125 °C	0.1 "	2.54 mm	60	Gold	Header	2	0.1 in	2.54 mm	0.299 "
