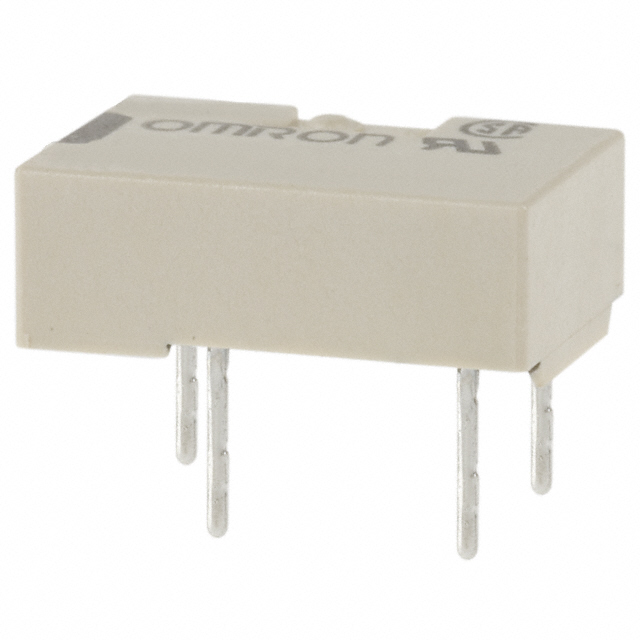

G6L-1P Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SIGNAL RELAY 3VDC 1A SPST-NO(10.6X7X4.1)MM THT
| Part | Contact Form | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Coil Type | Must Release Voltage | Contact Rating (Current) | Release Time | Coil Resistance | Termination Style | Coil Current | Seal Rating | Relay Type | Must Operate Voltage | Mounting Type | Switching Voltage [Max] | Operate Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | SPST-NO (1 Form A) | 60 W 125 VA | -40 °C | 70 °C | CSA UL | Non Latching | 0.3 VDC | 1 A | 5 ms | 50 Ohms | PC Pin | 60 mA | Sealed - Fully | Telecom | 2.25 VDC | Through Hole | 60 VDC 125 VAC | 5 ms | |
Omron Electronics Inc-EMC Div | SPST-NO (1 Form A) | 60 W 125 VA | -40 °C | 70 °C | CSA UL | Non Latching | 0.45 VDC | 1 A | 5 ms | 113 Ohms | PC Pin | 40 mA | Sealed - Fully | Telecom | 3.38 VDC | Through Hole | 60 VDC 125 VAC | 5 ms | 4.5 VDC |
Omron Electronics Inc-EMC Div | SPST-NO (1 Form A) | 60 W 125 VA | -40 °C | 70 °C | CSA UL | Non Latching | 0.5 VDC | 1 A | 5 ms | 139 Ohms | PC Pin | 36 mA | Sealed - Fully | Telecom | 4 VDC | Through Hole | 60 VDC 125 VAC | 5 ms | 5 VDC |
