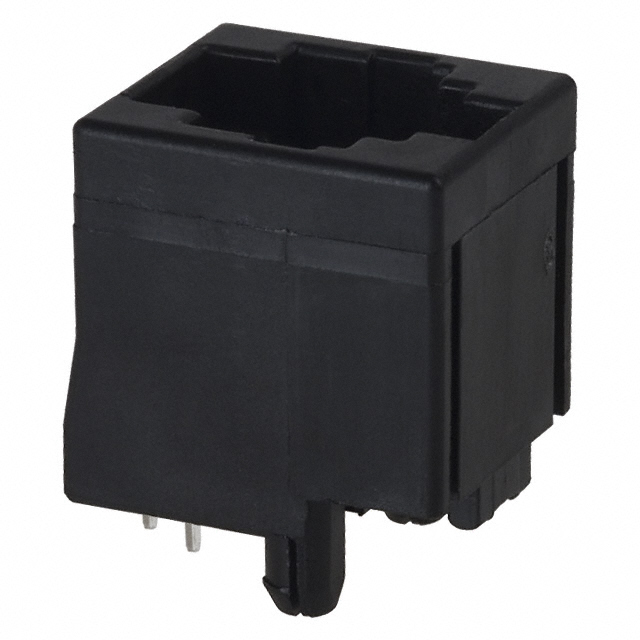

MODULAR CONNECTOR, RJ14 JACK, 1 X 1 (PORT), 6P4C, CAT3, THROUGH HOLE MOUNT
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Tab Direction | Number of Rows | Contact Material | Features | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Connector Type | Ratings | Shielding | Mounting Type | LED Color | Termination | Orientation | Number of Ports | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Polyester | 50 µin | 1.27 µm | 85 °C | -40 C | Gold | User Selectable | 1 | Phosphor Bronze | Board Lock | 4 | 6 | Jack | Cat3 | Unshielded | Through Hole | Does Not Contain LED | Solder | Vertical | 1 | |
 TE Connectivity AMP Connectors | Thermoplastic | 50 µin | 1.27 µm | 85 °C | -40 C | Gold | User Selectable | 1 | Phosphor Bronze | Board Guide | Jack | Cat5 | Shielded | Through Hole | Does Not Contain LED | Press-Fit | Vertical | 1 | 8p8c (RJ45 Ethernet) | ||
TE Connectivity AMP Connectors | Gold | User Selectable | 1 | Phosphor Bronze | Board Guide | Jack | Cat5 | Shielded | Through Hole | Does Not Contain LED | Solder | Vertical | 1 | 8p8c (RJ45 Ethernet) | |||||||
 TE Connectivity AMP Connectors | Gold | User Selectable | 1 | Phosphor Bronze | Board Lock | 6 | 6 | Jack | Cat3 | Unshielded | Through Hole | Does Not Contain LED | Solder | Vertical | 1 | ||||||
 TE Connectivity AMP Connectors | Gold | User Selectable | 1 | Phosphor Bronze | Board Guide | Jack | Cat5 | Shielded | Through Hole | Does Not Contain LED | Press-Fit | Vertical | 1 | 8p8c (RJ45 Ethernet) | |||||||
TE Connectivity AMP Connectors | Gold | User Selectable | 1 | Phosphor Bronze | Board Lock | 4 | 6 | Jack | Cat3 | Unshielded | Through Hole | Does Not Contain LED | Solder | Vertical | 1 |
