9947 Series
Manufacturer: Belden Inc.
Beta
⌘K

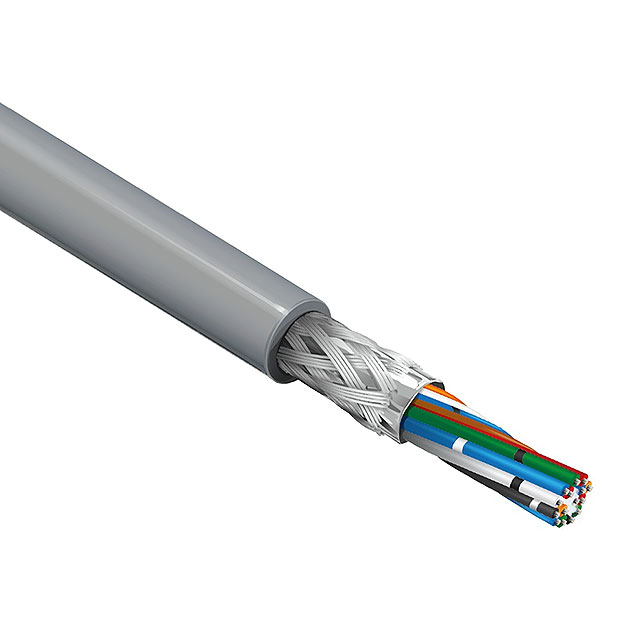

CABLE 15COND 22AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Number of Conductors | Jacket Color | Cable Type | Usage | Conductor Insulation | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | Copper Tinned | 15 | Chrome | Multi-Conductor | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 8.64 mm | 0.34 " | Braid Foil | 22 AWG | 152.4 m | 500 ft | 300 VDC | 0.035 in | 0.889 mm | 30 AWG | 7 | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | Copper Tinned | 15 | Chrome | Multi-Conductor | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 8.64 mm | 0.34 " | Braid Foil | 22 AWG | 300 VDC | 0.035 in | 0.889 mm | 30 AWG | 7 | ||||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | Copper Tinned | 15 | Chrome | Multi-Conductor | Computer | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 8.64 mm | 0.34 " | Braid Foil | 22 AWG | 0.035 in | 0.889 mm | 30 AWG | 7 | 100 ft | 30.5 m |
