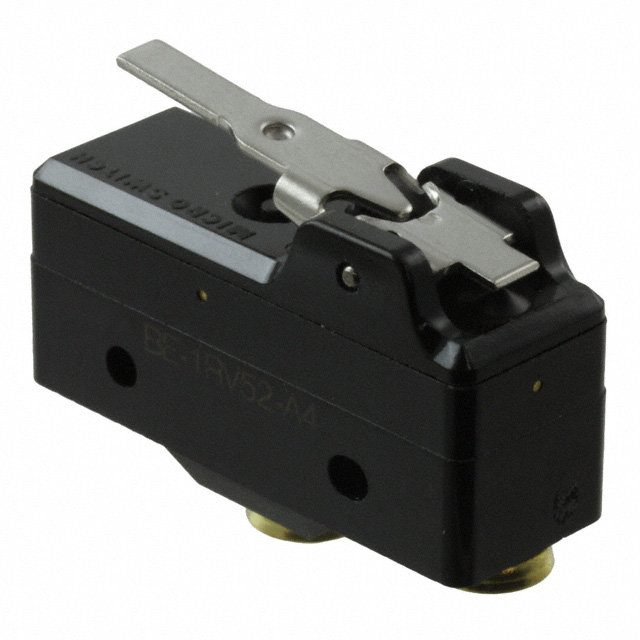

BE-1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 25A 125V
| Part | Mounting Type | Switch Function | Differential Travel | Differential Travel | Current Rating (Amps) | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel | Overtravel | Actuator Type | Pretravel | Pretravel | Circuit | Mechanical Life | Voltage Rating - AC | Operating Position | Operating Position | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | On-Mom | 0.03 in | 0.76 mm | 25 A | 113 gf | 121 °C | -55 °C | 1.27 mm | 0.05 in | Lever Straight | 0.266 in | 6.75 mm | SPDT | 20000000 Cycles | 125 V | 0.75 " | 19.1 mm | Screw Terminal |
