282966 Series

Catalog

TERMI-BLOK HEADER ASSY 4P 7

Part	Contact Tail Length	Contact Tail Length	Number of Positions	Material Flammability Rating	Mounting Type	Pitch [x]	Pitch [x]	Voltage - UL	Contact Material	Insulation Height	Insulation Height	Header Orientation	Number of Levels	Color	Contact Mating Finish	Termination Style	Type	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]

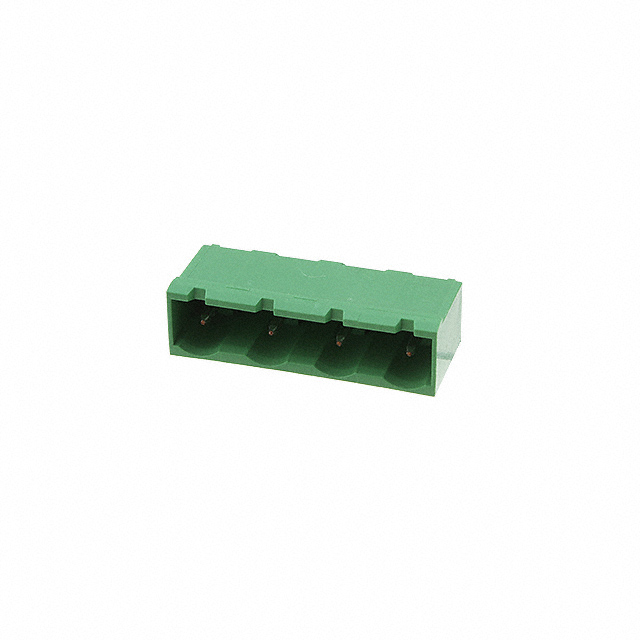

TE Connectivity Raychem Cable Protection 282966-4	3.5 mm	0.138 in	4	UL94 V-0	Through Hole	0.3 in	7.62 mm	300 V	Copper Alloy	8.36 mm	0.329 in	90° Right Angle	1	Green	Tin	Solder	Header Male Pins Shrouded (4 Side)	4	-40 °C	110 °C
TE Connectivity Raychem Cable Protection 282966-8	3.5 mm	0.138 in	8	UL94 V-0	Through Hole	0.3 in	7.62 mm	300 V	Copper Alloy	8.36 mm	0.329 in	90° Right Angle	1	Green	Tin	Solder	Header Male Pins Shrouded (4 Side)	8	-40 °C	110 °C

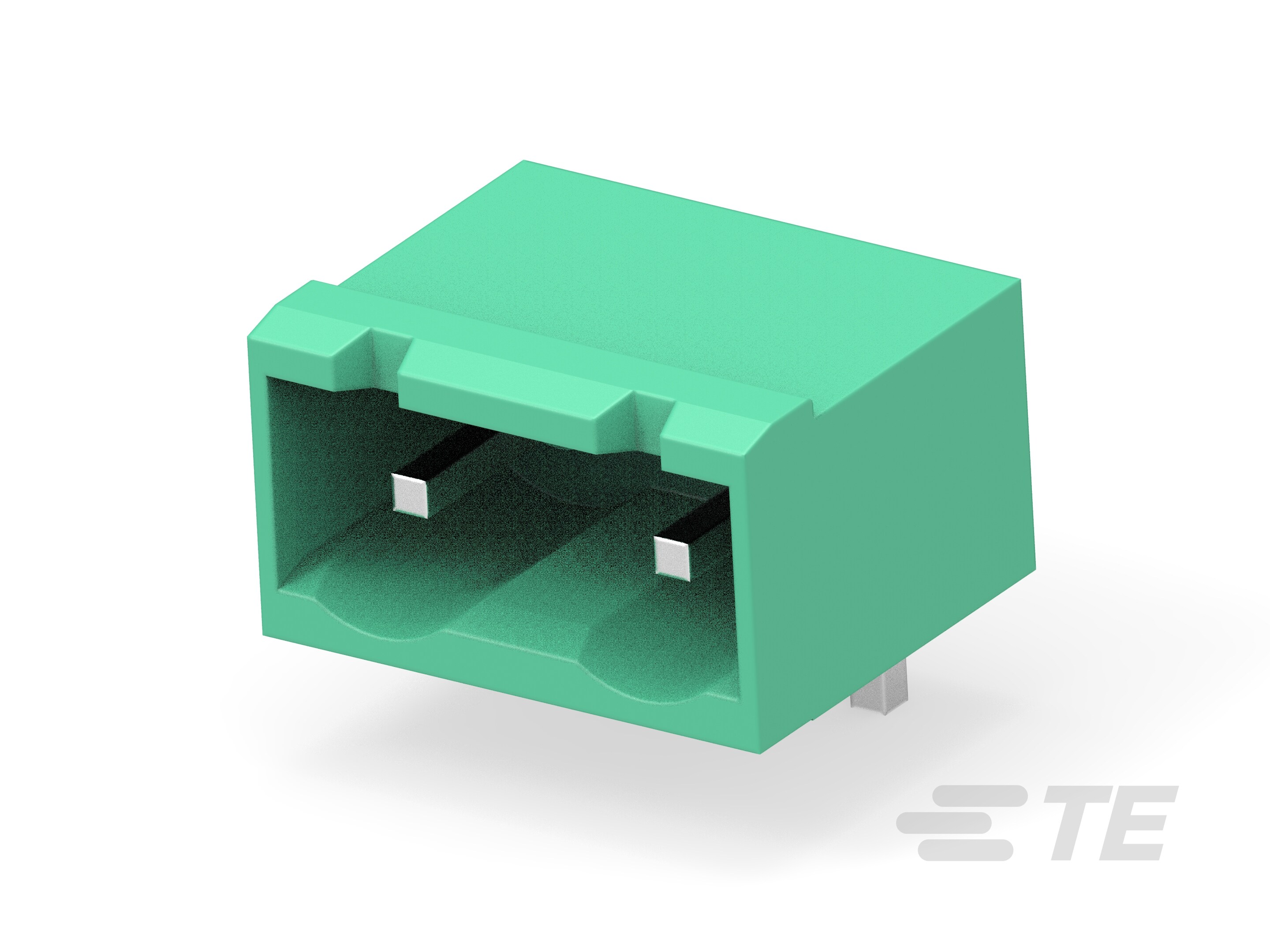

TE Connectivity Raychem Cable Protection 282966-2	3.5 mm	0.138 in	2	UL94 V-0	Through Hole	0.3 in	7.62 mm	300 V	Copper Alloy	8.36 mm	0.329 in	90° Right Angle	1	Green	Tin	Solder	Header Male Pins Shrouded (4 Side)	2	-40 °C	110 °C
TE Connectivity Raychem Cable Protection 282966-5	3.5 mm	0.138 in		UL94 V-0	Through Hole	0.3 in	7.62 mm	300 V	Copper Alloy	8.36 mm	0.329 in	90° Right Angle	1	Green	Tin	Solder	Header Male Pins Shrouded (4 Side)	5	-40 °C	110 °C
TE Connectivity Raychem Cable Protection 1-282966-2	3.5 mm	0.138 in	12	UL94 V-0	Through Hole	0.3 in	7.62 mm	300 V	Copper Alloy	8.36 mm	0.329 in	90° Right Angle	1	Green	Tin	Solder	Header Male Pins Shrouded (4 Side)	12	-40 °C	110 °C
