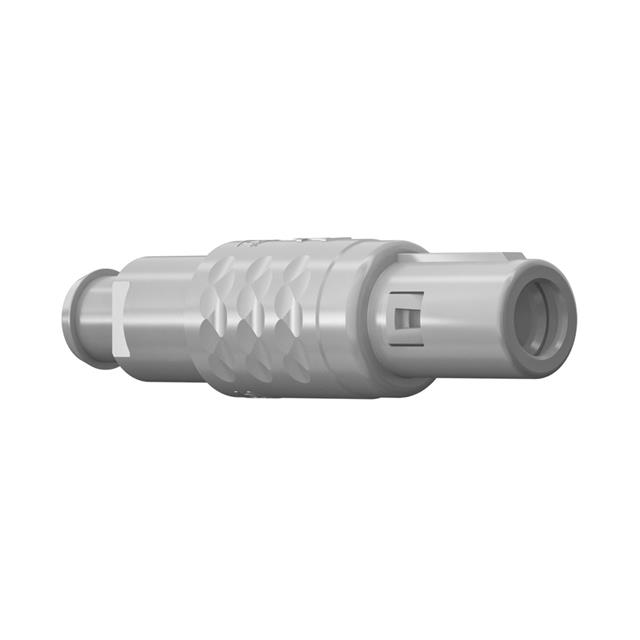

S21MC7-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 2P GOLD SLDR CUP
| Part | Contact Material | Connector Type | Current Rating (Amps) | Color | Insert Material | Contact Finish - Mating | Applications | Shell Material | Shell Size - Insert | Number of Positions | Mounting Type | Fastening Type | Features | Orientation | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Primary Material | Ingress Protection | Shielding | Material Flammability Rating | Voltage Rating | Cable Opening [Max] | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Plug Male Pins | 14 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 2 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | |||||
Brass | Plug Male Pins | 10 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | 1 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.256 in | 5.3 mm | 0.209 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | UL94 V-0 | 230 V | 6.5 mm | ||||
Brass | Plug Male Pins | 4.55 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 7 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.205 in | 0.157 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 4 mm 5.2 mm | ||||||
Brass | Plug Male Pins | 4 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 12 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.256 in | 5.3 mm | 0.209 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | UL94 V-0 | 25 V | 6.5 mm | |||
Brass | Plug Male Pins | 10 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 4 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.205 in | 0.157 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 4 mm 5.2 mm | ||||||
Brass | Plug Male Pins | 2.75 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 10 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.256 in | 5.3 mm | 0.209 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 6.5 mm | |||||
Brass | Plug Male Pins | 3.85 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 8 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.205 in | 0.157 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 4 mm 5.2 mm | ||||||
Brass | Plug Male Pins | 4.55 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 6 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.256 in | 5.3 mm | 0.209 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 6.5 mm | |||||
Brass | Plug Male Pins | 2.75 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 9 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 0.205 in | 0.157 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded | 4 mm 5.2 mm | ||||||
Brass | Plug Male Pins | 3.85 A | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Military Testing Equipment & Measurement | Polysulfone (PSU) | 1 | 8 | Free Hanging (In-Line) | Push-Pull | Backshell Strain Relief | C | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 120 °C | -50 °C | Polysulfone (PSU) | Plastic | IP50 - Dust Protected | Unshielded |
