1N5061 Series

Catalog

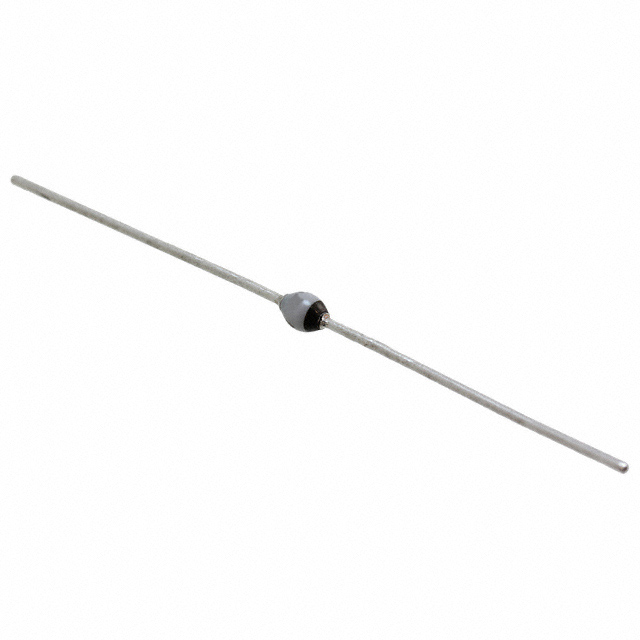

DIODE AVALANCHE 600V 2A SOD57

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Technology	Capacitance @ Vr, F	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Supplier Device Package	Speed [Min]	Mounting Type	Voltage - Forward (Vf) (Max) @ If
Vishay General Semiconductor - Diodes Division 1N5061TR	600 V	1 µA	Avalanche	40 pF	SOD-57 Axial	175 ░C	-55 °C	1.15 V	4 µs	2 A	SOD-57	200 mA 500 ns	Through Hole
Vishay General Semiconductor - Diodes Division 1N5061GPHE3/54	600 V	5 µA	Standard	15 pF	Axial DO-15 DO-204AC	175 ░C	-65 C		2 µs	1 A	DO-204AC (DO-15)	200 mA 500 ns	Through Hole	1.2 V
Vishay General Semiconductor - Diodes Division 1N5061TAP	600 V	1 µA	Avalanche	40 pF	SOD-57 Axial	175 ░C	-55 °C	1.15 V	4 µs	2 A	SOD-57	200 mA 500 ns	Through Hole
Vishay General Semiconductor - Diodes Division 1N5061GP-E3/54	600 V	5 µA	Standard	15 pF	Axial DO-15 DO-204AC	175 ░C	-65 C		2 µs	1 A	DO-204AC (DO-15)	200 mA 500 ns	Through Hole	1.2 V
