UB15NKW Series

Catalog

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Mechanical Life	Electrical Life	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Features	Voltage Rating - DC	Mounting Type	Circuit	Switch Function	Type	Current Rating (Amps)	Actuator Marking	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches UB15NKW01N-E	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Yellow	-20 ░C	70 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Standard	5 A	No Marking

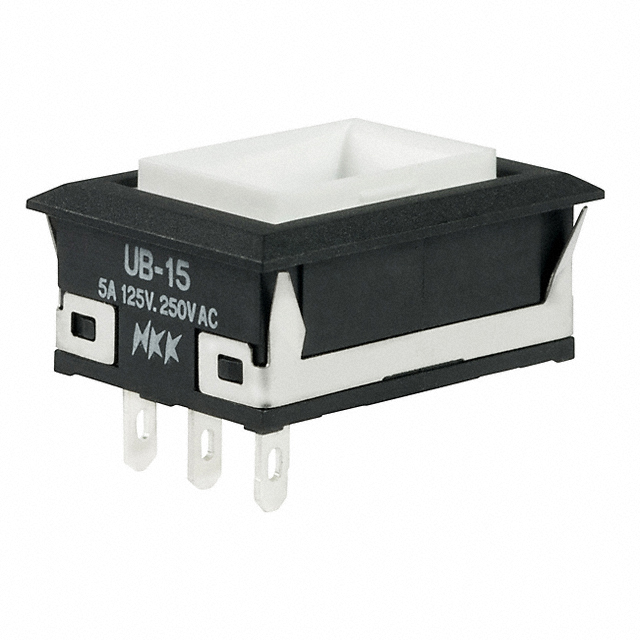

NKK Switches UB15NKW01N	1000000 Cycles	10000 Cycles	Plunger for Cap	125 V		-20 ░C	70 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Standard	5 A	No Marking

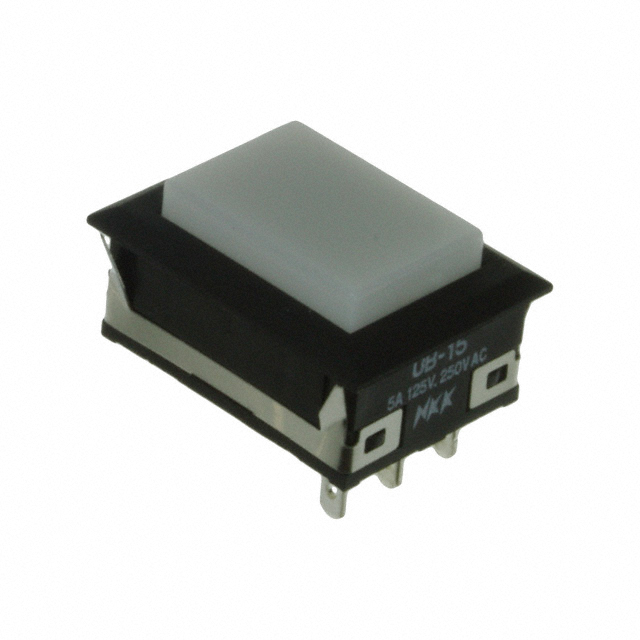

NKK Switches UB15NKW01N-B	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	White	-20 ░C	70 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Standard	5 A	No Marking

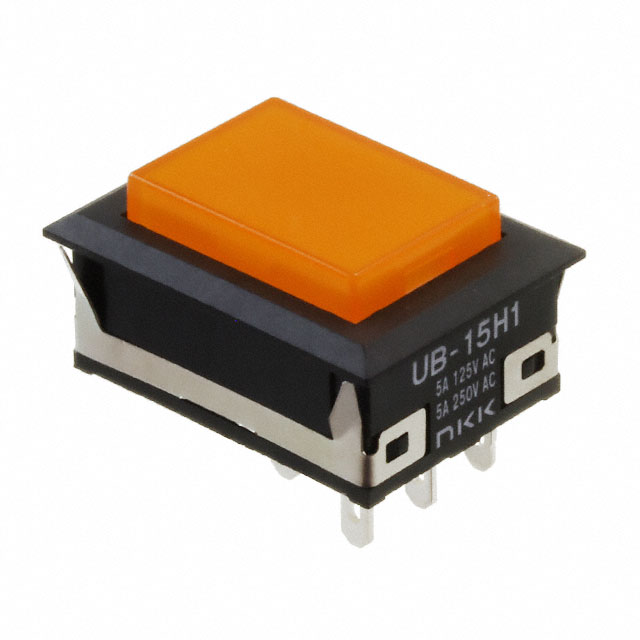

NKK Switches UB15NKW015D-DB	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Amber (White Filter/Diffuser)	-25 °C	50 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Illuminated Standard	5 A	No Marking	2 VDC	Amber LED

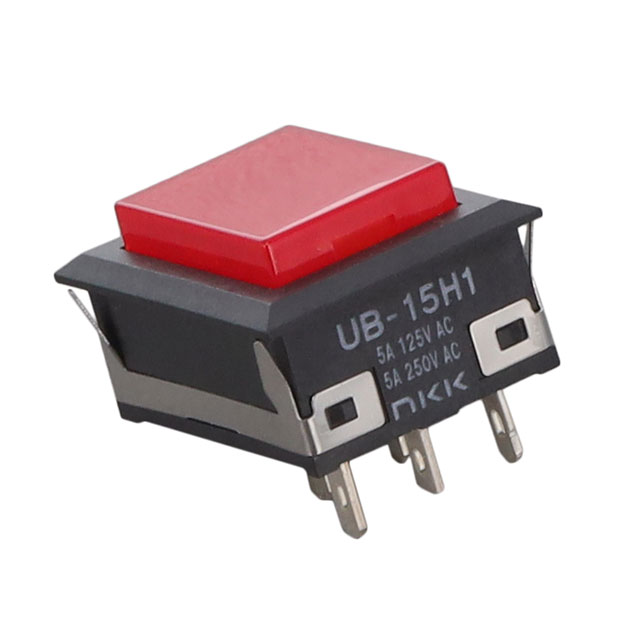

NKK Switches UB15NKW015C-CC	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Red	-25 °C	50 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Illuminated Standard	5 A	No Marking	1.85 VDC	LED Red

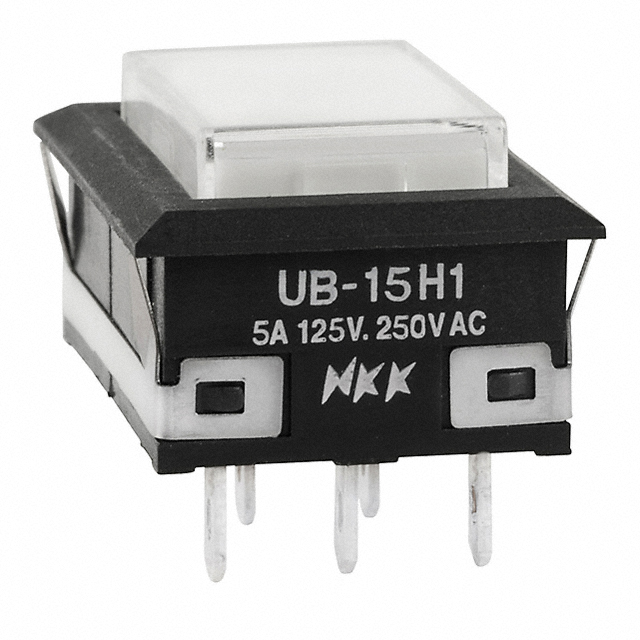

NKK Switches UB15NKW015C-JB	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Clear	-25 °C	50 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Illuminated Standard	5 A	No Marking	1.85 VDC	LED Red
NKK Switches UB15NKW01N-F	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Green	-20 ░C	70 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Standard	5 A	No Marking
NKK Switches UB15NKW015C-AB	1000000 Cycles	10000 Cycles	Button Rectangular	125 V	Black	-25 °C	50 °C	16.2 mm	22.4 mm	Solder Lug	Process Sealed	30 V	Panel Mount Snap-In	SPDT	On-Mom	Illuminated Standard	5 A	No Marking	1.85 VDC	LED Red
