317-012 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Termination	Read Out	Card Type	Contact Finish	Number of Rows [custom]	Gender	Pitch	Pitch	Contact Material	Mounting Type	Number of Positions	Contact Type	Color	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]

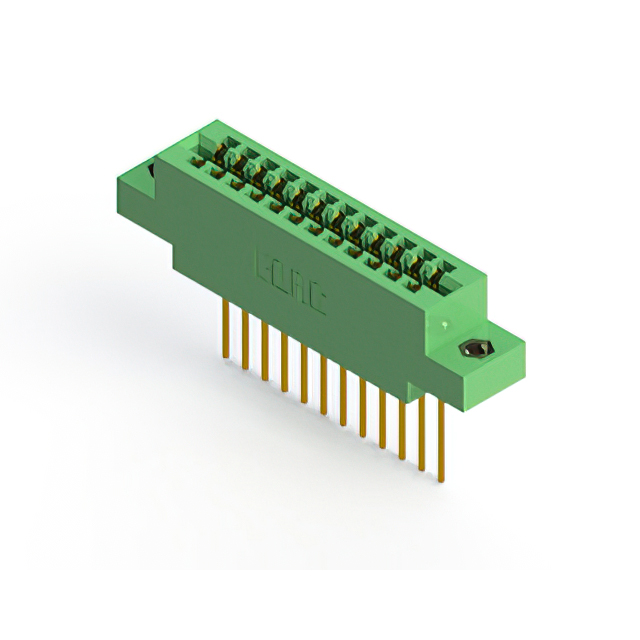

EDAC Inc. 317-012-541-608	Diallyl Phthalate (DAP)	12	-65 ░C	125 °C	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Single	Non Specified - Dual Edge	Gold	2	Female	3.96 mm	0.156 in	Copper Alloy	Through Hole	24	Cantilever	Green	0.25 Ám	10 Áin

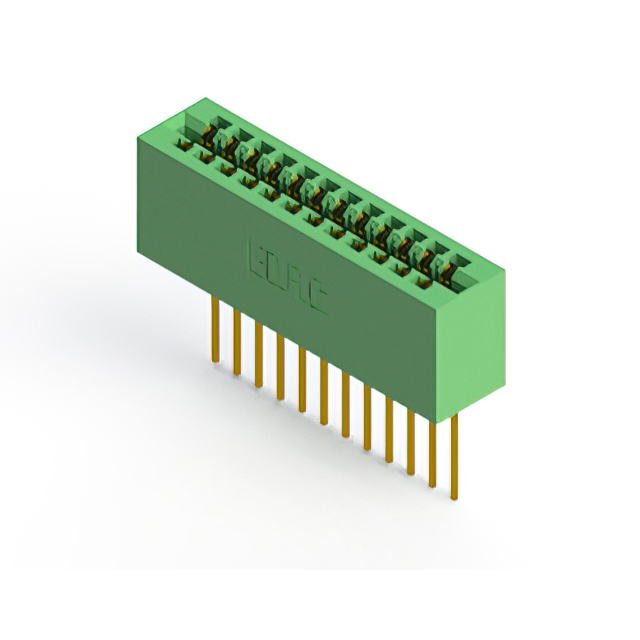

EDAC Inc. 317-012-541-601	Diallyl Phthalate (DAP)	12	-65 ░C	125 °C		0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Single	Non Specified - Dual Edge	Gold	2	Female	3.96 mm	0.156 in	Copper Alloy	Through Hole	24	Cantilever	Green	0.25 Ám	10 Áin
EDAC Inc. 317-012-542-804	Diallyl Phthalate (DAP)	6	-65 ░C	125 °C		0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Dual	Non Specified - Dual Edge	Gold	2	Female	3.96 mm	0.156 in	Copper Alloy	Through Hole	12	Cantilever	Green	0.25 Ám	10 Áin	0.156 "	3.96 mm

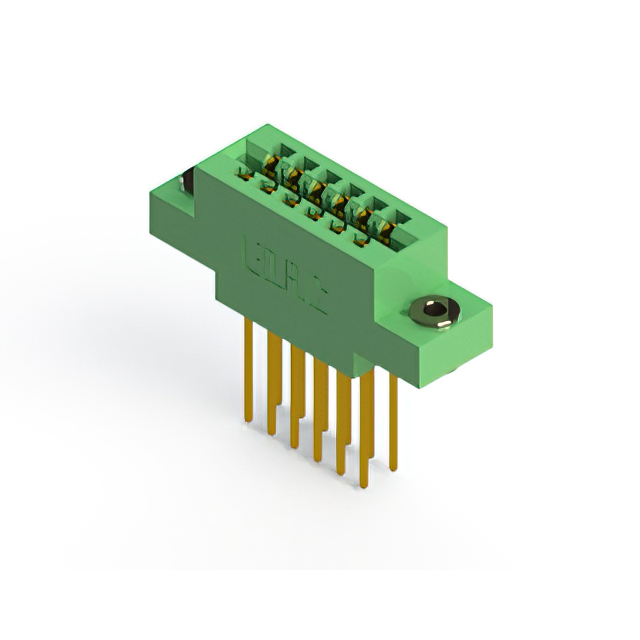

EDAC Inc. 317-012-542-803	Diallyl Phthalate (DAP)	6	-65 ░C	125 °C	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Dual	Non Specified - Dual Edge	Gold	2	Female	3.96 mm	0.156 in	Copper Alloy	Through Hole	12	Cantilever	Green	0.25 Ám	10 Áin	0.116 "	2.95 mm
