IW1818 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
IC OFFLINE SWITCH FLYBACK 7DIP
| Part | Voltage - Breakdown | Mounting Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Topology | Operating Temperature | Power (Watts) | Package / Case | Package / Case | Package / Case | Internal Switch(s) | Supplier Device Package | Output Isolation | Frequency - Switching | Fault Protection | Power - Output | Regulator Topology | Current - Output | Contents | Outputs and Type | Outputs and Type | Board Type | Main Purpose | Utilized IC / Part | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

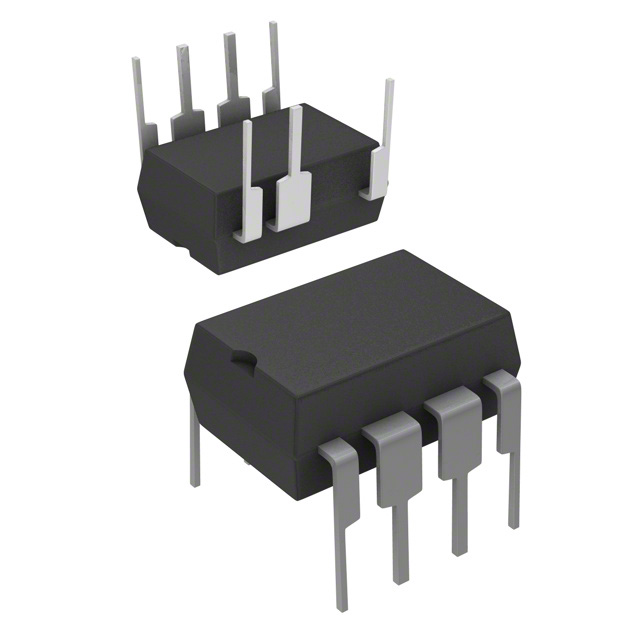

 Renesas Electronics Corporation | 800 V | Through Hole | 264 V | 85 V | Flyback | 150 °C | 10 W | 7.62 mm | 0.3 in 7 Leads | 8-DIP | 7-PDIP | Isolated | 72 kHz | Over Temperature | ||||||||||||||

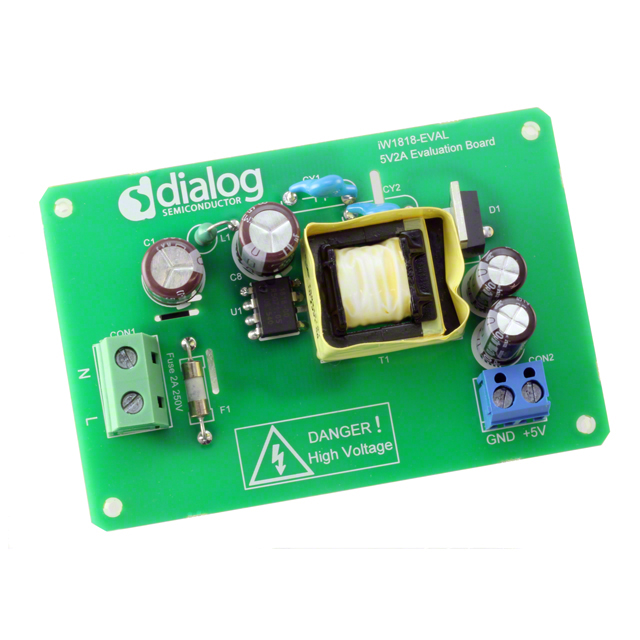

 Renesas Electronics Corporation | 72 kHz | 10 W | Flyback | 2 A | Board(s) | 1 Isolated Output Isolated | 1 | Fully Populated | AC/DC Primary Side | iW1818-00 | 5 V | 90 VAC | 264 VAC | Board(s) |
