KX15-40K Series

Catalog

CONN PLUG 40POS SMD GOLD

Part	Features	Contact Finish	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]

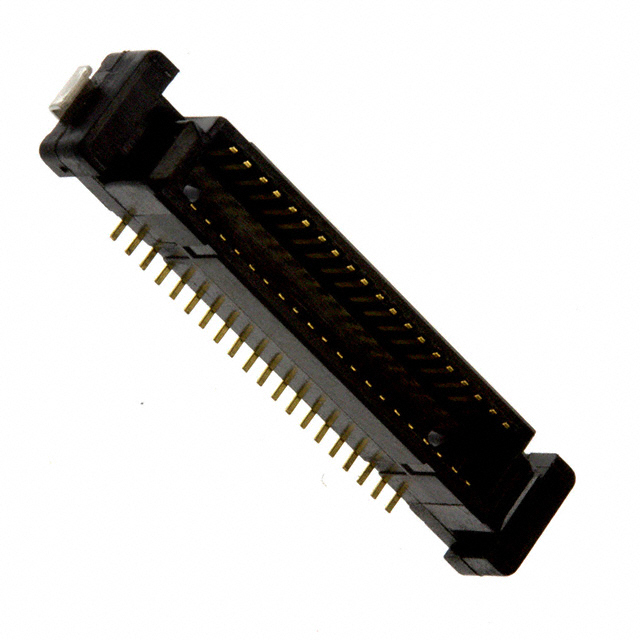

JAE Electronics KX15-40K3DE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40	5 mm 8 mm 11 mm 14 mm 17 mm	Surface Mount	4.75 mm	0.187 in	2
JAE Electronics KX15-40K3D-E1000E	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40	5 mm 8 mm 11 mm 14 mm 17 mm	Surface Mount	4.75 mm	0.187 in	2

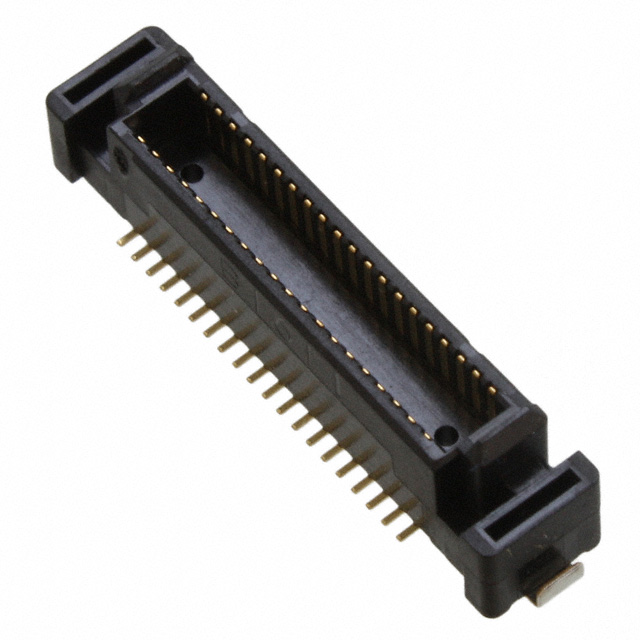

JAE Electronics KX15-40K4D-RE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40	6 mm 9 mm 12 mm 15 mm 18 mm	Surface Mount	5.74 mm	0.226 "	2
JAE Electronics KX15-40K4DE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40	6 mm 9 mm 12 mm 15 mm 18 mm	Surface Mount	5.74 mm	0.226 "	2

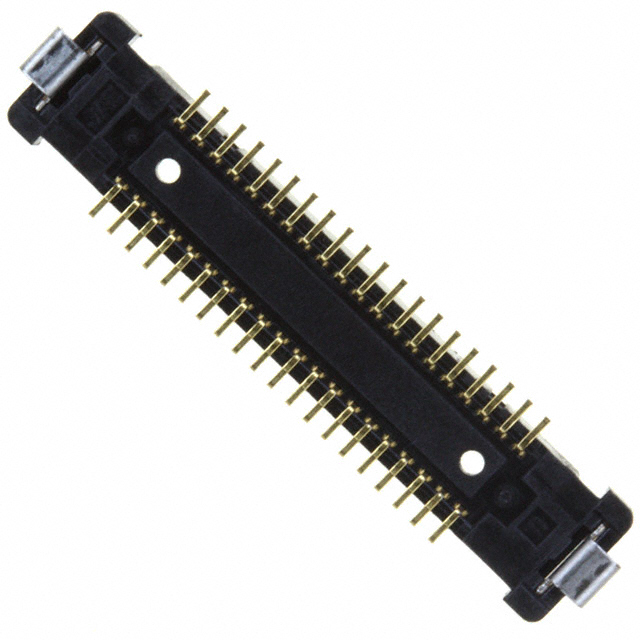

JAE Electronics KX15-40K2D-RE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40	4 mm 7 mm 10 mm 13 mm 16 mm	Surface Mount	3.75 mm	0.148 in	2
JAE Electronics KX15-40KLDL-E1000E	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40		Right Angle Surface Mount	5.74 mm	0.226 "	2

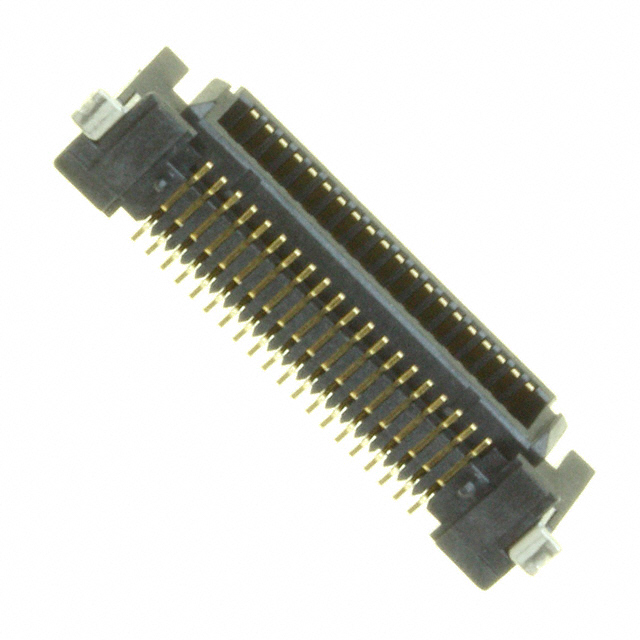

JAE Electronics KX15-40KLDLE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40		Right Angle Surface Mount	5.74 mm	0.226 "	2

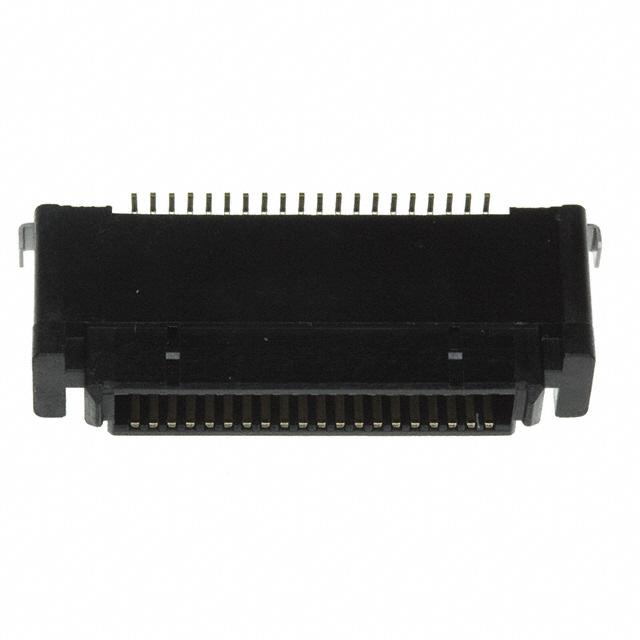

JAE Electronics KX15-40K8DE	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	0.1 Ám	4 Áin	40		Surface Mount	9.75 mm	0.384 in	2
