201021 Series

Slim-Grid Header, 24 Circuits, Through Hole, Right-Angle, Shrouded, 0.38µm Gold (Au) Plated, 2.40mm Tail Length, with Peg, Tube, Lead-Free

Manufacturer: Molex

Catalog

Slim-Grid Header, 24 Circuits, Through Hole, Right-Angle, Shrouded, 0.38µm Gold (Au) Plated, 2.40mm Tail Length, with Peg, Tube, Lead-Free

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Connector Type	Mounting Type	Voltage Rating	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height [z]	Contact Finish - Mating	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Post	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Features
Molex 2010210006	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	2 µin	0.051 µm	6	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall
Molex 2010210156	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	15 µin	0.38 µm	6	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide
Molex 2010212272	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.118 in	3 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	30 Áin	0.76 Ám	22 positions	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide
Molex 2010211158	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.094 in	2.4 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	15 µin	0.38 µm	8	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide
Molex 2010212274	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.118 in	3 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	30 Áin	0.76 Ám	24	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide
Molex 2010213022	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	2 µin	0.051 µm	22 positions	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Pick and Place
Molex 2010213274	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	30 Áin	0.76 Ám	24	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide Pick and Place
Molex 2010213060	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	2 µin	0.051 µm	10	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide Pick and Place
Molex 2010211168	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.094 in	2.4 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	15 µin	0.38 µm	18	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide

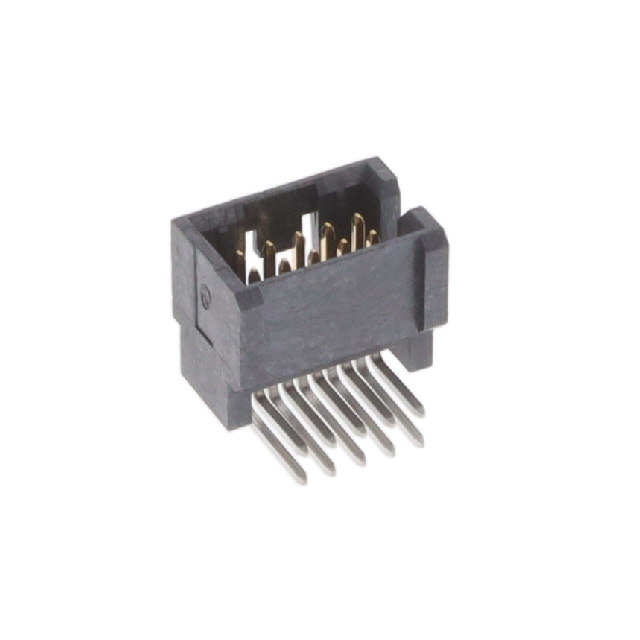

Molex 2010210010	0.05 in	1.27 mm	Square	All	UL94 V-0	Black	Header	Through Hole Right Angle	125 VDC	Male Pin	0.05 in	1.27 mm	2	0.063 in	1.6 mm	3.05 mm	0.12 in	2 çm	78.7 çin	5.4 mm	0.213 in	Gold	Latch Holder	Solder	2 µin	0.051 µm	10	Tin	Copper Alloy	Automotive General Purpose Telecommunications	105 ░C	-55 °C	Shrouded - 4 Wall
