CBS-3 Series

Catalog

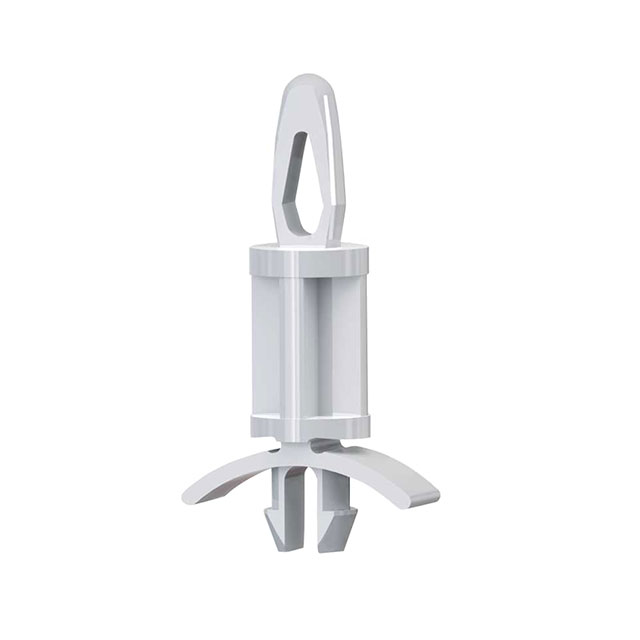

BRD SPT SNAP FIT/LOCK NYLN 3/16"

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Features	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Holding Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Material
Essentra Components CBS-3-19	0.1875 in	0.187 in	4.75 mm	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Fit	3.96 mm	5 32"	0.156 in	20 mm	0.787 in	0.1875 in	0.188 in	1.57 mm	0.062 in	0.0625 in	Snap Lock	Nylon
Essentra Components CBS-3-01	0.1875 in	0.187 in	4.75 mm	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Fit	3.96 mm	5 32"	0.156 in	20 mm	0.787 in	0.1875 in	0.188 in	1.57 mm	0.062 in	0.0625 in	Snap Lock	Nylon
