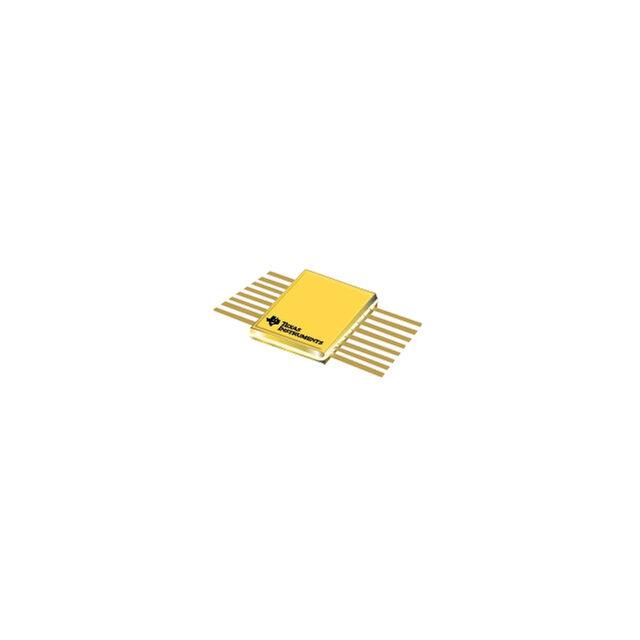

TPS7H1101A-SP Series
Radiation-hardened QMLV, 1.5-V to 7-V input, 3-A low-noise adjustable low-dropout (LDO) regulator
Manufacturer: Texas Instruments
Catalog
Radiation-hardened QMLV, 1.5-V to 7-V input, 3-A low-noise adjustable low-dropout (LDO) regulator
Key Features
• 5962R13202(1):Radiation hardness assurance (RHA) qualified up to total ionizing dose (TID) 100 krad(Si)ELDRS-free: 100 krad(Si)Dose rate: 10 mrad(Si)/sSingle event latch-up (SEL) immune to LET = 85 MeV-cm2/mgSEB and SEGR immune to LET = 85 MeV-cm2/mgSET/SEFI onset threshold > 40 MeV-cm2/mg(2)Specifically designed to always upset low to avoid damage to critical downstream componentSET/SEFI cross-section plot(2)Ultra-low VINrange: 1.5 V to 7 V3-A maximum output currentCurrent share/parallel operation to provide up to 6-A output currentStable with ceramic output capacitor±2% accuracy over line, load, and temperatureProgrammable soft start through external capacitorInput enable across all input voltages and power-good output for power sequencingUltra-low dropout LDO voltage: 62 mV at 1 A (25°C), VOUT= 1.8 VLow noise: 20.33 µVRMS, VIN= 2 V, VOUT= 1.8 V at 3 APSRR: over 45 dB at 1 kHzExcellent load/line transient responseFoldback current limitSee theDesign and developmenttabThermally-enhanced CFP package, 0.4° C/W RθJC5962R13202(1):Radiation hardness assurance (RHA) qualified up to total ionizing dose (TID) 100 krad(Si)ELDRS-free: 100 krad(Si)Dose rate: 10 mrad(Si)/sSingle event latch-up (SEL) immune to LET = 85 MeV-cm2/mgSEB and SEGR immune to LET = 85 MeV-cm2/mgSET/SEFI onset threshold > 40 MeV-cm2/mg(2)Specifically designed to always upset low to avoid damage to critical downstream componentSET/SEFI cross-section plot(2)Ultra-low VINrange: 1.5 V to 7 V3-A maximum output currentCurrent share/parallel operation to provide up to 6-A output currentStable with ceramic output capacitor±2% accuracy over line, load, and temperatureProgrammable soft start through external capacitorInput enable across all input voltages and power-good output for power sequencingUltra-low dropout LDO voltage: 62 mV at 1 A (25°C), VOUT= 1.8 VLow noise: 20.33 µVRMS, VIN= 2 V, VOUT= 1.8 V at 3 APSRR: over 45 dB at 1 kHzExcellent load/line transient responseFoldback current limitSee theDesign and developmenttabThermally-enhanced CFP package, 0.4° C/W RθJC
Description
AI
The TPS7H1101A-SP is an improved version of the TPS7H1101-SP allowing the use of the enable feature across the entire input voltage range. It is a radiation-hardened LDO linear regulator that uses a PMOS pass element configuration. It operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR. The TPS7H1101A-SP features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1101A-SP provides enable on and off functionality, programmable soft start, current sharing capability, and a Power Good open-drain output.
The TPS7H1101A-SP is an improved version of the TPS7H1101-SP allowing the use of the enable feature across the entire input voltage range. It is a radiation-hardened LDO linear regulator that uses a PMOS pass element configuration. It operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR. The TPS7H1101A-SP features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1101A-SP provides enable on and off functionality, programmable soft start, current sharing capability, and a Power Good open-drain output.
