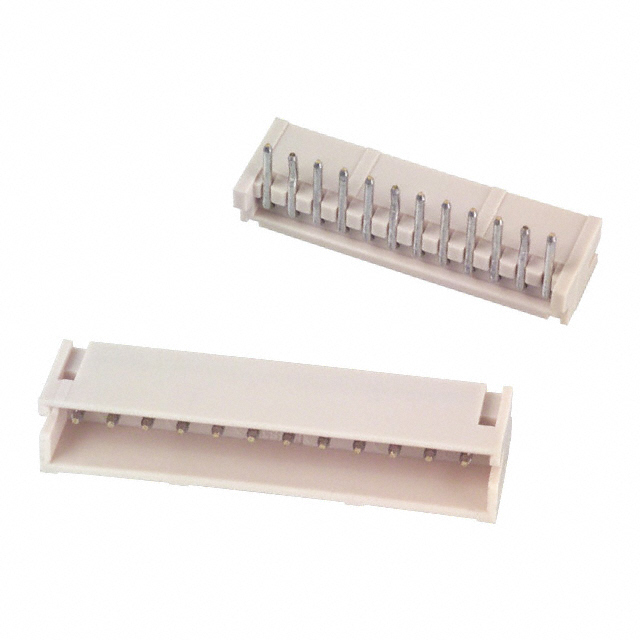

S12B-ZR Series
Manufacturer: JST Sales America Inc.
Catalog
CONN HEADER R/A 12POS 1.5MM
| Part | Number of Positions | Insulation Material | Style | Termination | Contact Shape | Mounting Type | Connector Type | Contact Material | Material Flammability Rating | Insulation Height | Insulation Height | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Contact Type | Voltage Rating | Number of Rows | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Shrouding | Contact Length - Mating | Contact Length - Mating | Features | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

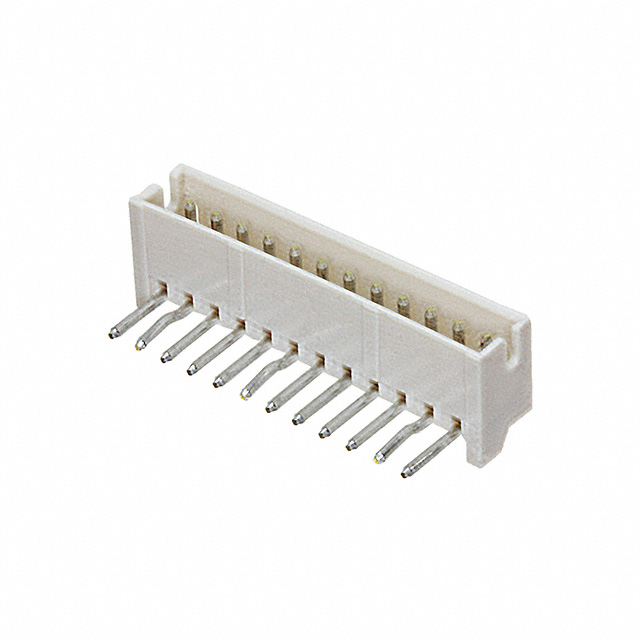

 JST Sales America Inc. | 12 | Glass Filled Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | Solder | Circular | Right Angle Through Hole | Header | Brass | UL94 V-0 | 3.7 mm | 0.146 in | Detent Lock | 85 °C | -25 °C | 0.134 " | 3.4 mm | Male Pin | 50 V | 1 | All | Tin | Natural | Shrouded - 4 Wall | ||||

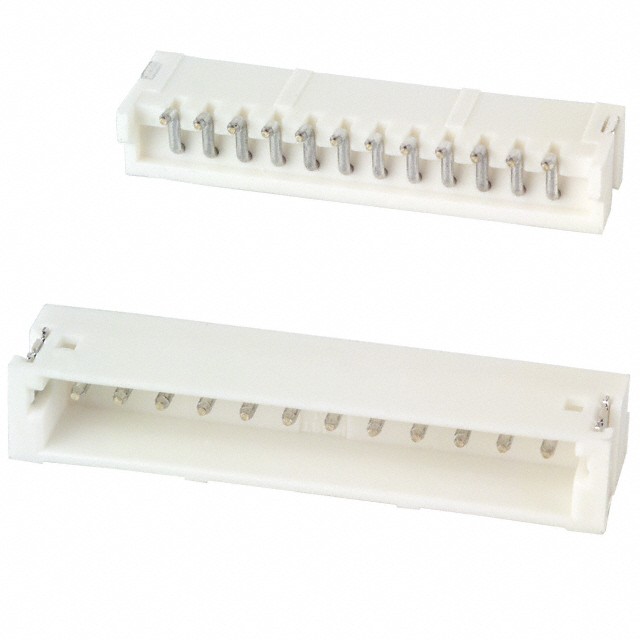

 JST Sales America Inc. | 12 | Glass Filled Nylon 4/6 Polyamide (PA46) | Board to Cable/Wire | Solder | Circular | Right Angle Surface Mount | Header | Brass | UL94 V-0 | 3.7 mm | 0.146 in | Detent Lock | 85 °C | -25 °C | Male Pin | 50 V | 1 | All | Tin | Natural | Shrouded - 4 Wall | 2.4 mm | 0.094 in | Board Guide | |||
 JST Sales America Inc. | 12 | Glass Filled Nylon 6/6 Polyamide (PA66) | Board to Cable/Wire | Solder | Circular | Right Angle Through Hole | Header | Brass | UL94 V-0 | 3.7 mm | 0.146 in | Detent Lock | 85 °C | -25 °C | 0.106 in | Male Pin | 50 V | 1 | All | Tin | Natural | Shrouded - 4 Wall | 2.4 mm | 0.094 in | 2.69 mm | ||
 JST Sales America Inc. | 12 | Nylon 6T Polyamide (PA6T) | Board to Cable/Wire | Solder | Circular | Right Angle Surface Mount | Header | Brass | UL94 V-0 | 3.7 mm | 0.146 in | Detent Lock | 85 °C | -25 °C | Male Pin | 50 V | 1 | All | Tin | Natural | Shrouded - 4 Wall | Solder Retention |
