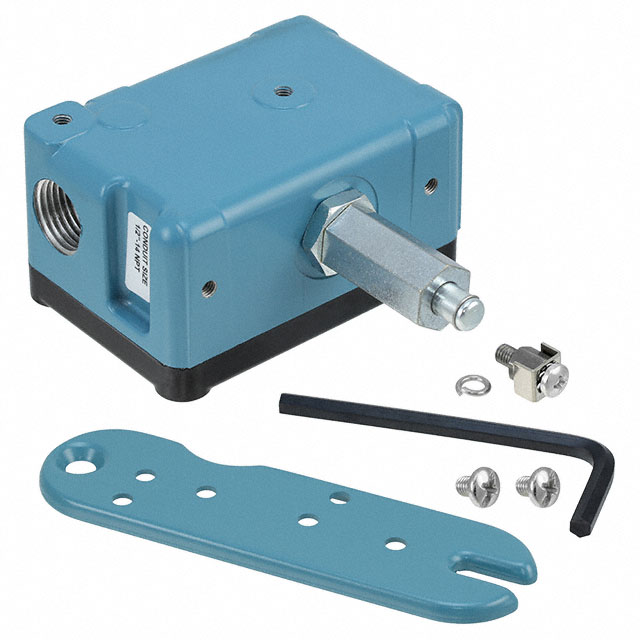

EX-Q80 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Switch Function | Pretravel | Pretravel | Current Rating (Amps) | Circuit | Voltage Rating - AC | Mounting Type | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Overtravel | Overtravel | Operating Position | Operating Position | Operating Force | Voltage Rating - DC | Differential Travel | Differential Travel | Actuator Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | On-Mom | 0.078 " | 2 mm | 15 A 500 mA | SPDT | 125 V | Chassis Mount | Screw Terminal | -40 °C | 71 °C | 4.75 mm | 0.187 in | 47.2 mm | 1.859 in | 1360 gf | 125 VDC | 0.1 mm | 0.004 in | Round (Pin Plunger) | Explosion Proof |
