FKA2-28089 Series
Manufacturer: Qualtek
Beta
⌘K

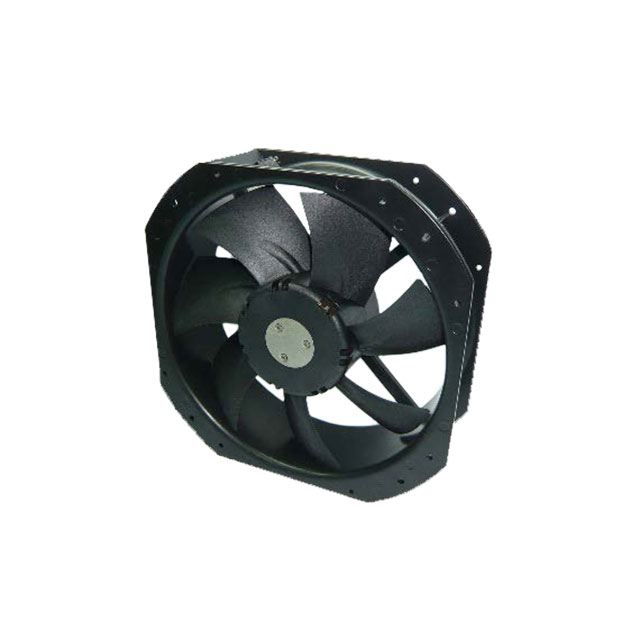

AC FANS AC FAN 280X89MM BALL 115VAC TERM
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Noise | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Termination | Weight | Weight | Width [y] | Bearing Type | Static Pressure | Static Pressure | Approval Agency | Fan Type | Air Flow | Air Flow | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Plastic | Aluminum | 2.6 A | 78 dB(A) | 260 Watts | 280 mm | 280 mm | 115 VAC | 70 °C | -10 °C | 3000 RPM | 2 | 7.7 lbs | 3.5 kg | 89 mm | Ball | 0.044 in H2O | 11 Pa | CE TUV UL | Tubeaxial | 1400 CFM | 39.2 m³/min | |
Qualtek | Plastic | Aluminum | 1.22 A | 78 dB(A) | 260 Watts | 280 mm | 280 mm | 230 VAC | 70 °C | -10 °C | 3000 RPM | 7.7 lbs | 3.5 kg | 89 mm | Ball | 0.044 in H2O | 11 Pa | CE TUV UL | Tubeaxial | 1400 CFM | 39.2 m³/min | 2 Wire Leads |
