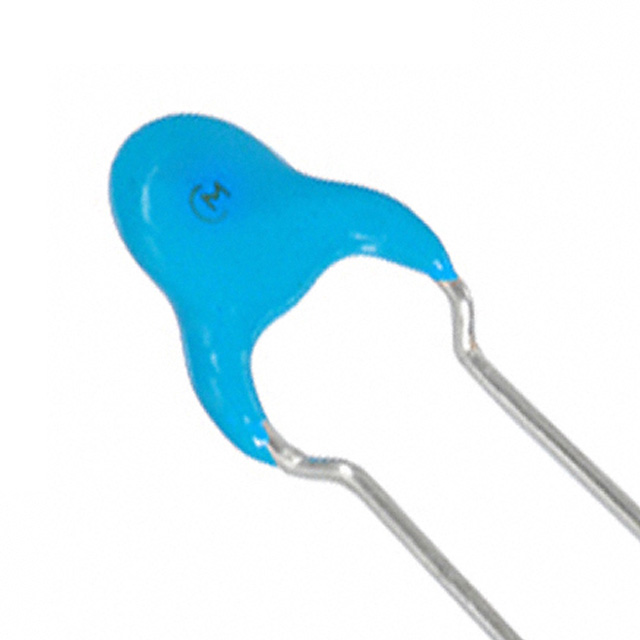

DEBB33A Series

Catalog

CAP CER 3300PF 1KV RADIAL

Part	Voltage - Rated	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Features	Tolerance	Lead Spacing	Lead Spacing	Lead Style	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Murata Electronics DEBB33A332KB2B	1 kV	1000 V	0.512 "	13 mm	Disc Radial	High Voltage	10 %	0.197 "	5 mm	Formed Leads	B	0.394 in	10 mm	0.0033 µF	85 °C	-25 °C	Through Hole	General Purpose
Murata Electronics DEBB33A221KC1B	1 kV	1000 V	0.295 in		Disc Radial	High Voltage	10 %	0.197 "	5 mm	Straight	B	0.177 "	4.5 mm	220 pF	85 °C	-25 °C	Through Hole	General Purpose	7.5 mm
Murata Electronics DEBB33A471KP2A	1 kV	1000 V			Disc Radial	High Voltage	10 %	0.197 "	5 mm	Straight	B	0.197 in	5 mm	470 pF	85 °C	-25 °C	Through Hole	General Purpose	8 mm	0.315 in
Murata Electronics DEBB33A331KC1B	1 kV	1000 V	0.295 in		Disc Radial	High Voltage	10 %	0.197 "	5 mm	Straight	B	0.177 "	4.5 mm	330 pF	85 °C	-25 °C	Through Hole	General Purpose	7.5 mm
Murata Electronics DEBB33A222KA2B	1 kV	1000 V			Disc Radial	High Voltage	10 %	0.197 "	5 mm	Formed Leads	B	0.354 in	9 mm	2200 pF	85 °C	-25 °C	Through Hole	General Purpose		0.472 in	12 mm
