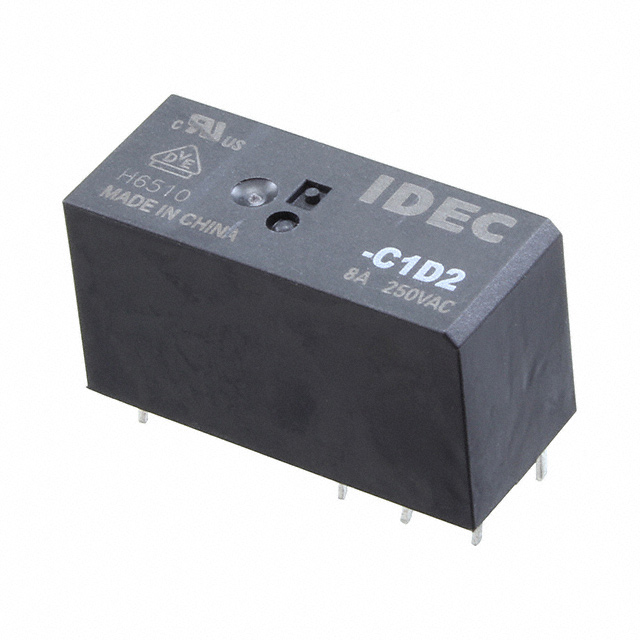

RV2H-2G Series
Manufacturer: IDEC
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 8A 5V
| Part | Coil Resistance | Operate Time | Contact Rating (Current) | Approval Agency | Coil Type | Contact Material | Termination Style | Relay Type | Mounting Type | Must Operate Voltage | Coil Voltage | Release Time | Must Release Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 80 Ohms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 4 VDC | 5 VDC | 15 ms | 0.42 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 0.075 A |
IDEC | 1.2 kOhms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 19.2 VDC | 24 VDC | 15 ms | 1.68 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 0.02 A |
 IDEC | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 4 VDC | 5 VDC | 15 ms | 0.35 VDC | DPDT (2 Form C) | 70 °C | -40 C | 250 VAC | ||
IDEC | 205 Ohms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 7.2 VDC | 9 VDC | 15 ms | 0.63 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 44 mA |
IDEC | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 14.4 VDC | 18 VDC | 15 ms | 1.26 VDC | DPDT (2 Form C) | 70 °C | -40 C | 250 VAC | ||
21.5 kOhms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 88 VDC | 110 VDC | 15 ms | 7.7 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 5.8 mA | |
IDEC | 6.67 kOhms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 48 VDC | 60 VDC | 15 ms | 4.2 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 9 mA |
IDEC | 375 Ohms | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 9.6 VDC | 12 VDC | 15 ms | 0.84 VDC | DPDT (2 Form C) | 55 °C | -40 C | 250 VAC | 32 mA |
IDEC | 15 ms | 8 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 7.2 VDC | 9 VDC | 15 ms | 0.63 VDC | DPDT (2 Form C) | 70 °C | -40 C | 250 VAC | ||
IDEC | 378.947 Ohms | 15 ms | 6 A | CE cULus | Non Latching | Gold (Au) Silver Nickel (AgNi) | PC Pin | General Purpose | Through Hole | 9.6 VDC | 12 VDC | 15 ms | 0.84 VDC | DPDT (2 Form C) | 70 °C | -40 C | 250 VAC | 31.7 mA |
