19400030 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ZINC BODY, SCREW, 3A
| Part | Lock Location | Housing Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Housing Finish | Size | Ingress Protection | Ingress Protection | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Thread Size | Style | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

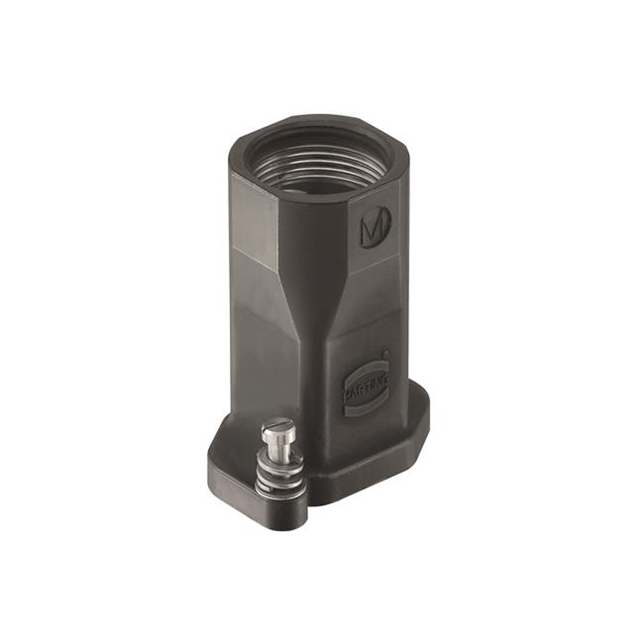

 HARTING | Screw Locks on Hood | Black | 45.5 mm | 32.4 mm | 2.156 " | 1.791 " | 1.276 " | 54.75 mm | Chromate | 3 A | Dust Tight Water Resistant Waterproof | IP68 | IP65 | Hood | 125 °C | -40 C | Zinc Die Cast | M20 | Top Entry | ||

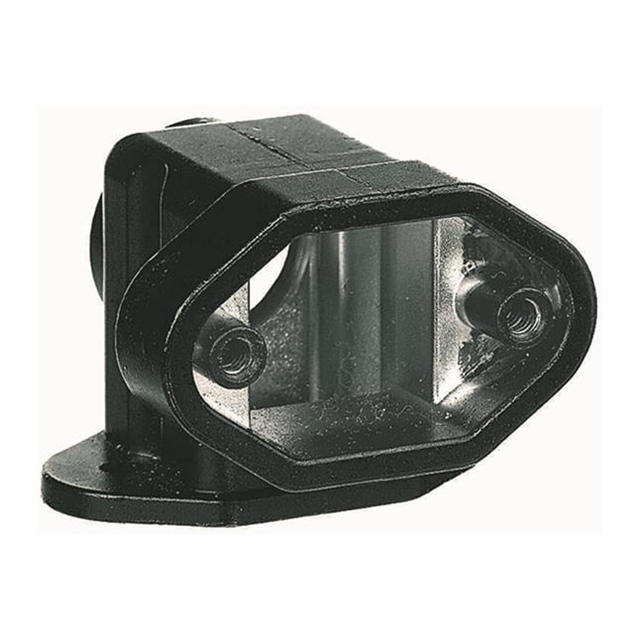

 HARTING | Screw Locks on Hood | Black | Chromate | 3 A | Base - Panel Mount 90° | 125 °C | -40 C | Zinc Die Cast | M20 | Side Entry | |||||||||||

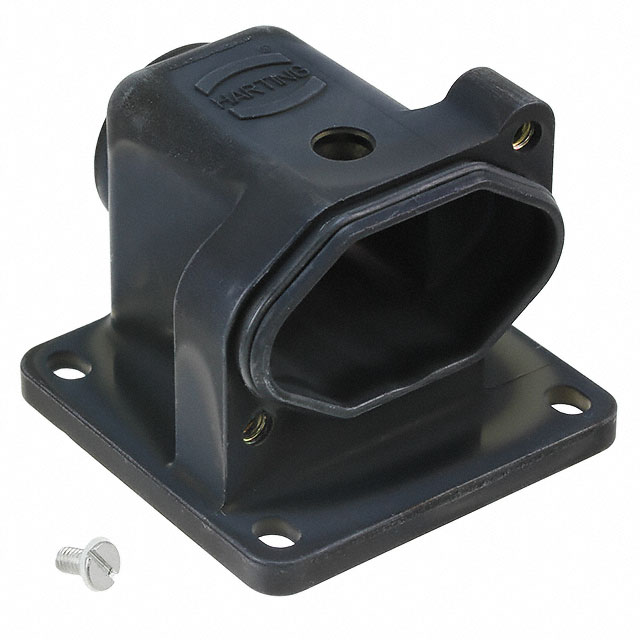

 HARTING | Screw Locks on Hood | Black | 45.4 mm | 1.354 in | 1.787 in | 1.083 in | Chromate | 3 A | Base - Panel Mount 90° | 125 °C | -40 C | Zinc Die Cast | M20 | Side Entry | 34.4 mm | 27.5 mm | |||||

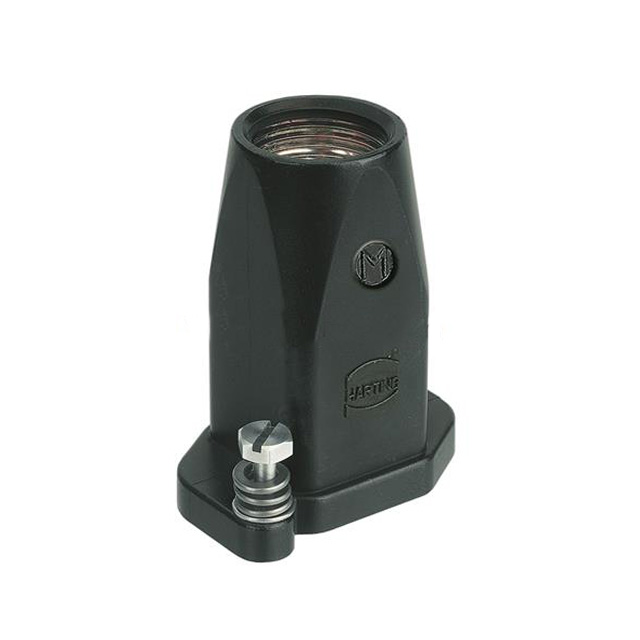

 HARTING | Screw Locks on Hood | Black | Chromate | 3 A | Dust Tight Water Resistant Waterproof | IP68 | IP65 | Hood | 125 °C | -40 C | Zinc Die Cast | M25 | Top Entry |
