FI-S25 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG HSG 25POS 1.25MM
| Part | Note | Fastening Type | Number of Rows | Contact Termination | Number of Positions | Color | Connector Type | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Mounting Type | Insulation Material | Termination | Contact Finish - Mating | Insulation Color | Pitch - Mating | Pitch - Mating | Voltage Rating | Material Flammability Rating | Contact Shape | Features | Shrouding | Insulation Height | Insulation Height | Contact Finish - Post | Contact Material | Number of Positions Loaded | Current Rating (Amps) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

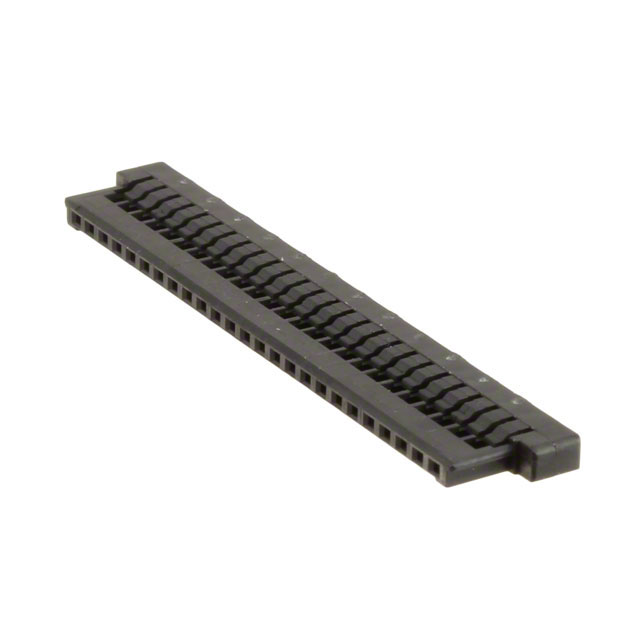

 JAE Electronics | Contacts Not Included | Friction Lock | 1 | Crimp | 25 | Black | Plug | 0.049 in | 1.25 mm | 80 °C | -40 C | Female Socket | Free Hanging (In-Line) | Glass Filled Nylon 6/6 Polyamide (PA66) | |||||||||||||||||

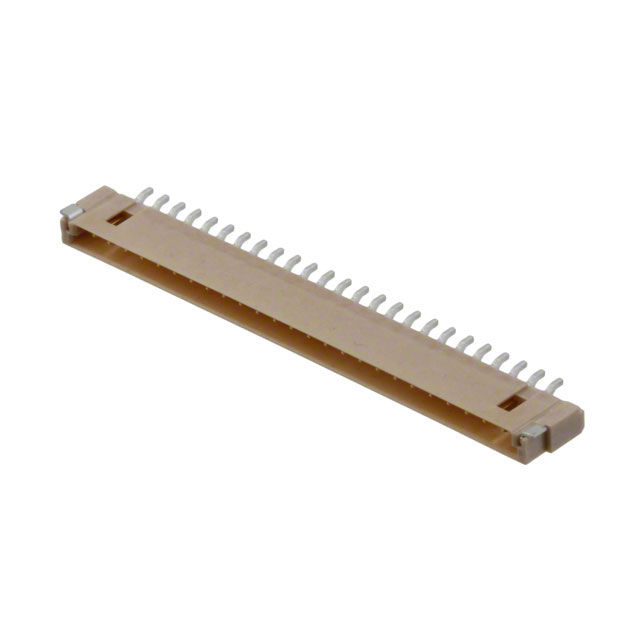

 JAE Electronics | Friction Lock | 1 | 25 | Receptacle | 80 °C | -40 C | Male Pin | Right Angle Surface Mount | Solder | Gold | Beige | 0.049 in | 1.25 mm | 200 V | UL94 V-0 | Square | Solder Retention | Shrouded - 4 Wall | 1.8 mm | 0.071 in | Tin Tin-Alloy | Copper Alloy | All | 1 A | Board to Cable/Wire |
