2823244 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

26P,2MM,PL HDR,DRVT,SMD,0.76AU,T

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Post	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Current Rating (Amps)	Mounting Type	Fastening Type	Contact Finish - Mating	Contact Shape	Voltage Rating	Termination	Connector Type	Shrouding	Insulation Color
TE Connectivity Raychem Cable Protection 2-2823244-6	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	26	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black

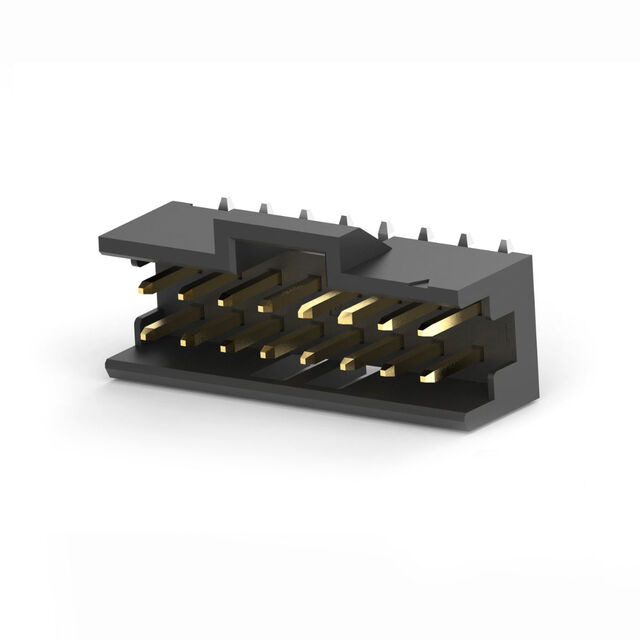

TE Connectivity Raychem Cable Protection 3-2823244-2	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze		Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black
TE Connectivity Raychem Cable Protection 2-2823244-8	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	28	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black

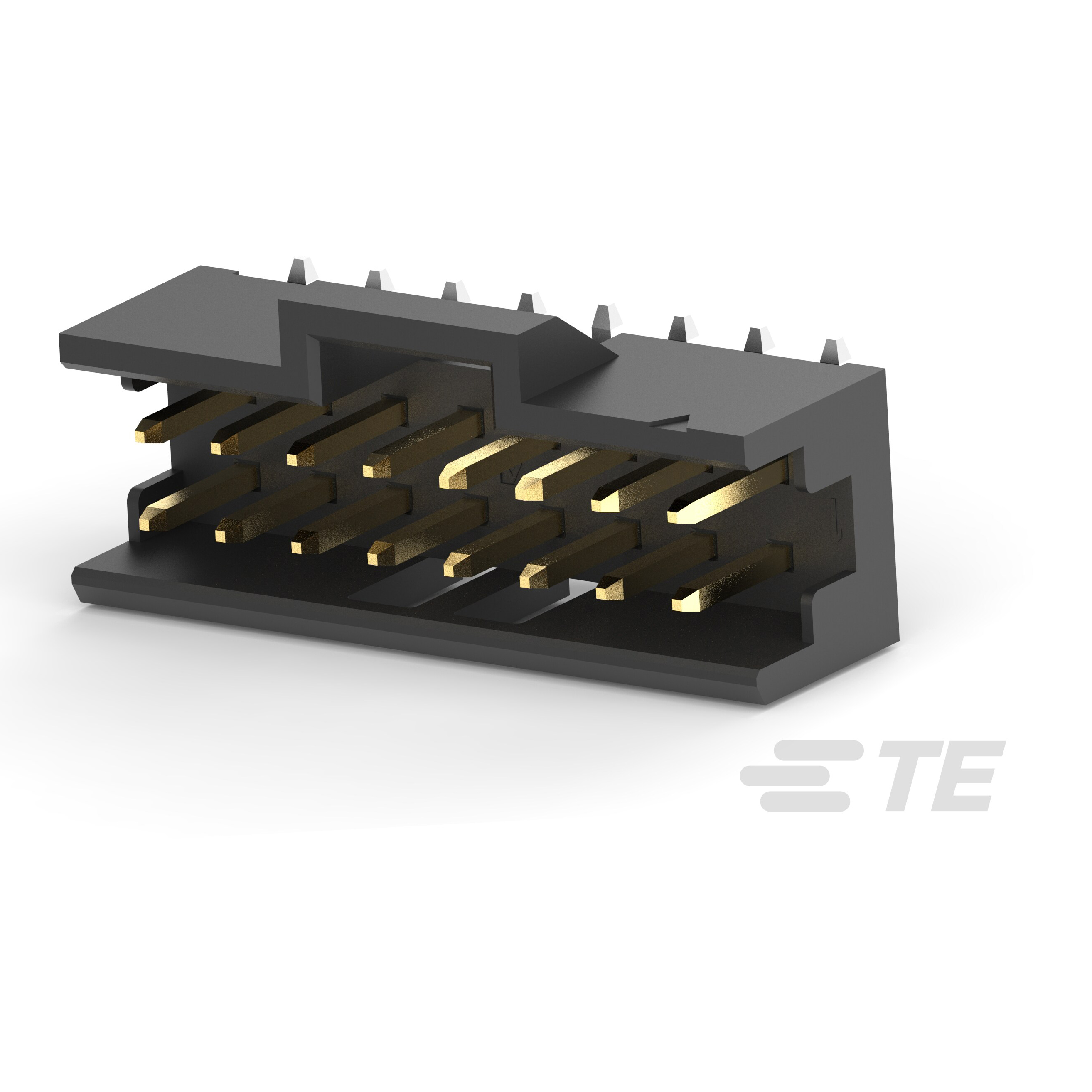

TE Connectivity Raychem Cable Protection 2-2823244-0	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	20	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black
TE Connectivity Raychem Cable Protection 1-2823244-8	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	18	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black
TE Connectivity Raychem Cable Protection 2823244-6	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	6	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black

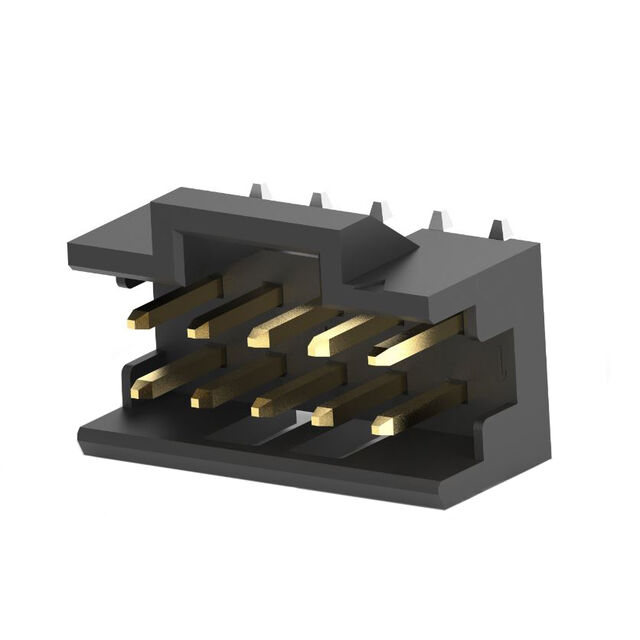

TE Connectivity Raychem Cable Protection 1-2823244-2	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	12	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black

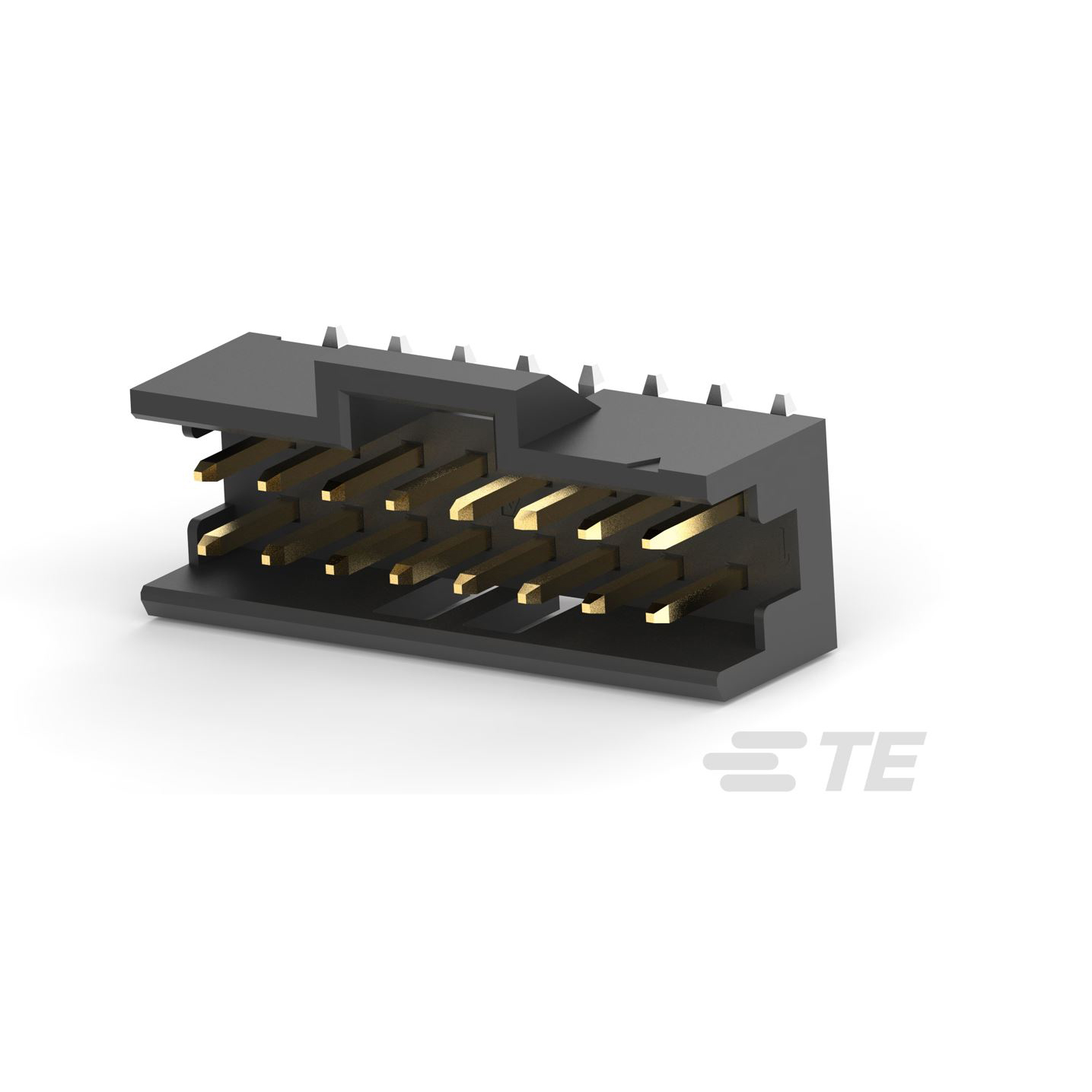

TE Connectivity Raychem Cable Protection 2-2823244-2	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	22 positions	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black

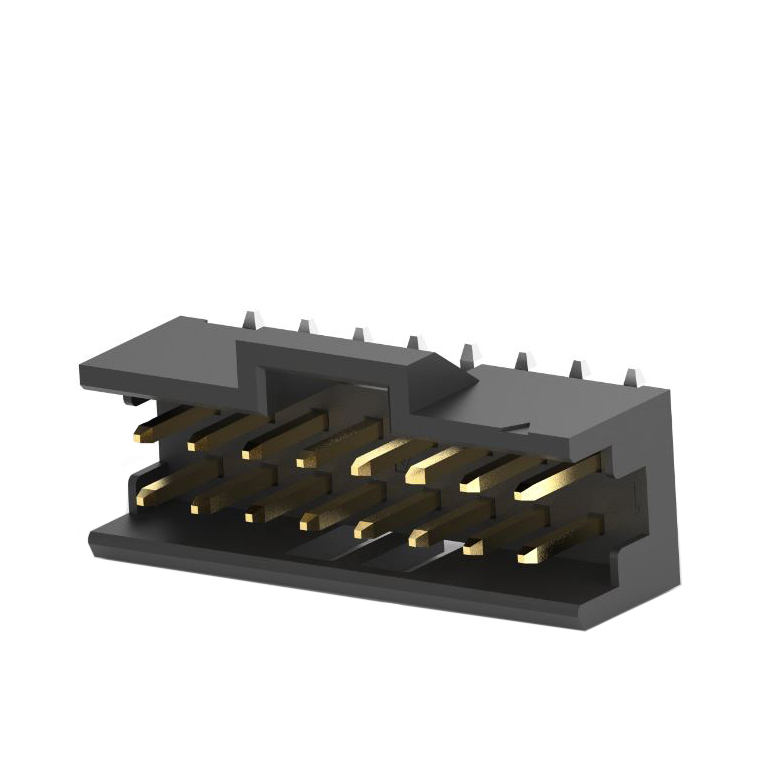

TE Connectivity Raychem Cable Protection 1-2823244-4	157.5 Áin	4 Ám	0.079 in	2 mm	0.079 in	2 mm	All	Thermoplastic	4 mm	0.157 in	Phosphor Bronze	14	Pick and Place	125 °C	-40 °C	UL94 V-0	Tin	Male Pin	5.51 mm	0.217 in	2	30 Áin	0.76 Ám	Board to Board Cable	2 A	Surface Mount	Latch Holder	Gold	Square	125 VAC	Solder	Header	Shrouded - 2 Wall	Black
