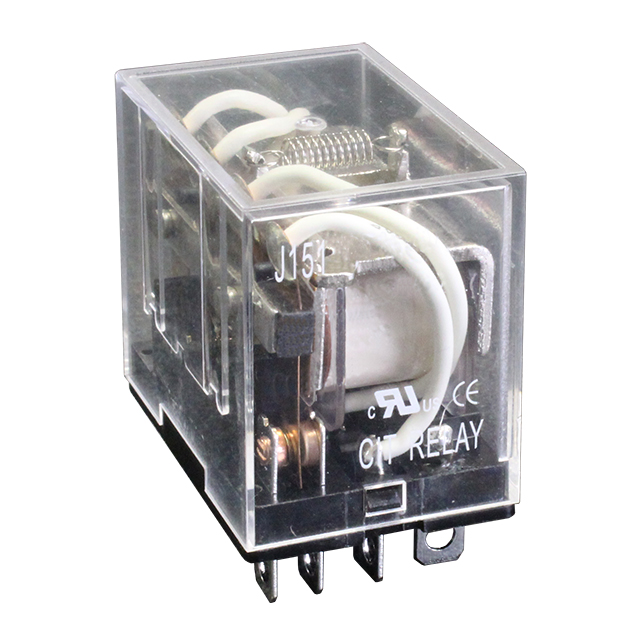

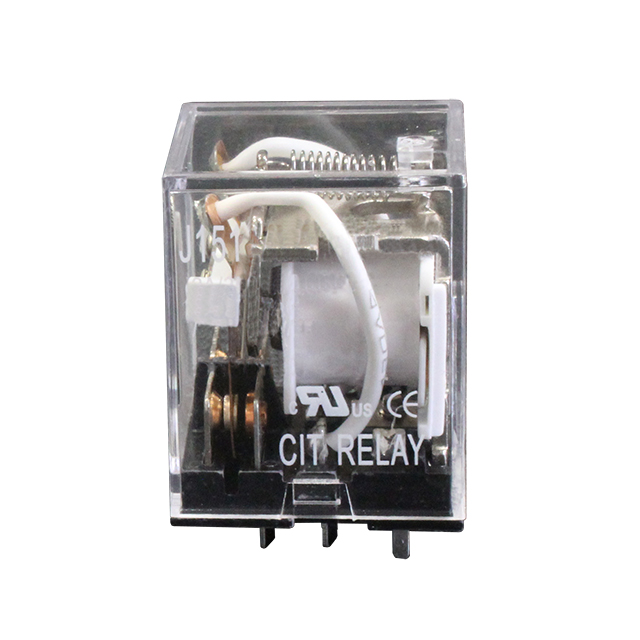

J1511C Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 48V
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Type | Release Time | Contact Rating (Current) | Coil Current | Mounting Type | Relay Type | Switching Voltage [Max] | Contact Form | Must Operate Voltage | Load - Max Switching | Operate Time | Termination Style | Contact Material | Coil Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 735 Ohms | 85 °C | -40 C | 14.4 VAC | Non Latching | 25 ms | 12 A | 65.3 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 38.4 VAC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 48 VAC | |
 CIT Relay and Switch | 4.55 kOhms | 85 °C | -40 C | 36 VAC | Non Latching | 25 ms | 12 A | 26.4 mA | Chassis Mount | General Purpose | 300 VAC | SPDT (1 Form C) | 96 VAC | 6000 VA | 25 ms | Plug In | Silver Cadmium Oxide (AgCdO) | 120 VAC | |
CIT Relay and Switch | 1.5 kOhms | 85 °C | -40 C | 3.6 VDC | Non Latching | 25 ms | 12 A | 24 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 27 VDC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 36 VDC | |
CIT Relay and Switch | 2.6 kOhms | 85 °C | -40 C | 4.8 VDC | Non Latching | 25 ms | 12 A | 18.5 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 36 VDC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 48 VDC | |
CIT Relay and Switch | 4.55 kOhms | 85 °C | -40 C | 36 VAC | Non Latching | 25 ms | 12 A | 26.4 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 96 VAC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 120 VAC | |
CIT Relay and Switch | 735 Ohms | 85 °C | -40 C | 14.4 VAC | Non Latching | 25 ms | 12 A | 65.3 mA | Chassis Mount | General Purpose | 300 VAC | SPDT (1 Form C) | 38.4 VAC | 6000 VA | 25 ms | Plug In | Silver Cadmium Oxide (AgCdO) | 48 VAC | |
CIT Relay and Switch | 160 Ohms | 85 °C | -40 C | 1.2 VDC | Non Latching | 25 ms | 12 A | 0.075 A | Chassis Mount | General Purpose | 300 VAC | SPDT (1 Form C) | 9 VDC | 6000 VA | 25 ms | Plug In | Silver Cadmium Oxide (AgCdO) | 12 VDC | |
CIT Relay and Switch | 4.55 kOhms | 85 °C | -40 C | 36 VAC | Non Latching | 25 ms | 12 A | 26.4 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 96 VAC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 120 VAC | Lighted Indicator |
 CIT Relay and Switch | 184 Ohms | 85 °C | -40 C | 7.2 VAC | Non Latching | 25 ms | 12 A | 130.4 mA | Socketable | General Purpose | 300 VAC | SPDT (1 Form C) | 19.2 VAC | 6000 VA | 25 ms | Plug In | Silver Cadmium Oxide (AgCdO) | 24 VAC | |
CIT Relay and Switch | 53.778 kOhms | 85 °C | -40 C | 22 VDC | Non Latching | 25 ms | 12 A | 4.1 mA | Through Hole | General Purpose | 300 VAC | SPDT (1 Form C) | 165 VDC | 6000 VA | 25 ms | PC Pin | Silver Cadmium Oxide (AgCdO) | 220 VDC | Lighted Indicator |
