R12527 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

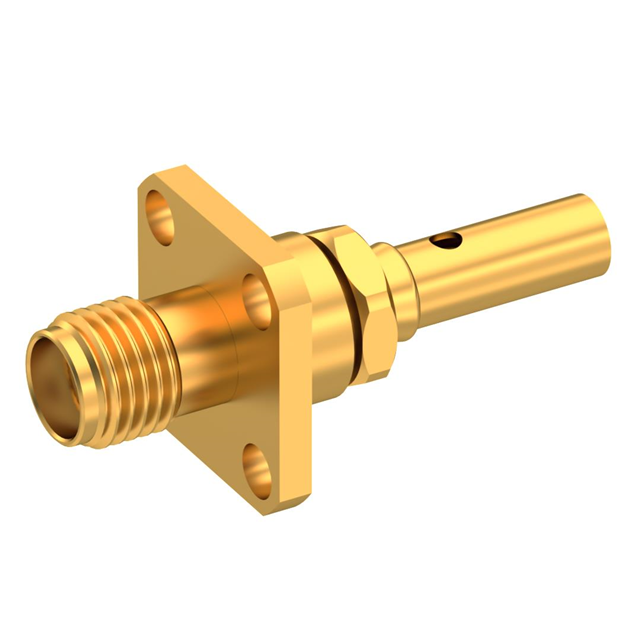

SMA / STRAIGHT SQUARE FLANGE JAC
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Body Finish | Dielectric Material | Center Contact Plating | Mounting Type | Center Contact Material | Contact Termination | Cable Group | Cable Group | Number of Ports | Housing Color | Impedance | Connector Style | Connector Type | Shield Termination | Fastening Type | Frequency - Max [Max] | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Stainless Steel | 500 V | Gold | Polytetrafluoroethylene (PTFE) | Gold | Panel Mount | Beryllium Copper | Crimp Solder | RG-174 | 316 | 1 | Gold | 50 Ohms | SMA | Female Socket Jack | Clamp | Threaded | 12.4 GHz | Flange |
