C1206C Series
Manufacturer: KEMET
Beta
⌘K
CAP, 0.033ΜF, 630V, 10%, X7R, 1206
| Part | Features | Voltage - Rated | Mounting Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Tolerance | Applications | Ratings | Temperature Coefficient | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | High Voltage Low ESL | 630 V | MLCC Surface Mount | 0.075 in | 1.9 mm | 10 % | Automotive Bypass Decoupling | AEC-Q200 | X7R | -55 C | 125 °C | 0.033 çF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) |

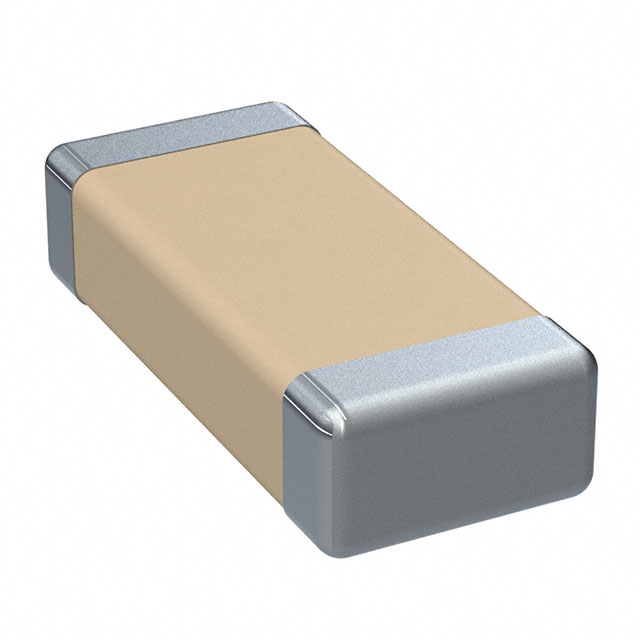

 KEMET | High Temperature Low ESL | 10 V | MLCC Surface Mount | 0.035 " | 0.88 mm | 1 % | General Purpose | X8R | -55 C | 150 °C | 15 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | |
KEMET | Low ESL | 200 VDC | MLCC Surface Mount | 0.035 " | 0.88 mm | 5 % | General Purpose | C0G NP0 | -55 C | 125 °C | 22 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | |
KEMET | High Temperature Low ESL | 100 V | MLCC Surface Mount | 0.035 " | 0.88 mm | 2 % | General Purpose | X8R | -55 C | 150 °C | 18 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | |
KEMET | 250 V | MLCC Surface Mount | 0.035 " | 0.88 mm | 20 % | ESD Protection | X7R | -55 C | 125 °C | 15000 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | ||
KEMET | Low Dissipation Factor Low ESL | 50 VDC | MLCC Surface Mount | 0.035 " | 0.88 mm | 10 % | Automotive | AEC-Q200 | U2J | -55 C | 125 °C | 0.027 µF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) |
KEMET | 25 VDC | MLCC Surface Mount | 0.035 " | 0.88 mm | 20 % | ESD Protection | X7R | -55 C | 125 °C | 0.0033 µF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | ||

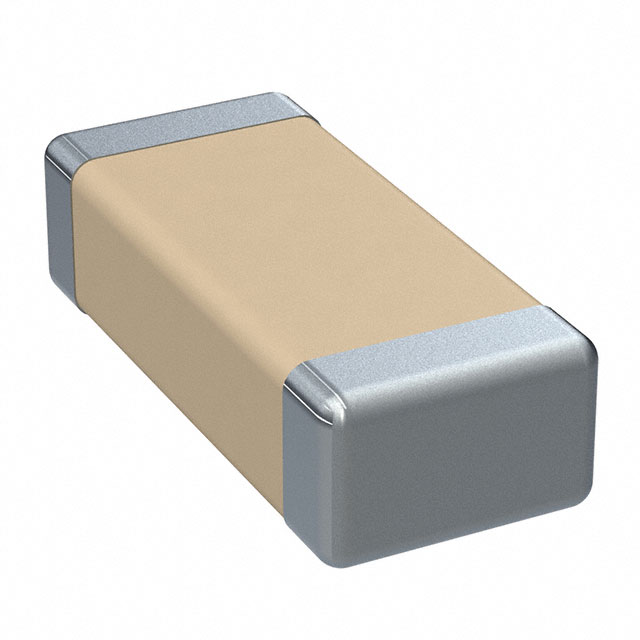

 KEMET | High Temperature Low ESL | 100 V | MLCC Surface Mount | 0.039 in | 1 mm | 5 % | General Purpose | X8R | -55 C | 150 °C | 2700 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | |
Low ESL Low ESR | 50 VDC | MLCC Surface Mount | 0.039 in | 1 mm | 20 % | Automotive ESD Protection | AEC-Q200 | C0G NP0 | -55 C | 125 °C | 1500 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | |
KEMET | 25 VDC | MLCC Surface Mount | 0.035 " | 0.88 mm | 5 % | ESD Protection | X7R | -55 C | 125 °C | 10000 pF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) |
