RB33P06C Series

Manufacturer: Serpac

Catalog

BOX PLASTIC 3.23"L X 3.15"W

Part	Area (L x W)	Area (L x W)	Ratings	Material Flammability Rating	Design	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Color	Thickness	Thickness	Height [z]	Height [z]
Serpac RB33P06C16G	66 cm²	10.3 in²	IP67 NEMA 4	UL94 V-0	Cover Included	Plastic Polycarbonate	3.23 in	3.15 in	82.04 mm	80.01 mm	Box	Clear Cover/Door Gray	3.05 mm	0.12 "	2.17 "	55.12 mm

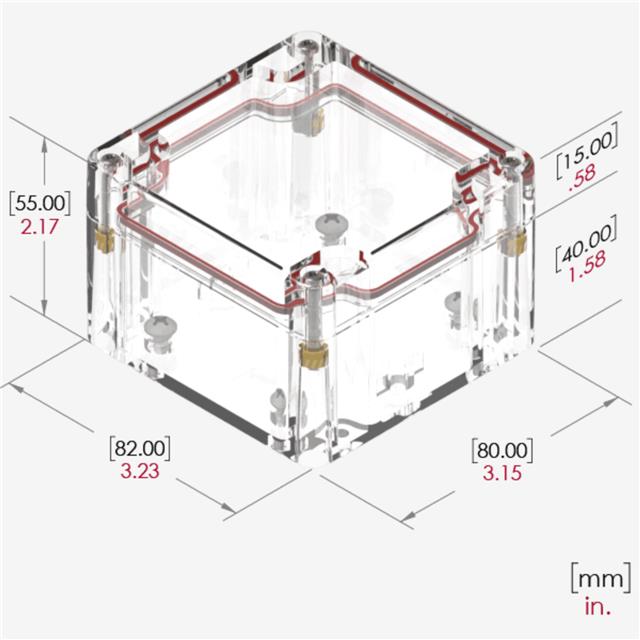

Serpac RB33P06C16C	66 cm²	10.3 in²	IP67 NEMA 4	UL94 V-0	Cover Included	Plastic Polycarbonate	3.23 in	3.15 in	82.04 mm	80.01 mm	Box	Clear	3.05 mm	0.12 "	2.17 "	55.12 mm

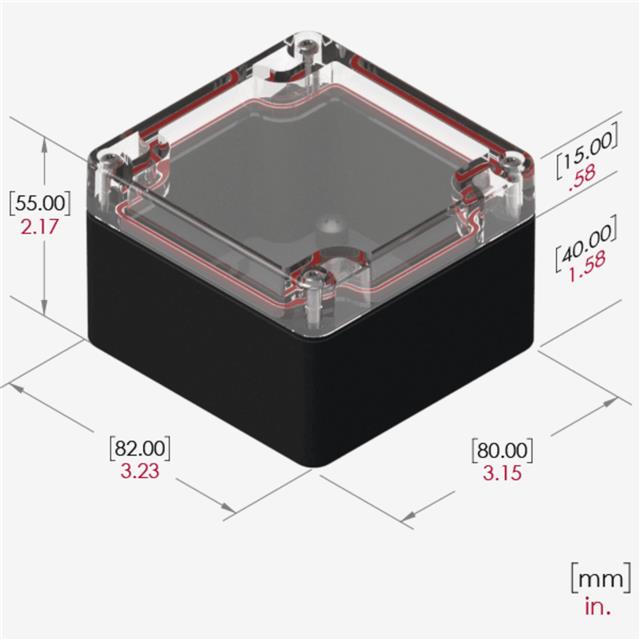

Serpac RB33P06C16B	66 cm²	10.3 in²	IP67 NEMA 4	UL94 V-0	Cover Included	Plastic Polycarbonate	3.23 in	3.15 in	82.04 mm	80.01 mm	Box	Black Clear Cover/Door	3.05 mm	0.12 "	2.17 "	55.12 mm
