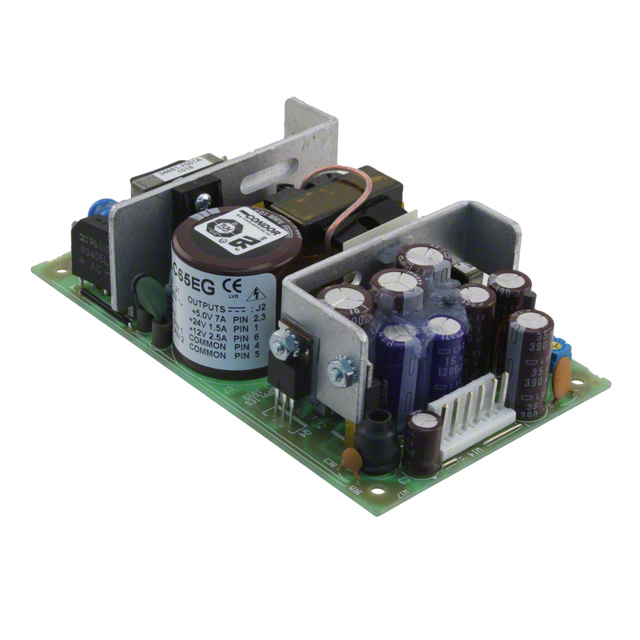

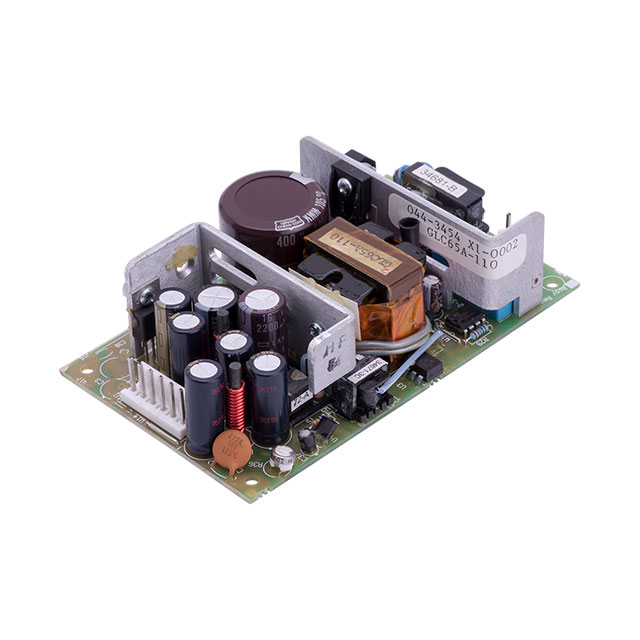

GLC65 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 5V 24V 12V 65W
| Part | Minimum Load Required | Current - Output 2 | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 3 | Voltage - Output 3 | Current - Output 1 | Number of Outputs | Efficiency | Approval Agency | Voltage - Output 2 | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Features | Type | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 1.5 A | Chassis Mount | 50 °C | 0 °C | 5 V | 2.5 A | 12 V | 7 A | 3 | 80 % | CE cURus TUV | 24 V | ITE (Commercial) | 5 " | 127 mm | 76.2 mm | 31.8 mm | 3 " | 1.25 in | Adjustable Output Remote Sense Universal Input | Open Frame | 264 VAC | 90 VAC | |
SL POWER / Advanced Energy | 3 A | Chassis Mount | 50 °C | 0 °C | 5 V | 2.5 A | -12 V | 7 A | 3 | 80 % | CE cURus TUV | 12 V | ITE (Commercial) | 5 " | 127 mm | 76.2 mm | 31.8 mm | 3 " | 1.25 in | Adjustable Output Remote Sense Universal Input | Open Frame | 264 VAC | 90 VAC | |
SL POWER / Advanced Energy | 2.5 A | Chassis Mount | 50 °C | 0 °C | 5.1 V | 2 A | -15 V | 7 A | 3 | 80 % | CE cURus TUV | 15 V | ITE (Commercial) | 5 " | 127 mm | 76.2 mm | 31.8 mm | 3 " | 1.25 in | Adjustable Output Remote Sense Universal Input | Open Frame | 264 VAC | 90 VAC |
