105314 Series

Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 10 Circuits, 0.76µm Gold (Au) Plating, Lubricated, Natural, Glow-Wire Capable, Tape and Reel

Manufacturer: Molex

Catalog

Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 10 Circuits, 0.76µm Gold (Au) Plating, Lubricated, Natural, Glow-Wire Capable, Tape and Reel

Part	Insulation Material	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Contact Finish - Mating	Connector Type	Features	Style	Shrouding	Contact Material	Contact Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Length - Post [x]	Current Rating (Amps)

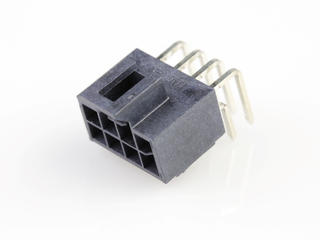

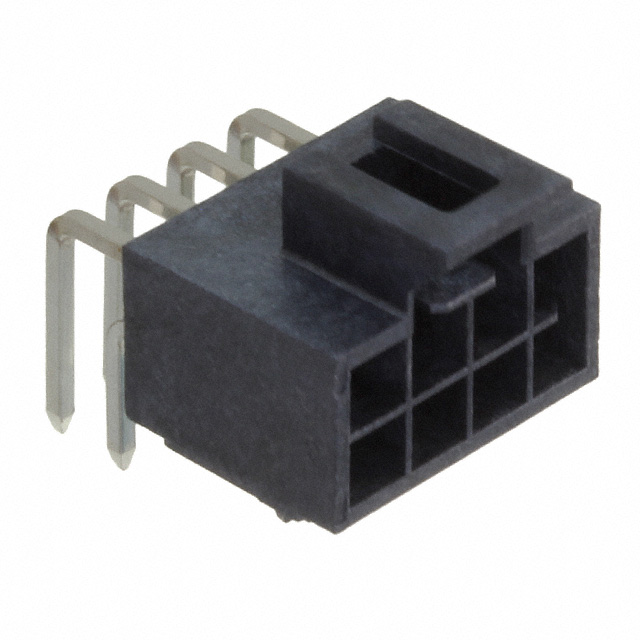

Molex 1053141308	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	8	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	105 ░C	2	250 VDC	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm

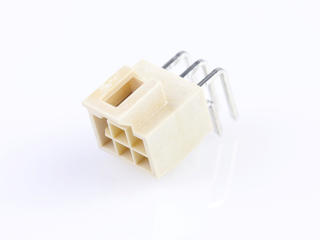

Molex 1053142306	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	6	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	105 ░C	2	250 VDC	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Natural	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm
Molex 1053142204	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	4	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	105 ░C	2	250 VDC	15 µin	0.38 µm	Automotive General Purpose Industrial Medical Military Telecommunications	Natural	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm
Molex 1053141104	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	4	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	105 ░C	2	250 VDC	59 Áin	1.5 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square		Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm
Molex 1053141604	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	4	2.5 mm	0.098 in	3.2 mm		-40 °C	125 °C	2	250 VDC	59 Áin	1.5 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square		Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm	UL94 V-0	0.126 in	Varies by Wire Gauge

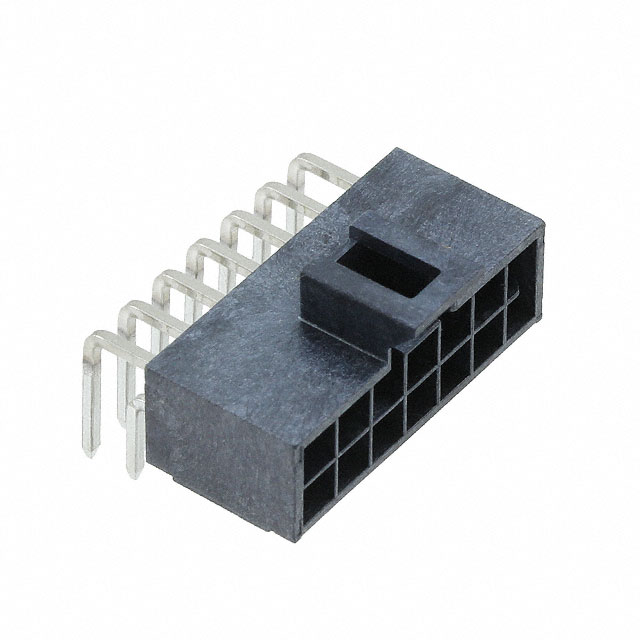

Molex 1053141214	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	14	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	105 ░C	2	250 VDC	15 µin	0.38 µm	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm
Molex 1053141212	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	12	2.5 mm	0.098 in	3.5 mm	0.138 in	-40 °C	125 °C	2	250 VDC	15 µin	0.38 µm	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm			Varies by Wire Gauge
Molex 1053142806	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	6	2.5 mm	0.098 in	3.2 mm		-40 °C	125 °C	2	250 VDC	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Natural	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm	UL94 V-0	0.126 in	Varies by Wire Gauge
Molex 1053141508	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	8	2.5 mm	0.098 in	3.2 mm		-40 °C	125 °C	2	250 VDC	59 Áin	1.5 Ám	Automotive General Purpose Industrial Medical Military Telecommunications	Black	All	6.28 mm	0.247 in	Through Hole Right Angle	Square		Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm	UL94 V-0	0.126 in	Varies by Wire Gauge
Molex 1053142708	Liquid Crystal Polymer (LCP)	Solder	Tin	1.5 µm	59 µin	8	2.5 mm	0.098 in	3.2 mm		-40 °C	105 ░C	2	250 VAC	15 µin	0.38 µm		Natural	All	6.28 mm	0.247 in	Through Hole Right Angle	Square	Gold	Header	Board Guide	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Male Pin	Latch Holder	0.098 in	2.5 mm	UL94 V-0	0.126 in	Varies by Wire Gauge
