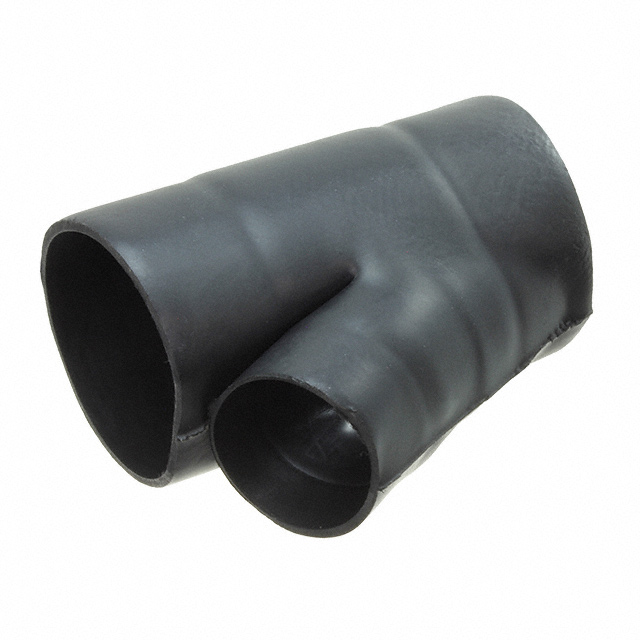

322A434 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
STD POLY MOLDED PARTS
| Part | Large Diameter Supplied [diameter] | Large Diameter Supplied [diameter] | Material | Large Diameter Recovered [diameter] | Large Diameter Recovered [diameter] | Total Length Recovered | Total Length Recovered | Large Recovered Length | Large Recovered Length | Small Recovered Length | Small Recovered Length | Small Diameter Supplied [diameter] | Small Diameter Supplied [diameter] | Type | Shell Size - Insert | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 30.4 mm | 1.197 in | Polyolefin (PO) Semi-Rigid | 0.602 in | 15.29 mm | 82.6 mm | 3.252 " | 1.618 in | 41.1 mm | 1.5 " | 38.1 mm | 20.3 mm | 0.799 in | Boot Transition - Side Breakout 90° | ||
 TE Connectivity Aerospace, Defense and Marine | 35.99 mm | 1.417 in | Elastomer | 0.843 in | 21.41 mm | 82.6 mm | 3.252 " | 1.618 in | 41.1 mm | 1.5 " | 38.1 mm | 20.3 mm | 0.799 in | Boot Transition - Side Breakout 90° | 34 | Black |
